KT Series

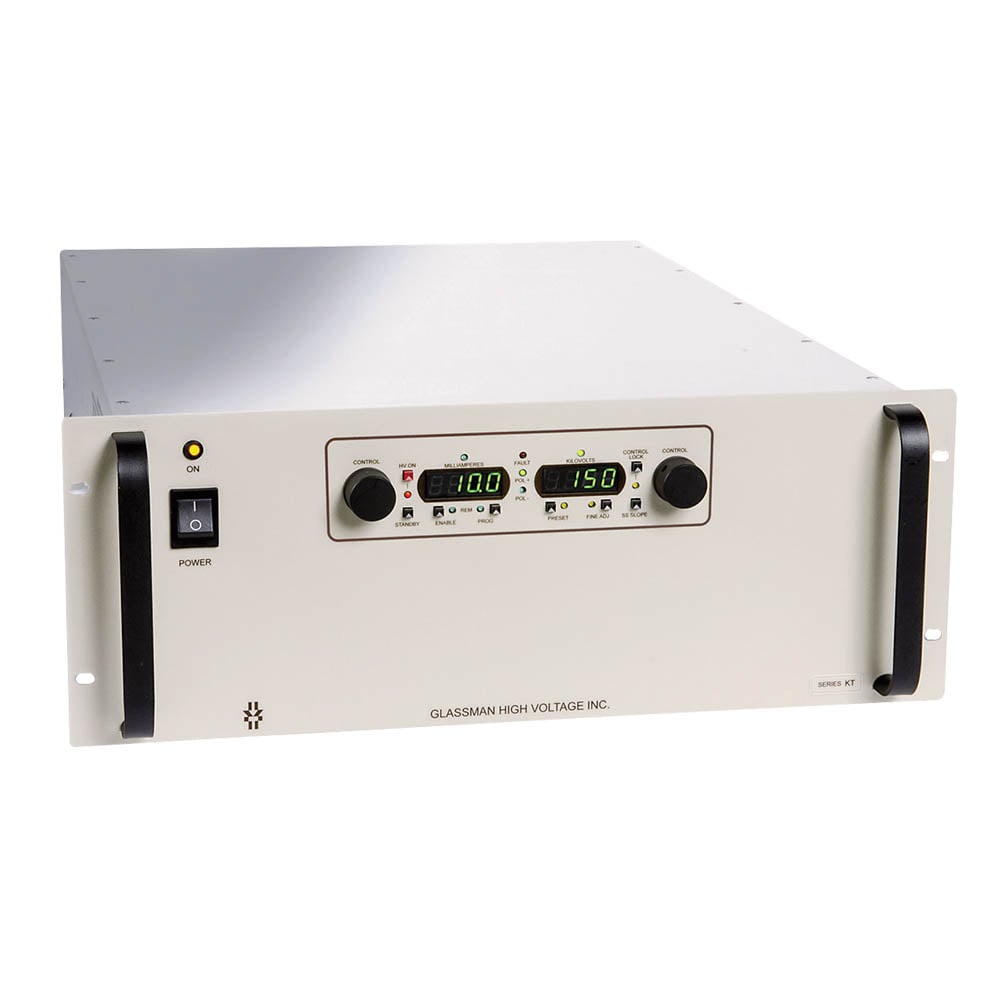

2kW regulated high voltage AC-DC power supplies with outputs from 0 - 70kV to 0 - 150kV DC

The 2000W KT series is a high quality, high performance, high reliability & high stability high voltage power supply with low ripple & noise. Air insulation reduces weight and facilitates a lower cost of ownership.

A variety of output control options, input voltages and low output discharge currents, makes integrating this power supply into a new system or tool simple.

It has been designed for electrical design engineers & system integration engineers in a wide range of industries including ion implant, electron-beam welding & electron-beam additive manufacturing & many other application specific markets who are challenged with limited high voltage integration experience & tight timelines.

Datasheet Contact us

Features

  • Output voltages 0-70kVDC to 0-150kVDC

  • 4U 19" rack mount

  • 0 to 100% programmable voltage & current

  • Local, analog, RS232/USB digital control, Ethernet is optional

  • Output voltage & current regulated

  • Low ripple <0.05% RMS of rated voltage at full load

  • Voltage & current monitor outputs

  • Single phase AC input

  • Efficiency >84%

  • Air Insulated

  • Short circuit, arc & overload protection

  • CE marked for EMC, low voltage (LVD) & RoHS directives

  • Operating temperature: -20°C to +40°C

  • 3 year warranty

Image Model Name Power Output Voltage Output Current Package Size Datasheet RFQ
KT070N29 KT070N29 2kW 0 to -70kV 0.029A 4U Datasheet RFQ
KT070P29 KT070P29 2kW 0 to 70kV 0.029A 4U Datasheet RFQ
KT070R29 KT070R29 2kW 0 to 70kV 0.029A 4U Datasheet RFQ
KT080N25 KT080N25 2kW 0 to -80kV 0.025A 4U Datasheet RFQ
KT080P25 KT080P25 2kW 0 to 80kV 0.025A 4U Datasheet RFQ
KT080R25 KT080R25 2kW 0 to 80kV 0.025A 4U Datasheet RFQ
KT100N20 KT100N20 2kW 0 to -100kV 0.02A 4U Datasheet RFQ
KT100P20 KT100P20 2kW 0 to 100kV 0.02A 4U Datasheet RFQ
KT100R20 KT100R20 2kW 0 to 100kV 0.02A 4U Datasheet RFQ
KT125N12 KT125N12 2kW 0 to -125kV 0.012A 4U Datasheet RFQ
KT125P12 KT125P12 2kW 0 to 125kV 0.012A 4U Datasheet RFQ
KT125R12 KT125R12 2kW 0 to 125kV 0.012A 4U Datasheet RFQ
KT150N10 KT150N10 2kW 0 to -150kV 0.01A 4U Datasheet RFQ
KT150P10 KT150P10 2kW 0 to 150kV 0.01A 4U Datasheet RFQ
KT150R10 KT150R10 2kW 0 to 150kV 0.01A 4U Datasheet RFQ
