DC-DC Converters

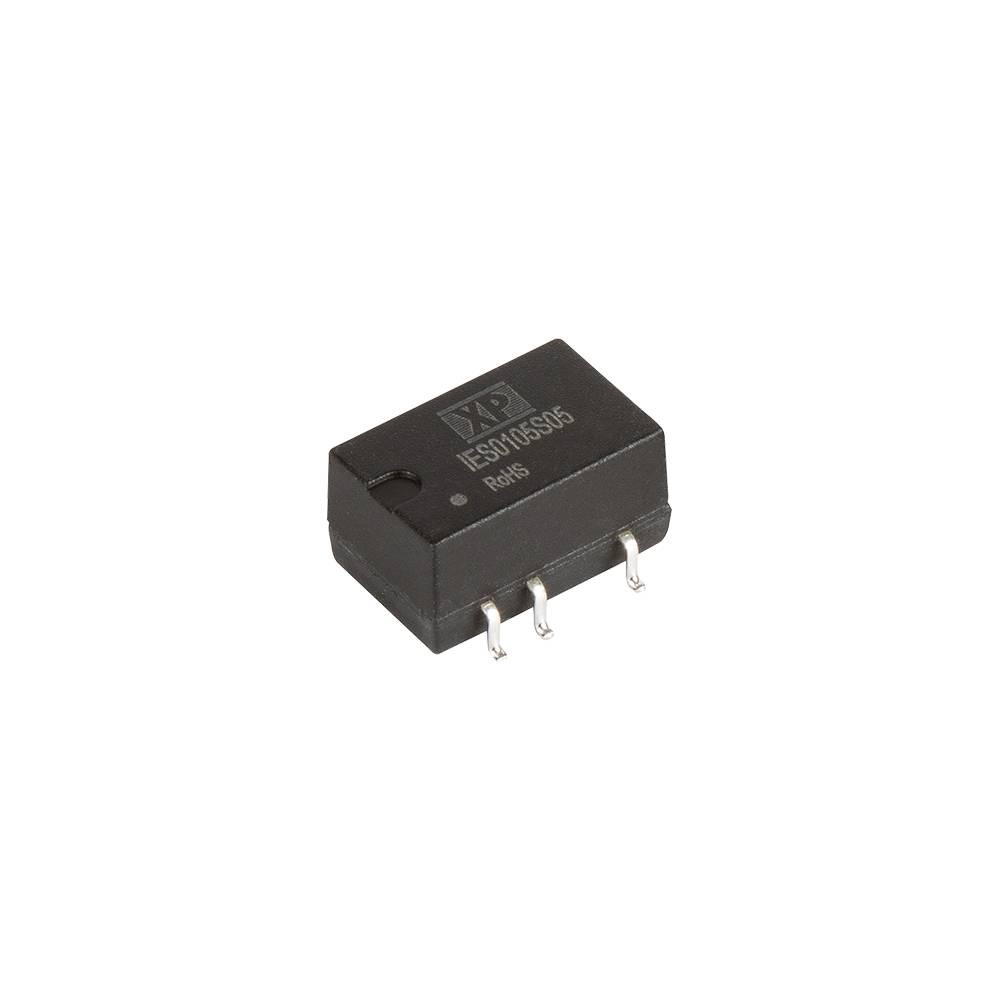

IES01 Series
- Single unregulated output
- ±10% input range SIP7 package
- SMD DIP8 package
- 1.5kVDC isolation, 3kVDC option
- Industry standard pinout
- UL62368-1 safety approvals
- Continuous short circuit protection
- Tape & reel package available
- Operating temperature -40°C to +105°C
- Full load to 100°C
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
|
IES0105S03 | 1 W | 4.5 to 5.5 VDC | 3.3V | 0.303A |
|
|
|
|
|
IES0105S05 | 1 W | 4.5 to 5.5 VDC | 5V | 0.2A |
|
|
|
|
|
IES0105S06 | 1 W | 4.5 to 5.5 VDC | 6V | 0.167A |
|
|
|
|
|
IES0105S09 | 1 W | 4.5 to 5.5 VDC | 9V | 0.111A |
|
|
|
|
|
IES0105S12 | 1 W | 4.5 to 5.5 VDC | 12V | 0.084A |
|
|
|
|
|
IES0105S15 | 1 W | 4.5 to 5.5 VDC | 15V | 0.067A |
|
|
|
|
|
IES0105S24 | 1 W | 4.5 to 5.5 VDC | 24V | 0.042A |
|
|
|
Specifications
Dimensions
IMB01: 0.87 x 0.49 x 0.30 in (22.0 x 12.5 x 7.5 mm)
Input Voltage
4.5 to 5.5VDC (5 V nominal), 10.8 to 13.2VDC (12 V nominal), 21.6 to 26.4VDC (24 V nominal)
Efficiency
80%
Operating Temperature
-40 to +105°C (Derate linearly from 100% load at +85 °C to 0% at
Isolation
Input to Output 4000VAC (60s reinforced, 300 Vrms 2 x MOPP)
Worldwide Safety Approvals
IEC/EN60601-1
European Safety Approvals
EN60601-1
US Safety Approvals
ANSI/AMMI ES60601-1, 2 x MOPP, UL62368-1
Other Safety Approvals
CAN/CSA-C22.2 No.60601-1
EMC
Conducted & Radiated: EN55011, Class A (see datasheet)
