HDS800 Series

AC-DC Power Supplies

HDS800 Series

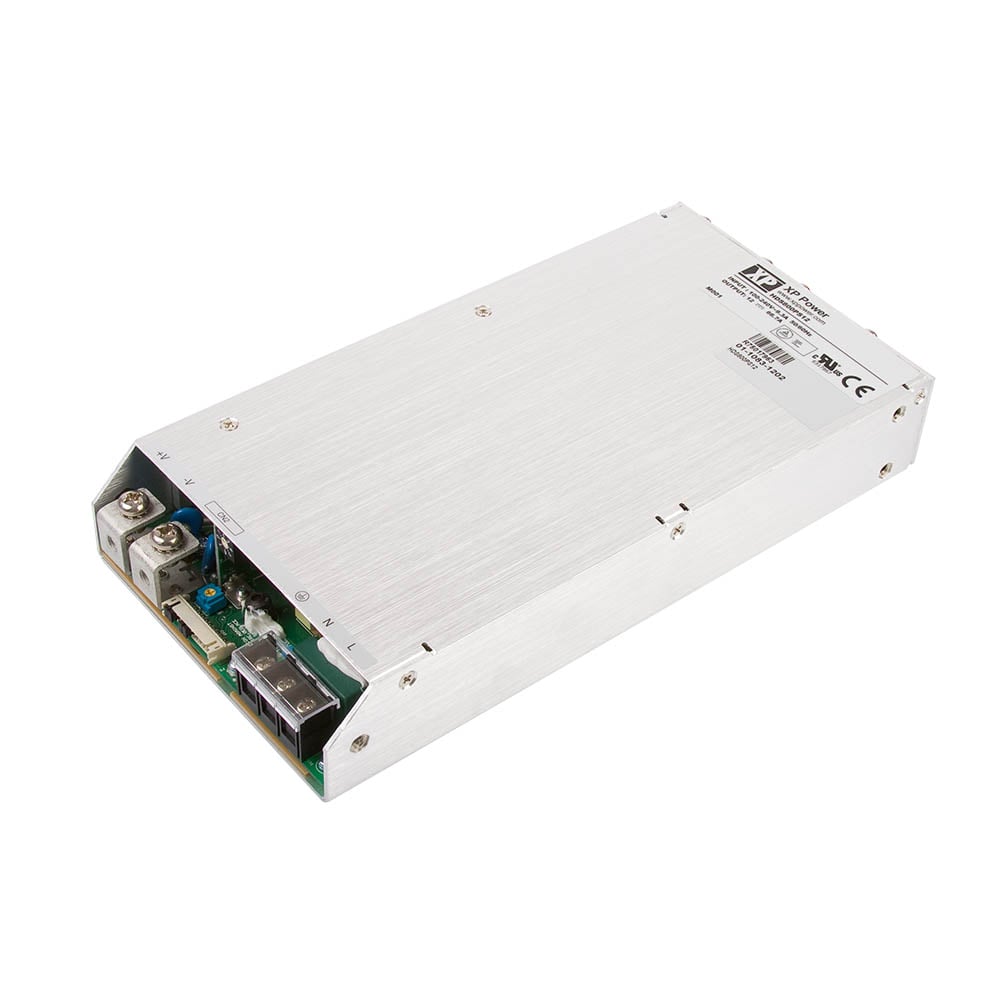

800W AC-DC power supplies provide 12 to 60VDC with voltage and current programming

The HDS800 series offers users both output voltage and output current programming (0 – 105%) via resistance, voltage or I²C bus in a very high efficiency, high power density 800W chassis mount package.

Measuring just 9.8” x 1.6” x 5.0”, the HDS800 also features active current sharing, remote On/Off, remote sense and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5V at 0.5A or 9V at 0.3A.



datasheet Contact us

Features

  • 800W fan cooled
  • 9.8” x 5” footprint, 1.61” profile
  • Regulated single outputs 12 to 60VDC
  • Input range 90 to 264VAC
  • High efficiency up to 92%
  • High power density
  • Programmable output voltage (0-105%)
  • Programmable output current (0-105%)
  • Parallel operation
  • Fully featured signals & controls
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
HDS800 HDS800PS12 800 W Single Phase 12V 66.7A
HDS800 HDS800PS15 800 W Single Phase 15V 53.4A
HDS800 HDS800PS24 800 W Single Phase 24V 33.5A
HDS800 HDS800PS30 800 W Single Phase 30V 26.7A
HDS800 HDS800PS36 800 W Single Phase 36V 22.3A
HDS800 HDS800PS48 800 W Single Phase 48V 16.7A
HDS800 HDS800PS60 800 W Single Phase 60V 13.4A

Specifications


Dimensions

HDS800: 9.80 x 5.00 x 1.61 in (249.0 x 127.0 x 40.9 mm)

Input Voltage

90-264 VAC (127-370 VDC)

Harmonic Currents

EN61000-3-2 Class A

Efficiency

89-92%

Operating Temperature

-20 °C to 70 °C, derate linearly from 100% load at 50 °C to 50% load at 70 °C

Isolation

3000 VAC Input to Output 1500 VAC Input to Ground 500 VAC Output to Ground

Worldwide Safety Approvals

IEC62368-1:2014

European Safety Approvals

EN62368-1

US Safety Approvals

UL62368-1, CSA C22.2 No 62368-1-14

Other Safety Approvals

CE (Meets all applicable directives), UKCA (Meets all applicable legislation)

EMC

EN55032 class A conducted & radiated
