AC-DC Power Supplies

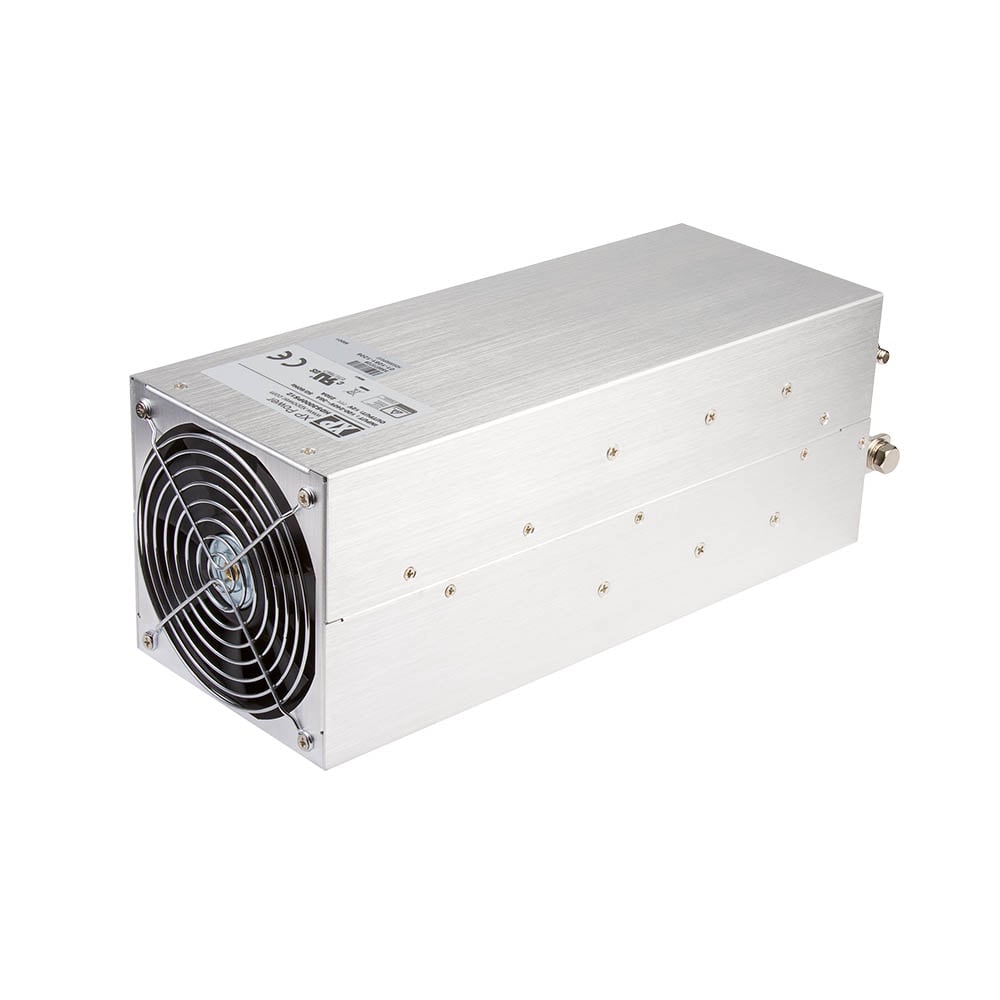

HDS3000 Series
3.0kW AC-DC power supplies provide 12 to 60VDC with voltage and current programming
The HDS3000 series offers users both output voltage and output current programming (0 – 105%) via resistance, voltage or I²C bus in a very high efficiency, high power density 3kW chassis mount package. Measuring just 5” x 5” x 14.41”, the HDS3000 also features active current sharing, remote On/Off, remote sense and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5V at 0.5A or 9V at 0.3A.
datasheet Contact us
Features
- 3.0kW fan cooled
- 14.41” x 5” footprint, 5” profile
- Nominal single outputs 12/15/24/36/48/60VDC
- Input range 90 to 264VAC
- High efficiency up to 93%
- High power density
- Programmable output voltage (0-105%)
- Programmable output current (0-105%)
- Parallel operation
- Fully featured signals & controls
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
HDS3000PS12 | 3000 W | Single Phase | 12V | 250A |
|
|
|
|
|
HDS3000PS15 | 3000 W | Single Phase | 15V | 200A |
|
|
|
|
|
HDS3000PS24 | 3000 W | Single Phase | 24V | 125A |
|
|
|
|
|
HDS3000PS30 | 3000 W | Single Phase | 30V | 100A |
|
|
|
|
|
HDS3000PS36 | 3000 W | Single Phase | 36V | 83.5A |
|
|
|
|
|
HDS3000PS48 | 3000 W | Single Phase | 48V | 62.5A |
|
|
|
|
|
HDS3000PS60 | 3000 W | Single Phase | 60V | 50A |
|
|
|
Specifications
Dimensions
HDS3000: 14.41 x 5.00 x 5.00 in (366.0 x 127.0 x 127.0 mm)
Input Voltage
90-264 VAC (see datasheet)
Harmonic Currents
EN61000-3-2 Class A
Efficiency
89-93%
Operating Temperature
-25 °C to 60 °C, derate linearly from 100% load at 50 °C to 60% load at 60 °C
Isolation
3000 VAC Input to Output 1500 VAC Input to Ground 500 VAC Output to Ground
Worldwide Safety Approvals
IEC60950-1:2005 Ed 2 / IEC62368-1:2014
European Safety Approvals
EN62368-1: 2014/A11: 2017
US Safety Approvals
UL62368-1, CAN/CSA C22.2 No.62368-1-14
Other Safety Approvals
CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
EMC
EN55032 class A conducted & radiated
