1A - 20A
Chassis mount filter
Single stage
Compact design
Medical version
Voltage range 0 to 250VAC
Current rating 1, 3, 6, 10, 15 & 20A
6.3 x 0.8mm Faston terminals
Bleed resistor
Shielded metal body
Wide operating temperature range
3 year warranty

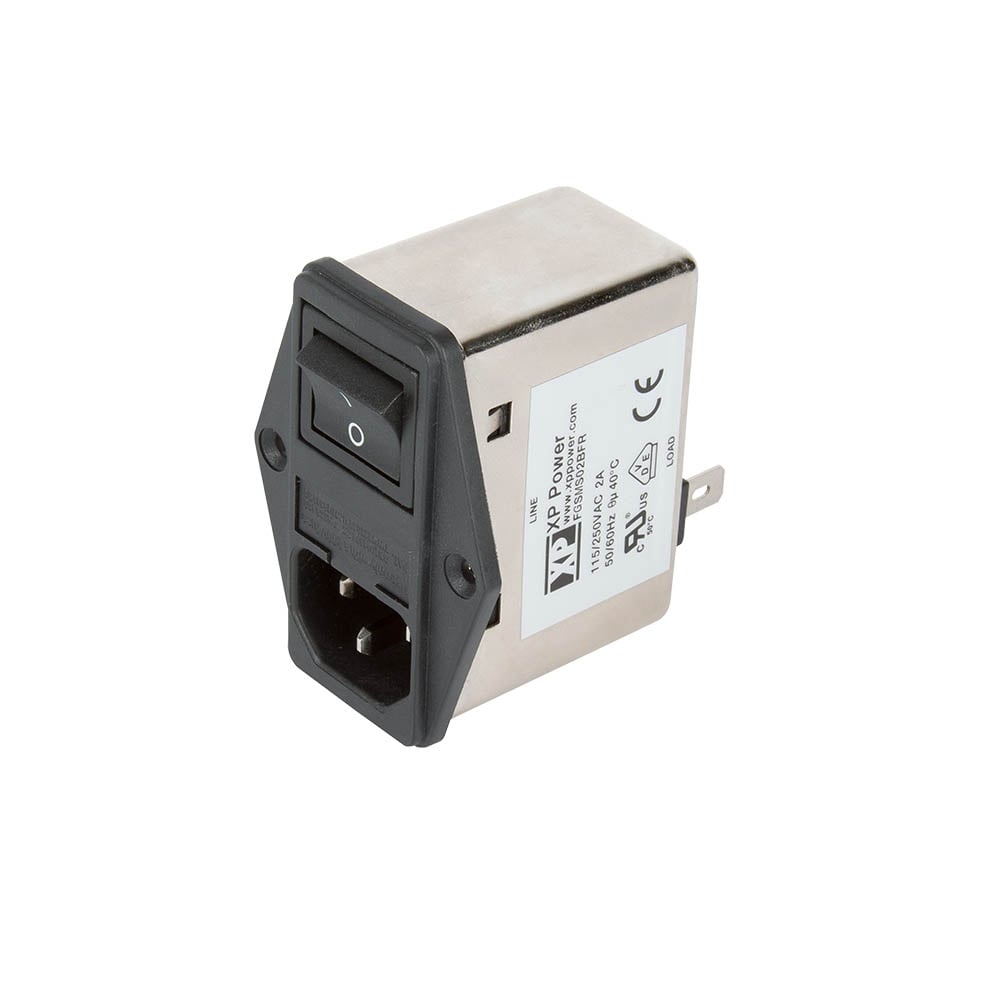

Switched IEC inlet with line filter & single fuse holder for medical equipment applications
Combining a double pole switch, front accessible (when the mains connector is disconnected) dual fuse holder and a low earth leakage filtered IEC320-C14 inlet in a compact single housing, the FGSM is designed for medical applications.
When fitted to mains powered equipment, they provide excellent attenuation to conducted electro-magnetic interference from the mains supply, whilst reducing any conducted emissions from within the equipment onto the mains supply.
Suitable for class I appliances, all models feature a shielded metal body, and are fitted with a bleed resistor to safely discharge the filter capacitors when power is disconnected.
IEC320-C14 filtered inlet
Dual fuse
Input switch
Screw mount
Compact design
Medical application
Voltage range 0 to 250VAC
Current rating 1, 2, 4, 6 & 10A
6.3 x 0.8mm faston terminals
Bleed resistor
Shielded metal body
Wide operating temperature range
3 year warranty
| Model number | Rated current | Rated voltage | Mounting | Filter stages | Actions |
|---|---|---|---|---|---|
| 1A | 0 - 250VAC | Panel Mount | Single | ||
| 2A | 0 - 250VAC | Panel Mount | Single | ||
| 4A | 0 - 250VAC | Panel Mount | Single | ||
| 6A | 0 - 250VAC | Panel Mount | Single | ||
| 10A | 0 - 250VAC | Panel Mount | Single |
