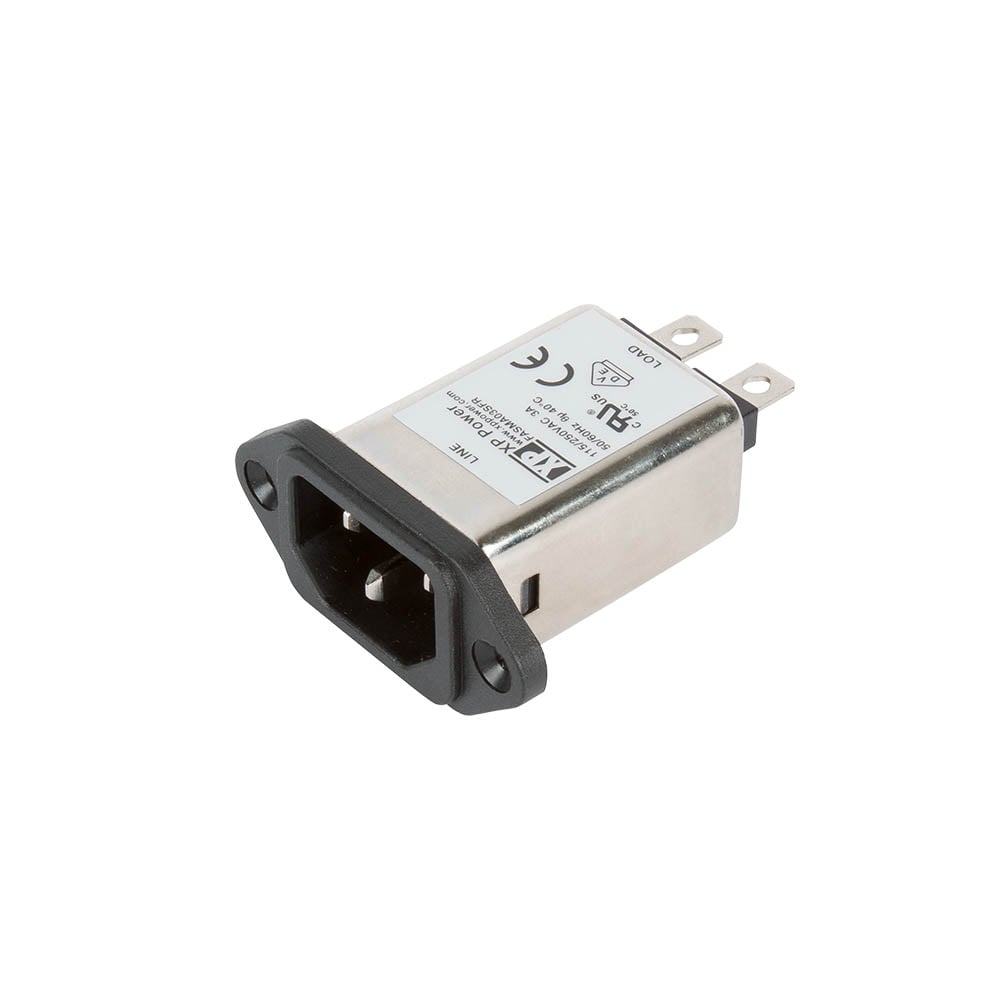

FASM Series

IEC inlet with line filter for medical equipment applications

The FASM combines an EMI filter with an IEC320-C14 inlet, to provide excellent attenuation in a compact module. It has a low earth leakage of 5µA @250VAC for medical equipment applications.

When fitted to mains powered equipment, they provide excellent attenuation to conducted electro-magnetic interference from the mains supply, whilst reducing any conducted emissions from within the equipment onto the mains supply.

Features

  • IEC320-C14 filtered inlet
  • Screw mount
  • Compact design
  • Medical version
  • 1, 3, 6 & 10A rating
  • 6.3 x 0.8mm faston terminals
  • Bleed resistor
  • Shielded metal body
  • Wide operating temperature range
  • 3 year warranty
Image Model Name Rated Current Rated Voltage Mounting Filter Stages Datasheet Stock Check RFQ
FASMA01SFR 1 0 - 264VAC Panel Mount Single Datasheet Stock RFQ
FASMA03SFR 3 0 - 264VAC Panel Mount Single Datasheet Stock RFQ
FASMA06SFR 6 0 - 264VAC Panel Mount Single Datasheet Stock RFQ
FASMA10SFR 10 0 - 264VAC Panel Mount Single Datasheet Stock RFQ
