CH Series

RF Power

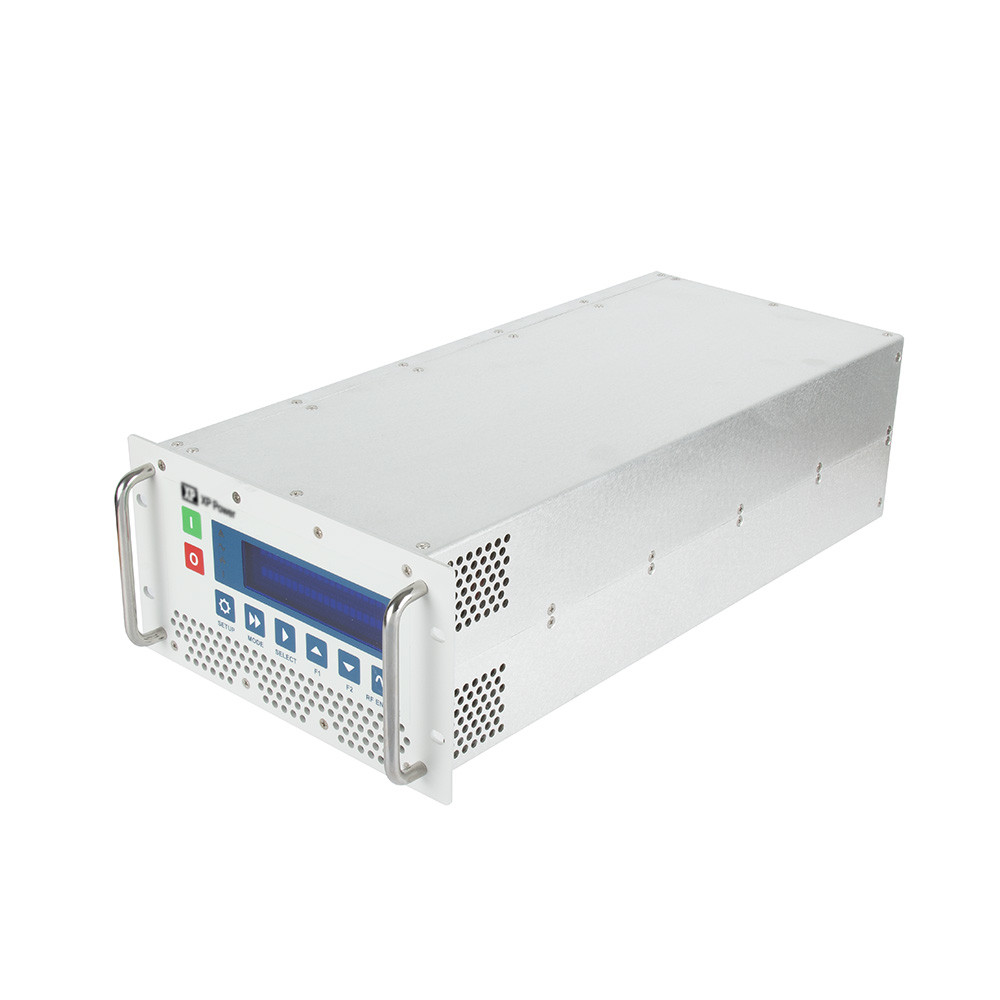

CH Series

  • Modular design – 3U Half Rack
  • Regulated switch-mode DC Section
  • Class C amplifier or Class D amplifier
  • Available 400kHz, 2MHz, 13.56MHz, 27.12MHz, 40.68MHz,or 60MHz
  • Up to 1500W output - water-cooled
  • Available 208/400/480VAC
  • DeviceNet, EtherCAT, RS232
  • Frequency Agile
  • Pulse capability
Contact us
Model Name Mains (VAC) Frequency Datasheet RFQ
CH CH 208 / 400 / 480 VAC (3-Phase) 0.4 to 60 MHz

Specifications


Dimensions

8.5"W x 5.25"H x 18"D ( 21.6cm x 13.4cm x 45.7cm)

Input Voltage

187-230VAC, 400, or 480VAC; no neutral; 3 phase with ground (1 phase available in some configurations)

Operating Temperature

+10 to +40 ° C (50 to 104 ° F) ambient, 5-85% R.H. (non-condensing, no formation of ice), 86-106 kPa. Temperature, humidity and air pressure operating range class 3K3 per prEN50178.

Isolation

1000 VDC minimum to the A/C supply line.

EMC

This unit is designed to meet the safety compliance requirements of EN 61010-1:2010, UL 61010-1:2012, and CSA C22.2 No. 61010-1:2012. Certified compliant systems carry the TUV mark for safety and/or EMC to all appropriate latest international standards.
