AEK40 Series

AC-DC Power Supplies

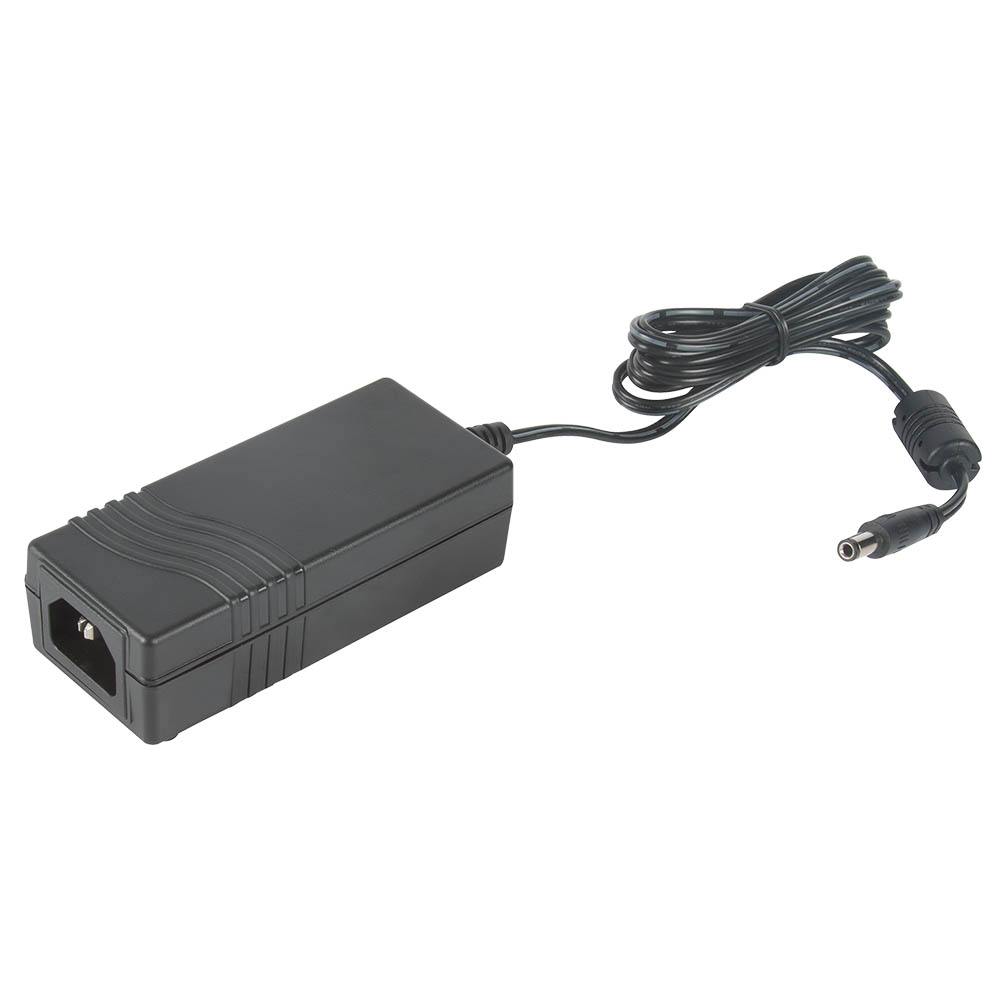

AEK40 Series

40W desktop AC-DC power supplies with ITE approvals

The AEK40 series desktop supplies are an Energy Efficiency Level VI and CoC Tier 2, they have a standby output power of less than 0.075W and an average efficiency of 86-88%. These 40W power supplies have output voltages of 5V (25W), 12V, 15V, 24V & 48VDC. The AEK40 operates from 0°C to +60°C with derating above +40°C. In addition, they meet Level B limits for radiated and conducted EMC and have safety approvals per EN/IEC/UL 60950-1 standards, making them suitable for an array of industrial electronics & ITE applications.



datasheet Contact us

Features

  • Energy Efficiency Level VI
  • European CoC Tier 2
  • Universal Input
  • <0.075W Standby Power
  • Single Outputs 5 to 48VDC
  • 0°C to +60°C Operation
  • 3 Year Warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
AEK40 AEK40US05 40 W Single Phase 5V 5A
AEK40 AEK40US12 40 W Single Phase 12V 3.33A
AEK40 AEK40US15 40 W Single Phase 15V 2.67A
AEK40 AEK40US24 40 W Single Phase 24V 2.08A
AEK40 AEK40US48 40 W Single Phase 48V 1.04A

Specifications


Dimensions

AEK40: 4.21 x 1.85 x 1.19‚ (107.0 x 47.0 x 30.1 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

75 mW (150 mW for 24 V and 48 V models)

Harmonic Currents

EN61000-3-2, Class A

Efficiency

88% (See Models and Ratings table and curves)

Operating Temperature

0 to +60 °C, Derate from 100% load at 40 °C to 67% load at 60 °C

Isolation

Input to Ground: 1500 VAC Input to Output: 3000 VAC Output to Ground: 500 VDC

European Safety Approvals

EN62368-1

US Safety Approvals

UL62368-1

Other Safety Approvals

AU/NZ 60950.1, CE & UKCA meets all applicable directives & legislation.

EMC

EN55032, Level B, Conducted & Radiated
