AC-DC Power Supplies
VER05 Series

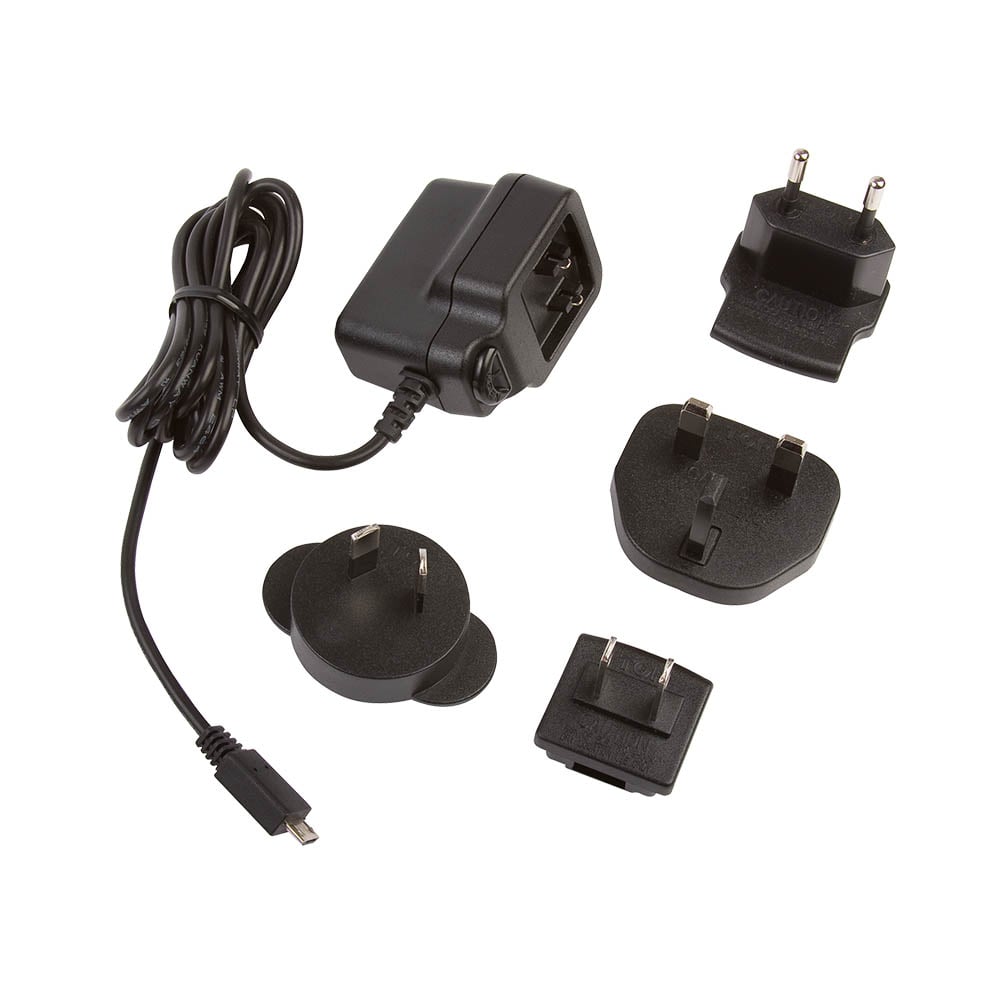

5W plugtop AC-DC power supplies with ITE approvals, supplied complete with interchangeable US, UK, EU & AU plugs
The VER05 series of 5W class II wall plug adaptors comply with energy efficiency VI standards, have high active mode efficiency, low no load power consumption and are limited power source (LPS) approved.
Supplied complete with interchangeable US, UK, EU & AU mains plugs, the DC output has multiple USB options in addition to the standard barrel jack plug connector, these adaptors suit a wide variety of cost sensitive applications while maintaining industry leading performance.
datasheet Contact us
Features
- Energy efficiency level VI
- Barrel jack & USB versions
- Interchangeable mains connectors included
- Universal input
- Output voltages from 5.0V to 12.0VDC
- Class II construction
- Limited power source (LPS) approved
- Low cost
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
VER05US050-BB | 5 W | Single Phase | 5V | 1A |
|
|
|
|
|
VER05US050-MB | 5 W | Single Phase | 5V | 1A |
|
|
|
|
|
VER05US050-UB | 5 W | Single Phase | 5V | 1A |
|
|
|
|
|
VER05US050-JA | 5 W | Single Phase | 5V | 1A |
|
|
|
|
|
VER05US060-JA | 5 W | Single Phase | 6V | 0.83A |
|
|
|
|
|
VER05US090-JA | 5 W | Single Phase | 9V | 0.55A |
|
|
|
|
|
VER05US120-JA | 5 W | Single Phase | 12V | 0.42A |
|
|
|
Specifications
Dimensions
VER05: 1.45 x 2.16 x 1.69 in (37.0 x 55.1 x 42.9 mm)
Input Voltage
90-264 VAC
No Load Input Power
<0.1 W
Harmonic Currents
EN61000-3-2, class A
Efficiency
74-79%
Operating Temperature
0 °C to +70 °C, derate from 100% load at 50 °C to 50% load at 60 °C
Isolation
3000 VAC Input to Output
Worldwide Safety Approvals
IEC60950-1, IEC62368-1
European Safety Approvals
EN60950-1, EN62368-1
US Safety Approvals
UL/cUL60950-1, CCC and AU/NZ
Other Safety Approvals
Approved as Limited Power Source
EMC
EN55022, class B conducted & radiated
