DC-DC Converters
SVR05 Series

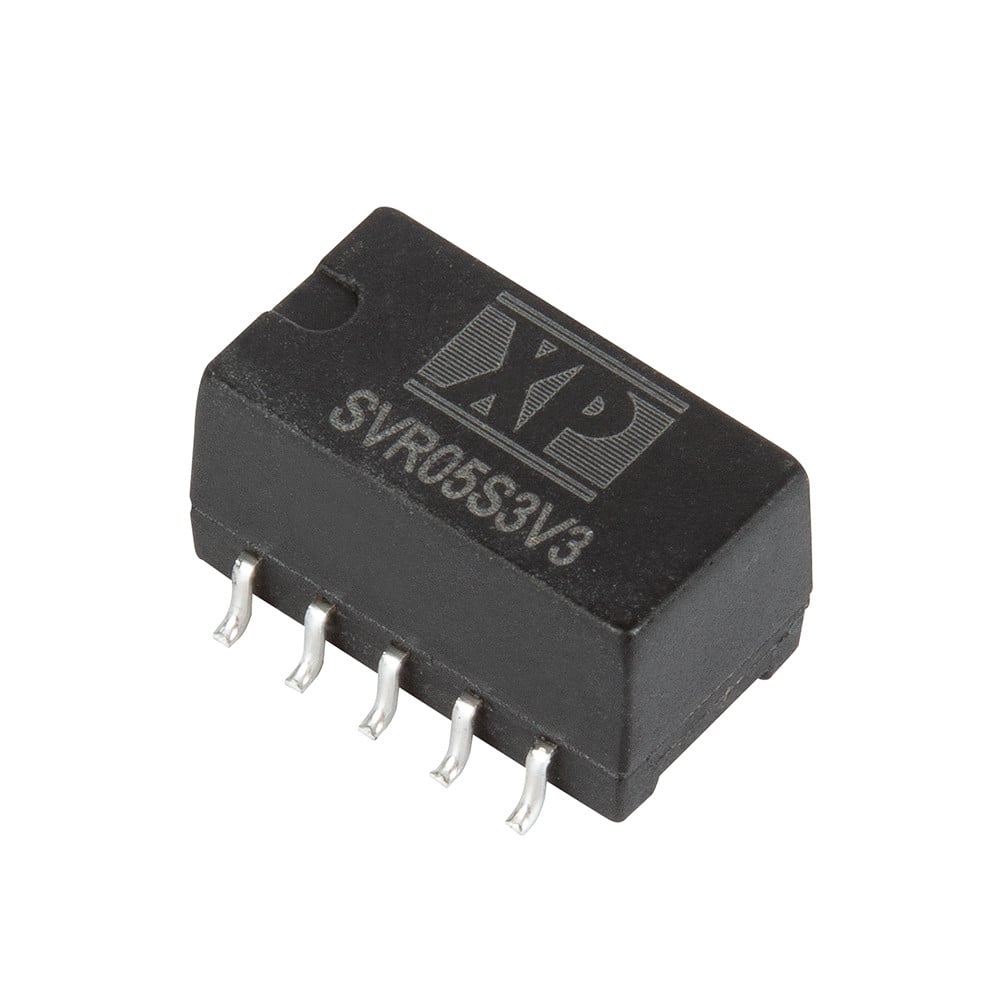

Low Cost Surface Mount 0.5A SVR Series SMD10 Switching Regulators
The 0.5A SVR05 switching regulators provide a competitive, low-cost, non-isolated point of load (POL) solution without compromising on quality and performance. An industry standard pin-out enables easy substitution for competitors’ products. They are a compact, cost-effective means of step-down voltage conversion in all sorts of ITE & industrial electronic equipment, for instance: Portable & battery-operated equipment; Sensors; Robotics; Telecommunications; Instrumentation; Embedded computing; Distributed DC supply systems requiring regulation but not needing isolation.
datasheet Contact usFeatures
- Non-isolated 0.5A switching regulator
- Regulated single outputs 1.5 to 15VDC
- Input range up to 36VDC
- ±10% output trim
- SMD10 package
- Remote On/Off
- Low 100μA standby current
- Efficiency to 95%
- Class B conducted & radiated emissions
- -40°C to +85°C operating temperature
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
SVR05S1V5 | 0.75 W | 4.75 to 28 VDC | 1.5V | 0.5A |
|
|
|
|
|
SVR05S1V8 | 0.9 W | 4.75 to 28 VDC | 1.8V | 0.5A |
|
|
|
|
|
SVR05S2V5 | 1.25 W | 4.75 to 32 VDC | 2.5V | 0.5A |
|
|
|
|
|
SVR05S3V3 | 1.65 W | 4.75 to 36 VDC | 3.3V | 0.5A |
|
|
|
|
|
SVR05S05 | 2.5 W | 6.5 to 36 VDC | 5V | 0.5A |
|
|
|
|
|
SVR05S6V5 | 3.25 W | 8 to 36 VDC | 6.5V | 0.5A |
|
|
|
|
|
SVR05S09 | 4.5 W | 12 to 36 VDC | 9V | 0.5A |
|
|
|
|
|
SVR05S12 | 6 W | 15 to 36 VDC | 12V | 0.5A |
|
|
|
|
|
SVR05S15 | 7.5 W | 19 to 36 VDC | 15V | 0.5A |
|
|
|
Specifications
Dimensions
0.457 x 0.401 x 0.297 in (11.6 x 10.16 x 7.55 mm)
Input Voltage
4.75 to 36 VDC
Efficiency
Up to 95%
Operating Temperature
-40 °C to +85 °C. See Datasheet
Isolation
Non-isolated
Other Safety Approvals
CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
EMC
EN55032 Class B conducted & radiated
