DC-DC Converters
RDC30 Series
- 72 & 110 VDC Input for Railway Applications
- Single, Dual and Triple Outputs
- 1500 VAC Basic Isolation
- High Power Density
- High Efficiency - Up to 91%
- Remote On/Off
- 3 Year Warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
|
RDC3072S3V3 | 30 W | 36 to 140 VDC | 3.3V | 7.5A |
|
|
|
|
|
RDC3072S05 | 30 W | 36 to 140 VDC | 5V | 6A |
|
|
|
|
|
RDC3072S12 | 30 W | 36 to 140 VDC | 12V | 2.5A |
|
|
|
|
|
RDC3072S15 | 30 W | 36 to 140 VDC | 15V | 2A |
|
|
|
|
|
RDC3072D05 | 30 W | 36 to 140 VDC | 5V, -5V | 3A, 3A |
|
|
|
|
|
RDC3072D12 | 30 W | 36 to 140 VDC | 12V, -12V | 1.25A, 1.25A |
|
|
|
|
|
RDC3072D15 | 30 W | 36 to 140 VDC | 15V, -15V | 1A, 1A |
|
|
|
|
|
RDC3072T0312 | 30 W | 36 to 140 VDC | 3.3V, 12V, -12V | 5A, 0.42A, 0.42A |
|
|
|
|
|
RDC3072T0315 | 30 W | 36 to 140 VDC | 3.3V, 15V, -15V | 5A, 0.33A, 0.33A |
|
|
|
|
|
RDC3072T0512 | 30 W | 36 to 140 VDC | 5V, 12V, -12V | 4A, 0.42A, 0.42A |
|
|
|
|
|
RDC3072T0515 | 30 W | 36 to 140 VDC | 5V, 15V, -15V | 4A, 0.33A, 0.33A |
|
|
|
|
|
RDC30110S3V3 | 30 W | 55 to 176 VDC | 3.3V | 7.5A |
|
|
|
|
|
RDC30110S05 | 30 W | 55 to 176 VDC | 5V | 6A |
|
|
|
|
|
RDC30110S12 | 30 W | 55 to 176 VDC | 12V | 2.5A |
|
|
|
|
|
RDC30110S15 | 30 W | 55 to 176 VDC | 15V | 2A |
|
|
|
|
|
RDC30110D05 | 30 W | 55 to 176 VDC | 5V, -5V | 3A, 3A |
|
|
|
|
|
RDC30110D12 | 30 W | 55 to 176 VDC | 12V, -12V | 1.25A, 1.25A |
|
|
|
|
|
RDC30110D15 | 30 W | 55 to 176 VDC | 15V, -15V | 1A, 1A |
|
|
|
|
|
RDC30110T0312 | 30 W | 55 to 176 VDC | 3.3V, 12V, -12V | 5A, 0.42A, 0.42A |
|
|
|
|
|
RDC30110T0315 | 30 W | 55 to 176 VDC | 3.3V, 15V, -15V | 5A, 0.33A, 0.33A |
|
|
|
|
|
RDC30110T0512 | 30 W | 55 to 176 VDC | 5V, 12V, -12V | 4A, 0.42A, 0.42A |
|
|
|
|
|
RDC30110T0515 | 30 W | 55 to 176 VDC | 5V, 15V, -15V | 4A, 0.33A, 0.33A |
|
|
|
Specifications
Dimensions

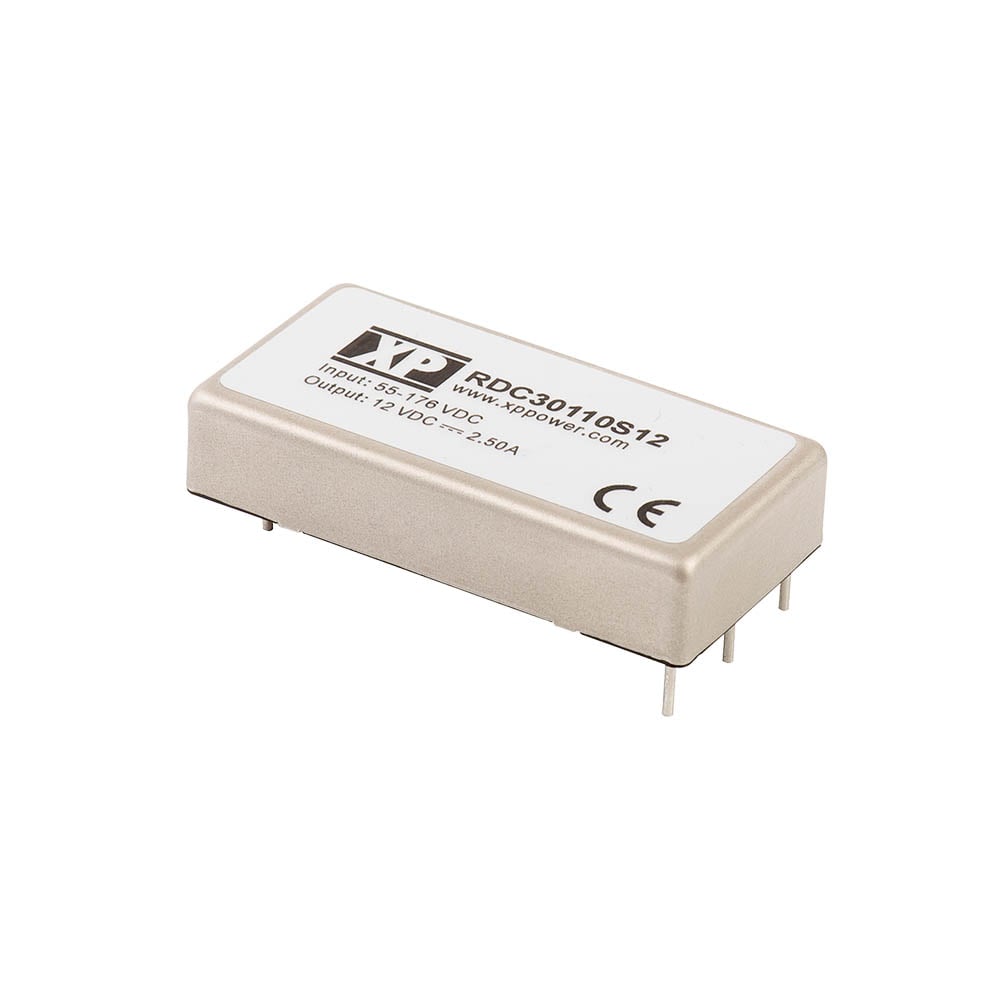

RDC30: 2.00 x 1.00 x 0.40 in (50.8 x 25.4 x 10.16 mm)
Input Voltage
72 V (36-140 VDC), 110 V (55-176 VDC)
Efficiency
87-91%
Operating Temperature
-40 °C to +75 °C (80 °C with optional heatsink)
Isolation
1500 VAC Input to Output 1600 VDC Input to Case 1600 VDC Output to Case
European Safety Approvals
CE LVD tested to EN62368-1
EMC
EN55011, 79 dBµV (0.15-0.5 MHz) 73 dBµV (0.5-30 MHz)
