OS Series
2kW regulated high voltage AC-DC power supplies with outputs from 0 - 200kV to 0 - 450kV DC open stack
The OS family of power supplies are sophisticated 2kW, open stack, power supplies with extremely low ripple and noise. They are air insulated fast response units with tight regulation. Designed to meet the growing demands from both users and electric utilities for switching supplies with excellent input power factors that draw low harmonic currents.

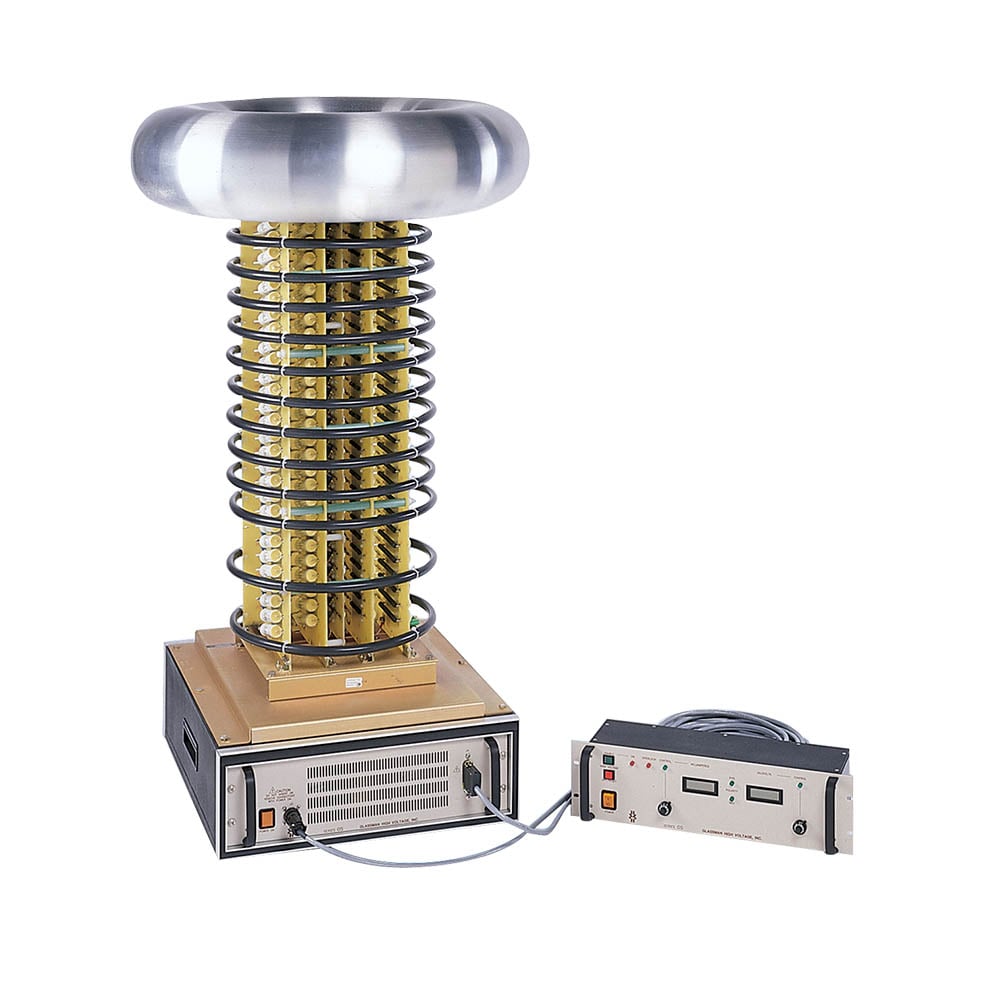

OS series models consist of a rack style driver chassis, a high voltage stack assembly, and a remote control unit. The dimensions of the stack vary with the output voltage rating and are given in the specifications. The rack mountable remote control provides all interface functions and is connected to the driver chassis with the cables provided.
Features
Up to 2kW
0-200kV through 0-450kV
Single phase AC input
Open stack high voltage
Low ripple
Tight regulation
Constant voltage/constant current operation
Arc quench & arc count
Air insulated
3U 19" rack mount remote control panel
3 year warranty
| Image | Model Name | Power | Output Voltage | Output Current | Package Size | Datasheet | RFQ |
|---|---|---|---|---|---|---|---|
|
OS200N10.0 | 2kW | 0 to -200kV | 0.01A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS200P10.0 | 2kW | 0 to 200kV | 0.01A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS200R10.0 | 2kW | 0 to 200kV | 0.01A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS250N08.0 | 2kW | 0 to -250kV | 0.008A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS250P08.0 | 2kW | 0 to 250kV | 0.008A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS250R08.0 | 2kW | 0 to 250kV | 0.008A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS300N06.0 | 2kW | 0 to -300kV | 0.006A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS300P06.0 | 2kW | 0 to 300kV | 0.006A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS300R06.0 | 2kW | 0 to 300kV | 0.006A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS350N04.5 | 2kW | 0 to -350kV | 0.0045A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS350P04.5 | 2kW | 0 to 350kV | 0.0045A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS350R04.5 | 2kW | 0 to 350kV | 0.0045A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS400N03.5 | 2kW | 0 to -400kV | 0.0035A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS400P03.5 | 2kW | 0 to 400kV | 0.0035A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS400R03.5 | 2kW | 0 to 400kV | 0.0035A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS450N03.0 | 2kW | 0 to -450kV | 0.003A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS450P03.0 | 2kW | 0 to 450kV | 0.003A | Open Stack High Voltage | Datasheet | RFQ |
|
|
OS450R03.0 | 2kW | 0 to 450kV | 0.003A | Open Stack High Voltage | Datasheet | RFQ |
