JTK20 Series

4:1 Input, 20W, Regulated, DC-DC Converters in a 1" x 1" Package

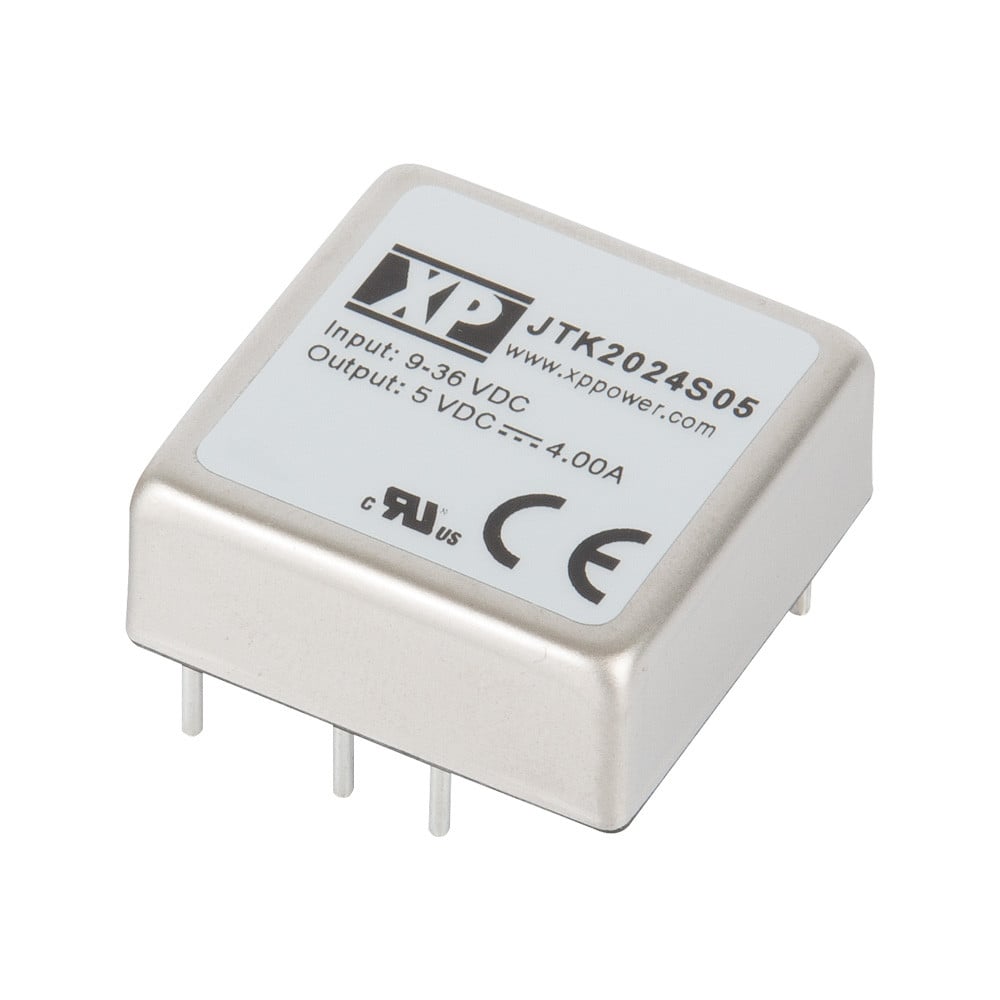

The JTK20 series is housed in a 1" x 1" x 0.39” (25.4 x 25.4 x 9.9 mm) metal case.

Featuring a 4:1 input voltage range of 9 to 36VDC or 18 to 75VDC with both single and dual outputs, singles have 3.3, 5, 12 or 15VDC with duals having either ±12 or ±15VDC. Single output models are adjustable +/-10% with a trim resistor.

The JTK20 provides 1.6kVDC isolation between input and output. Operating temperature range is from -40°C to +100°C, with derating above +55°C. Remote on/off is standard.



datasheet Contact us

Features

  • Regulated single outputs 3.3 to 15VDC
  • Regulated dual outputs ±12 & ±15VDC
  • 4:1 input range
  • 1” x 1” footprint, 0.39" profile
  • Output trim ±10% (single O/P)
  • 1.6kVDC isolation
  • Remote On/Off
  • -40°C to +100°C operating temperature
  • Full power to +55°C
  • 3 year warranty



Image Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
JTK2024D12 20W 9 to 36VDC 12V, -12V 0.833A, -0.833A Datasheet Stock RFQ
JTK2024D15 20W 9 to 36VDC 15V, -15V 0.667A, -0.667A Datasheet Stock RFQ
JTK2024S05 20W 9 to 36VDC 5V 4A Datasheet Stock RFQ
JTK2024S12 20W 9 to 36VDC 12V 1.67A Datasheet Stock RFQ
JTK2024S15 20W 9 to 36VDC 15V 1.33A Datasheet Stock RFQ
JTK2024S3V3 20W 9 to 36VDC 3.3V 4.5A Datasheet Stock RFQ
JTK2048D12 20W 18 to 75VDC 12V, -12V 0.833A, -0.833A Datasheet Stock RFQ
JTK2048D15 20W 18 to 75VDC 15V, -15V 0.667A, -0.667A Datasheet Stock RFQ
JTK2048S05 20W 18 to 75VDC 5V 4A Datasheet Stock RFQ
JTK2048S12 20W 18 to 75VDC 12V 1.67A Datasheet Stock RFQ
JTK2048S15 20W 18 to 75VDC 15V 1.33A Datasheet Stock RFQ
JTK2048S3V3 20W 18 to 75VDC 3.3V 4.5A Datasheet Stock RFQ

Safety

UL Report – JTK20 - UL62368

Environmental Compliance

RoHS Statement
WEEE Statement
REACH Statement

Declarations of Conformity (DofC)

EU Declaration of Conformity – JTK20
UK Declaration of Conformity – JTK20
JTK20 - STEP 3D Model
