DC-DC Converters
JHM15 Series
2:1 input, 15W, regulated, DC-DC converters in a 1.6" x 1" PCB mount package for medical (2 x MOPP) applications

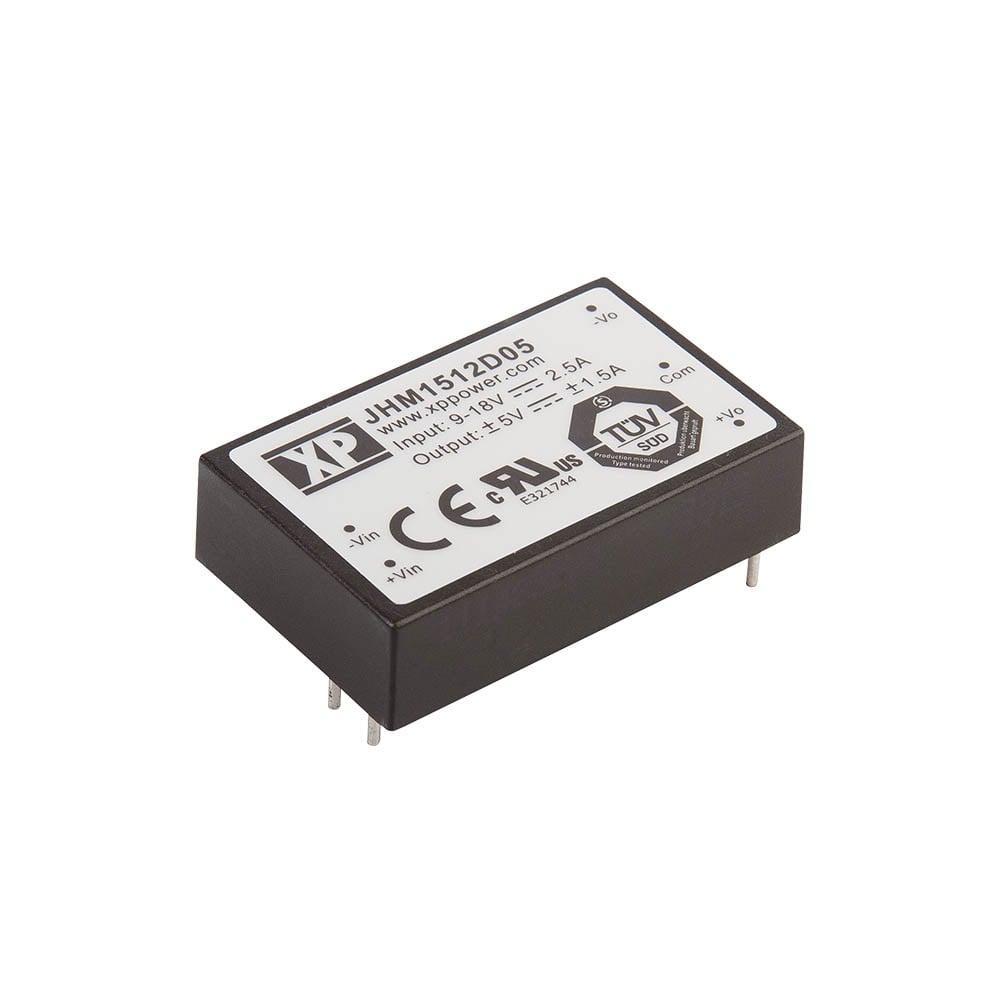

The JHM15 series is designed for medical applications with 2 x MOPP 4kVAC reinforced isolation and 2µA patient leakage current, it is housed in a 1.6"" x 1"" PCB mount plastic case.
Featuring a 2:1 input voltage range of 4.5 to 9VDC, 9 to 18VDC or 18 to 36VDC with regulated single outputs of 5, 12 & 15VDC, dual outputs ±5, ±12 & ±15VDC, adjustable +/-10% with a trim resistor.
Short circuit, overload & over voltage protection are standard. Operating temperature range is from -20°C to +80°C, with derating above +60°C.
datasheet Contact us
Features
- Regulated single & dual outputs
- 2:1 input range
- Single outputs 5.0 to 15VDC
- Dual outputs ±5.0 & ±15VDC
- 1" x 1.6” package
- International medical safety approvals
- 4.0kVAC reinforced isolation
- 2μA patient leakage current
- EN55011 level A with no external components
- -40°C to +80°C operating temperature
- Full power to +60°C
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
JHM1512S05 | 15 W | 9 to 18 VDC | 5V | 3A |
|
|
|
|
|
JHM1512S12 | 15 W | 9 to 18 VDC | 12V | 1.25A |
|
|
|
|
|
JHM1512S15 | 15 W | 9 to 18 VDC | 15V | 1A |
|
|
|
|
|
JHM1512D05 | 15 W | 9 to 18 VDC | 5V, -5V | 1.5A, 1.5A |
|
|
|
|
|
JHM1512D12 | 15 W | 9 to 18 VDC | 12V, -12V | 0.625A, -0.625A |
|
|
|
|
|
JHM1512D15 | 15 W | 9 to 18 VDC | 15V, -15V | 0.5A, -0.5A |
|
|
|
|
|
JHM1524S05 | 15 W | 18 to 36 VDC | 5V | 3A |
|
|
|
|
|
JHM1524S12 | 15 W | 18 to 36 VDC | 12V | 1.25A |
|
|
|
|
|
JHM1524S15 | 15 W | 18 to 36 VDC | 15V | 1A |
|
|
|
|
|
JHM1524D05 | 15 W | 18 to 36 VDC | 5V, -5V | 1.5A, 1.5A |
|
|
|
|
|
JHM1524D12 | 15 W | 18 to 36 VDC | 12V, -12V | 0.625A, -0.625A |
|
|
|
|
|
JHM1524D15 | 15 W | 18 to 36 VDC | 15V, -15V | 0.5A, -0.5A |
|
|
|
Specifications
Dimensions
JHM15: 1.6 x 1.0 x 0.4 in (40.6 x 25.4 x 10.2 mm)
Input Voltage
9.0-18.0 VDC 18.0-36.0 VDC
Efficiency
86% typical
Operating Temperature
-40 °C to +80 °C
Isolation
4000 VAC For 1 min. Double/reinforced with a working voltage of 250 VAC Meets 2 x MOPP per 3rd edition of IEC60601-1 5000 VAC for 10 ms in accordance with IEC60664-1
Worldwide Safety Approvals
IEC60601-1 Ed 3 Including Risk Management
US Safety Approvals
ANSI/AAMI ES60601-1 3rd Ed. & CSA C22.2, No.60601-1:20080
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation
