AC-DC Power Supplies

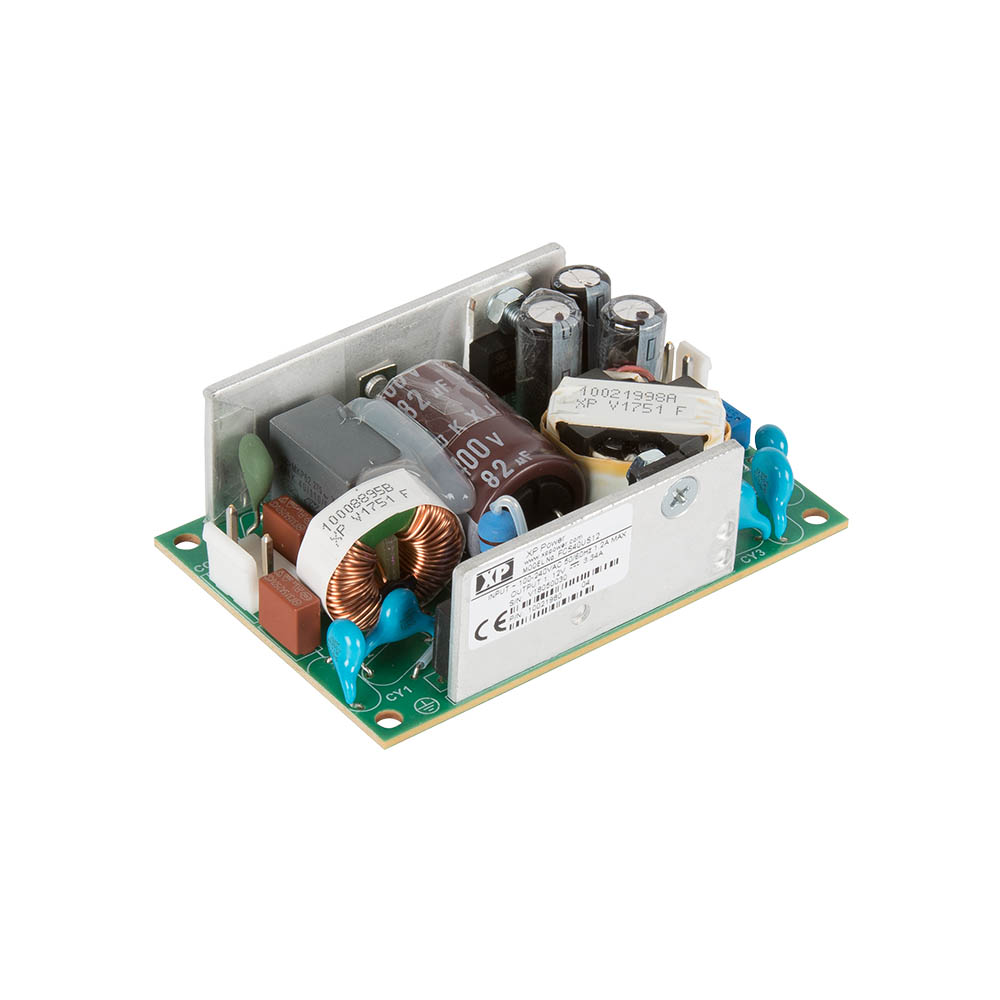

FCS40 Series
3" X 2" open frame 40W AC-DC power supplies for household appliance, medical (2 x MOPP) & ITE applications
The FCS40 low-profile, open-frame power supplies address the need for low-cost 40W solutions that support a broad range of applications within the medical (2 x MOPP), domestic/household and ITE/industrial electronics sectors.
The FCS40 is designed for integration into multiple end equipment markets with international agency approvals, high efficiency and low emissions.
datasheet Contact us
Features
- 40W convection cooled
- 3" x 2" footprint, 1.04” profile
- Regulated single outputs 12V to 48VDC
- Input range 80 to 264VAC
- Medical, ITE and household appliance approvals
- Class I & Class II installations
- Less than 0.3W no load input power
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
FCS40US12 | 40 W | Single Phase | 12V | 3.34A |
|
|
|
|
|
FCS40US15 | 40 W | Single Phase | 15V | 2.67A |
|
|
|
|
|
FCS40US18 | 40 W | Single Phase | 18V | 2.23A |
|
|
|
|
|
FCS40US24 | 40 W | Single Phase | 24V | 1.67A |
|
|
|
|
|
FCS40US36 | 40 W | Single Phase | 36V | 1.11A |
|
|
|
|
|
FCS40US48 | 40 W | Single Phase | 48V | 0.83A |
|
|
|
Specifications
Dimensions
FCS40: 2.00 x 3.00 x 1.04‚ (50.8 x 76.2 x 26.4 mm)
Input Voltage
80 to 264 VAC (see datasheet)
No Load Input Power
0.3 W
Harmonic Currents
EN61000-3-2, Class A
Efficiency
84% (see datasheet)
Operating Temperature
-25 °C to +70 °C (see datsheet)
Isolation
Input to Output: 4000 VAC, 2 MOPP Input to Ground: 1500 VAC, 1 MOPP Output to Ground: 500 VAC, 1 MOPP at output voltage
Worldwide Safety Approvals
IEC60950-1:2005, IEC62368-1:2014, IEC60601-1 Ed 3.1 Including Risk Management, IEC60335-1
European Safety Approvals
EN62368-1, EN60601-1
US Safety Approvals
cUL62368-1, ANSI/AAMI ES60601-1: & CSA C22.2 No.6061-1:08
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation.
EMC
Conducted: EN55011/32, Class B Radiated: EN55011/32, Class A, Class B with Wurth Electronics 742 700 91 with 4 turns on AC Input
