DC-DC Converters
DTE60 Series

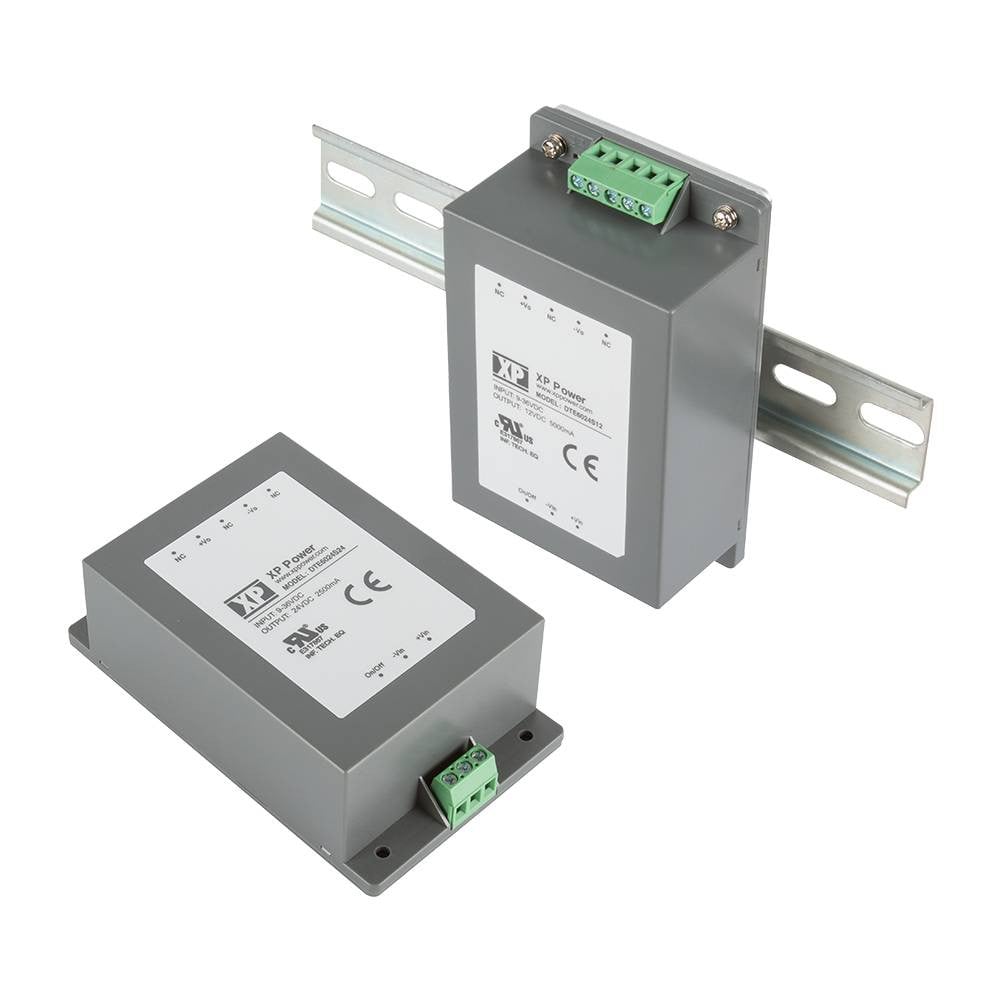

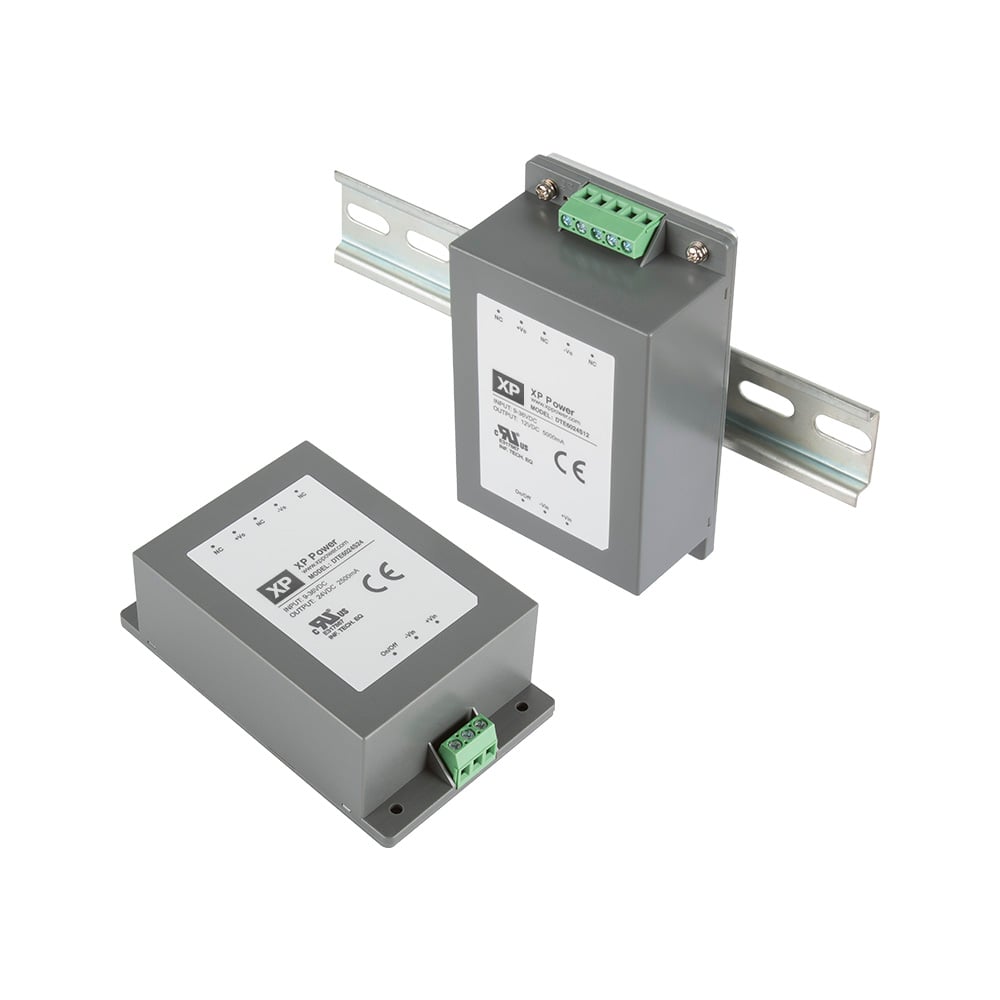

60W 4:1 DC-DC converter in a chassis mount as standard, or DIN rail mount as an option
Available in two wide (4:1) input ranges for nominal 24VDC & 48VDC, the DTE40 series of encapsulated 40W DC-DC converters are chassis mount as standard or can be ordered with a DIN rail mount.
They have screw terminals for ease of connection and an LED provides clear ‘power good’ indication. Remote On/Off is standard and when inhibited the standby current is just 3mA. Isolation is 2.5kVDC input/output providing excellent separation between supply and load. The modules are fully protected against input undervoltage, short circuit and overload conditions.
These features, along with a rugged design and wide operating temperature range make the DTE40 series suitable for a variety of commercial and industrial electronics applications.
datasheet Contact us
Features
- Regulated single output
- 4:1 input range
- Single outputs 5.1 to 48VDC
- Fully encapsulated chassis mount
- DIN rail mount option
- 3.0kVDC isolation
- EN55032 Class A with no external components
- Remote On/Off
- -40°C to +85°C operating temperature
- Full power to +71°C
- 3 year warranty
| Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ | |
|---|---|---|---|---|---|---|---|---|
|
DTE6024S5V1 | 60 W | 9 to 36 VDC | 5.1V | 12A |
|
|
|
|
|
DTE6024S12 | 60 W | 9 to 36 VDC | 12V | 5A |
|
|
|
|
|
DTE6024S24 | 60 W | 9 to 36 VDC | 24V | 2.5A |
|
|
|
|
|
DTE6024S48 | 60 W | 9 to 36 VDC | 48V | 1.25A |
|
|
|
|
|
DTE6048S5V1 | 60 W | 18 to 75 VDC | 5.1V | 12A |
|
|
|
|
|
DTE6048S12 | 60 W | 18 to 75 VDC | 12V | 5A |
|
|
|
|
|
DTE6048S24 | 60 W | 18 to 75 VDC | 24V | 2.5A |
|
|
|
|
|
DTE6048S48 | 60 W | 18 to 75 VDC | 48V | 1.25A |
|
|
|
Specifications
Dimensions
DTE60: 4.41 x 2.67 x 1.5 in (112 x 67.8 x 38 mm)
Input Voltage
9 to 36VDC (24V nominal) 18 to 75VDC (48V nominal)
Efficiency
91% typical
Operating Temperature
-40°C to +85°C (see datasheet)
Isolation
2500 VDC for 60s
Worldwide Safety Approvals
IEC60950-1
US Safety Approvals
UL/cUL60950-1, UL/cUL62368-1
Other Safety Approvals
CE & UKCA meets all applicable directives & legislation
EMC
EN55032 Level A conducted EN55032 Level A radiated (see datasheet)
