DRC60 Series

AC-DC Power Supplies

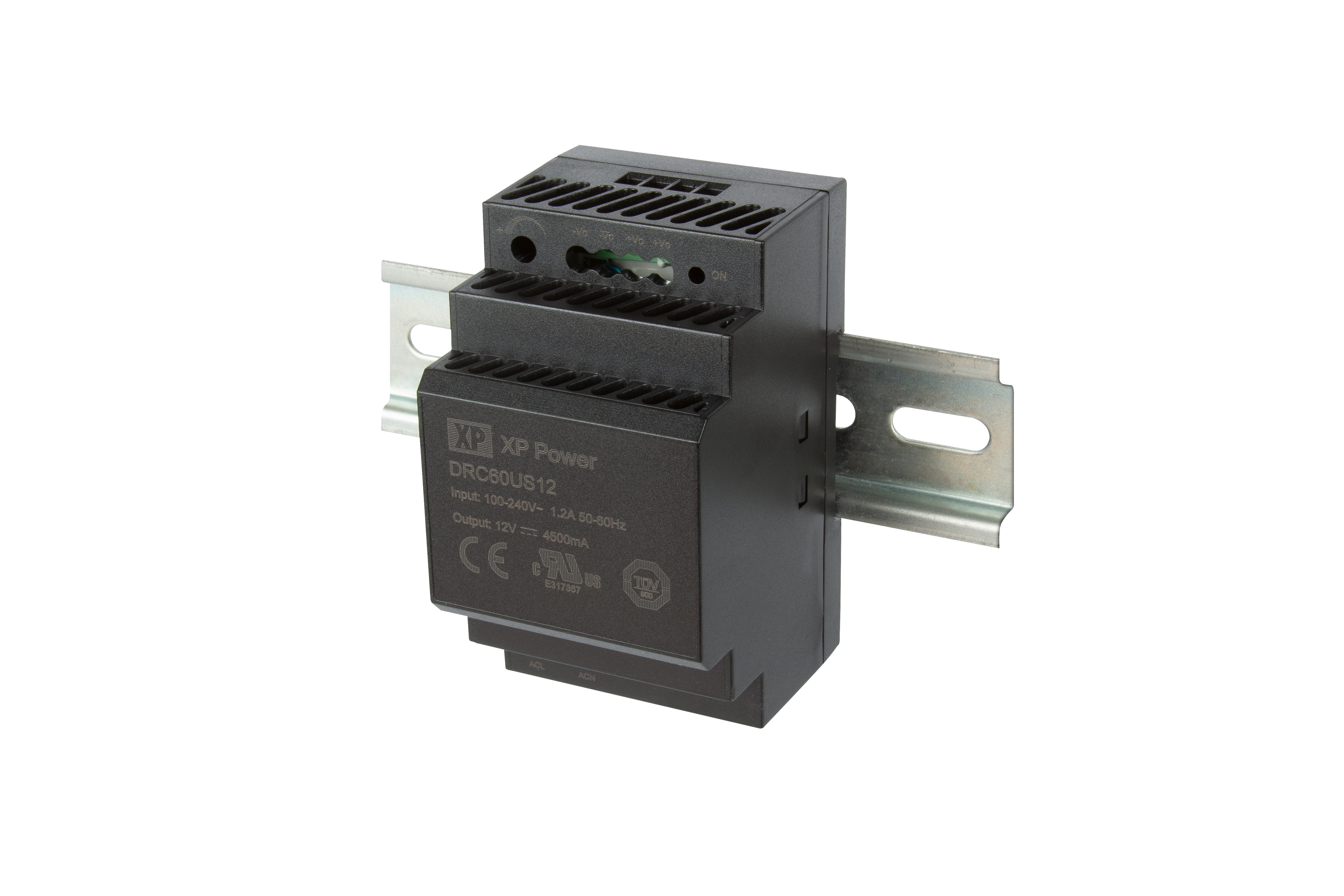

DRC60 Series

Compact, low cost 60W DIN rail AC-DC power supplies for industrial electronics applications

These competitively priced, lightweight, compact units have a low-profile case of a similar profile to that of circuit breakers, allowing them to fit in consumer unit style housings, or in control panel installations. The standard width cases allow direct substitution for similar products on the market. The type of applications the DRC60 series is ideal for are: Escalator/travellator/elevator/lift control; Building heating/aircon monitoring, control & security systems; Factory automation; Machine & Process control.

datasheet Contact us

Features

  • 60W convection cooled
  • Compact, low profile, DIN rail mount case
  • UL/EN62368-1 approvals
  • Class II operation
  • Class B conducted & radiated emissions
  • Input voltage range 85 to 264VAC, 120 to 370VDC
  • Output voltages from 5 to 48VDC
  • High efficiency, up to 91%
  • 4kVAC input to output isolation
  • DC ‘ON’ LED indicator
  • -30°C to +70°C operating temperature
  • 3 year warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
DRC60 DRC60US05 60 W Single Phase 5V 6.5A
DRC60 DRC60US12 60 W Single Phase 12V 4.5A
DRC60 DRC60US15 60 W Single Phase 15V 4A
DRC60 DRC60US24 60 W Single Phase 24V 2.5A
DRC60 DRC60US48 60 W Single Phase 48V 1.25A

Specifications


Dimensions

3.60 x 2.04 x 2.28 in (92.6 x 52.0 x 58.0 mm)

Input Voltage

85 to 264 VAC. See datasheet

No Load Input Power

0.3W for models below 48V. 0.4W for 48V models.

Efficiency

Up to 91%

Operating Temperature

-30 °C to +70 °C. See datasheet

Isolation

4000 VAC input to output. Class II construction.

European Safety Approvals

EN62368-1

US Safety Approvals

EN62368-1

Other Safety Approvals

CE & UKCA meets all applicable directives & legislation

EMC

EN55032 Class B conducted & radiated
