ACM06 Series

AC-DC Power Supplies

ACM06 Series

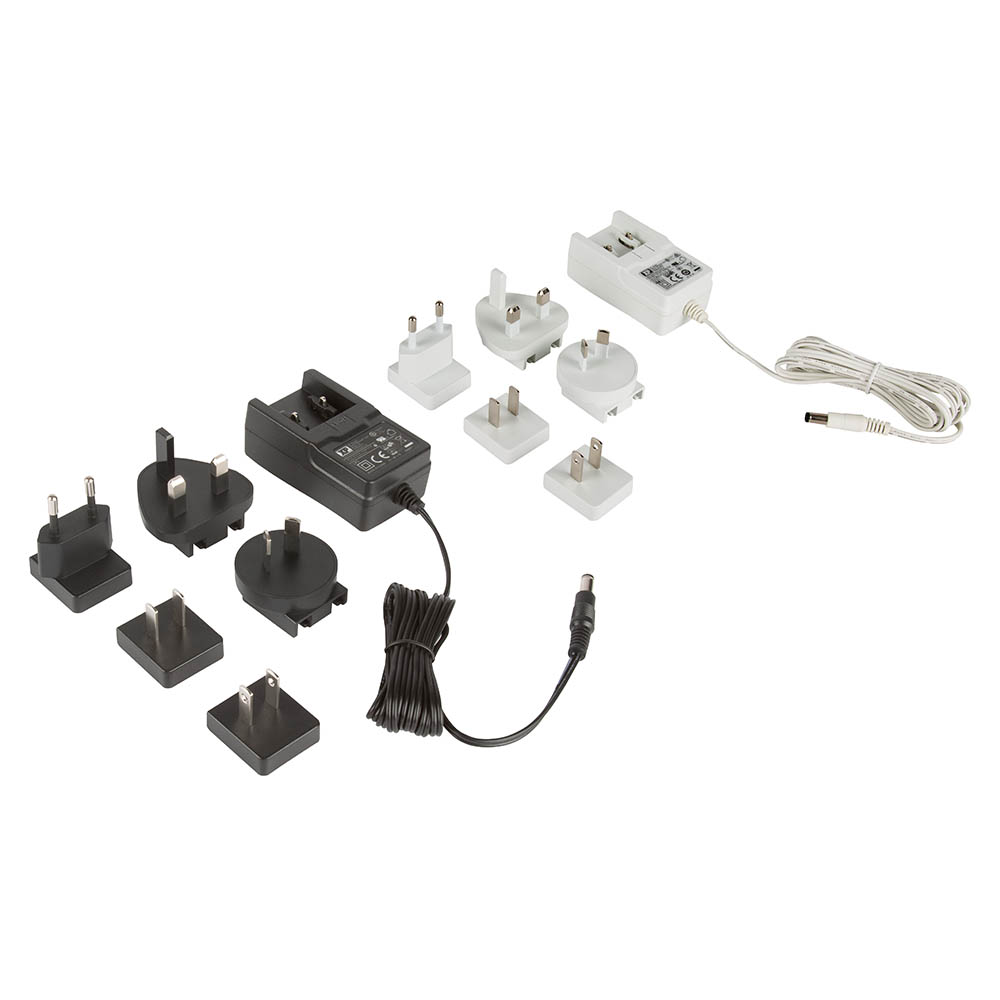

6W plugtop AC-DC power supplies with medical (2 x MOPP) & ITE approvals

The ACM06 series of wall plug adaptors comply with the latest energy efficiency level VI standards with high active mode efficiency and extremely low no load power consumption. Available with a standard jack plug connector these adaptors suit a wide variety of cost sensitive medical (2 x MOPP) and ITE & industrial electronics applications while maintaining industry leading performance.



datasheet Contact us

Features

  • Energy Efficiency Level VI
  • European CoC Tier 2
  • Medical and ITE Approvals
  • Interchangeable Mains Connectors
  • Optional White Versions
  • Output Voltages from 5V to 12VDC
  • Class II Construction
  • 3 Years Warranty
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
ACM06 ACM06US05 6 W Single Phase 5V 1A
ACM06 ACM06US09 6 W Single Phase 9V 0.6A
ACM06 ACM06US12 6 W Single Phase 12V 0.5A

Specifications


Dimensions

ACM06 (body only): 2.89 x 1.21 x 1.67 in (73.5 x 30.7 x 42.5 mm)

Input Voltage

90 to 264 VAC

No Load Input Power

75 mW

Harmonic Currents

EN61000-3-2 Class A

Efficiency

80% typical

Operating Temperature

0 °C to +60 °C, derate from 100% load at 40 °C to 50% load at 60 °C

Isolation

4000 VAC Input to Output, 2 x MOPP

Worldwide Safety Approvals

IEC60950-1, IEC62368-1, IEC60601-1

European Safety Approvals

EN60950-1, EN62368-1, EN60601-1

US Safety Approvals

UL60950-1, UL62368-1, ANSI/AAMI ES 60601-1, CSA C22.2 No. 60601

Other Safety Approvals

China Compulsory Certification, GB4943,

EMC

EN55032 Level B conducted & radiated, CE (Meets all applicable directives), UKCA (Meets all applicable legislation)
