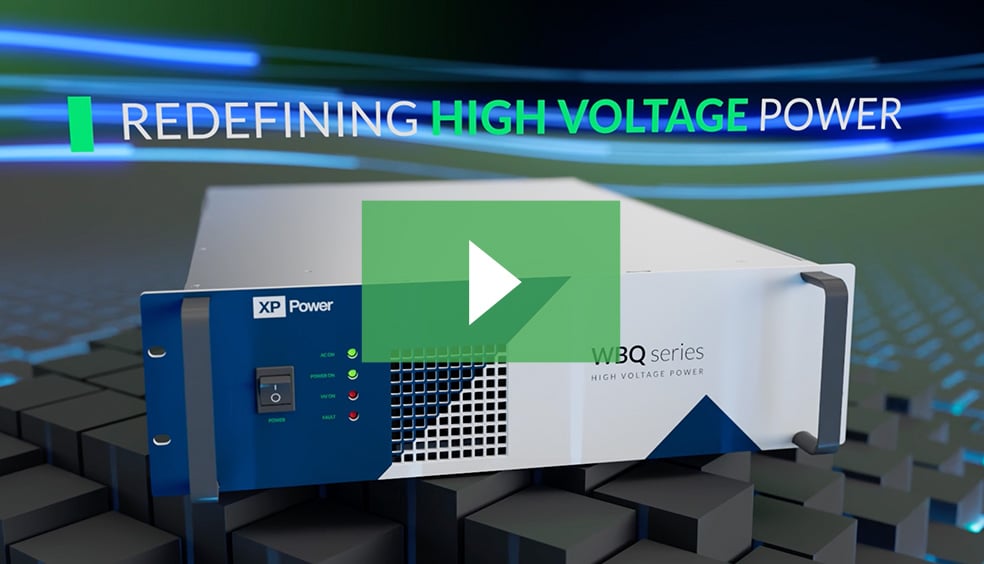

The WBQ Series is a fully digital, rack-mounted high voltage power supply engineered for demanding applications such as ion implantation, e-beam welding and additive manufacturing. With up to 10kW of power in an ultra-compact 3U footprint, it delivers precise regulation, intelligent control and scalable performance.
WBQ key features:
15kV-100kV output voltages and 10kW output power
Parallelable up to 100kW+
Digital loop, fully adjustable outputs and UI for easy configuration
Analog and digital control via CAN, (EtherCAT optional)
Voltage and current monitoring with diagnostics
High efficiency >90%
Low ripple, down to 0.01% and line/load regulation of 0.05%
3 phase AC input 208VAC (400VAC optional)
Arc quench, arc count, interlock and overload protection
Discover what makes the WBQ series a leader in digital, scalable high voltage power.
