AC-DC Power Supplies

Return to categories

Show products by:

Product series Part number

FCS60

60W

60 W Convection Rating
2” by 4” Footprint
Low 1.04” Profile
High Efficiency
Medical, ITE and Household Appliance Approvals
Class I & Class II Installations
High Power Density
Less than 0.3 W No Load Input Power
3 Year Warranty

VEC65

65W

Energy Efficiency Level VI
CoC Tier 2
Limited Power Source Approved
<0.15 W Standby Power
Optional Inlet Connector
China Compulsory Certfication (CCC) Qualified
0 °C to 60 °C Operation
High Power Density
Low Cost

ECS65

65W

IT & Medical Safety Approvals
65/80/100 W Convection-cooled Ratings
Class I & Class II Construction
Industry Standard 2” x 4” Package
<0.5 W No Load Input Power
Low Leakage Current
3 Year Warranty

AKM65

65W

Energy Efficiency Level VI
European CoC Tier 2
Medical and ITE Approvals
Optional Class II Versions
Optional White Versions
Output Voltages from 12 V to 48 V
Optional AC Cable Restraint
3 Years Warranty

ALM65

65W

Medical & IT Safety Approvals
Energy Efficiency Level VI
4th Edition Medical EMC
IP32 Environmental Rating
Class I and Class II Versions
<0.21 W Standby Power
0 °C to 60 °C Operation
Low Earth Leakage Current
3 Year Warrant

DPC70

70W

Ultra Slim Design
Ambient Operation from -25 °C to +70 °C
High Efficiency
Wide Output Adjustment Range
12 V to 48 V Nominal Outputs
<0.5 W No Load Input Power
3 Year Warranty

AEJ70

70W

Energy Efficiency Level VI
European CoC Tier 2
<0.15 W Standby Power
Single Outputs from 12 to 48 V
0 °C to 65 °C Operation
Universal Input
3 Year Warranty

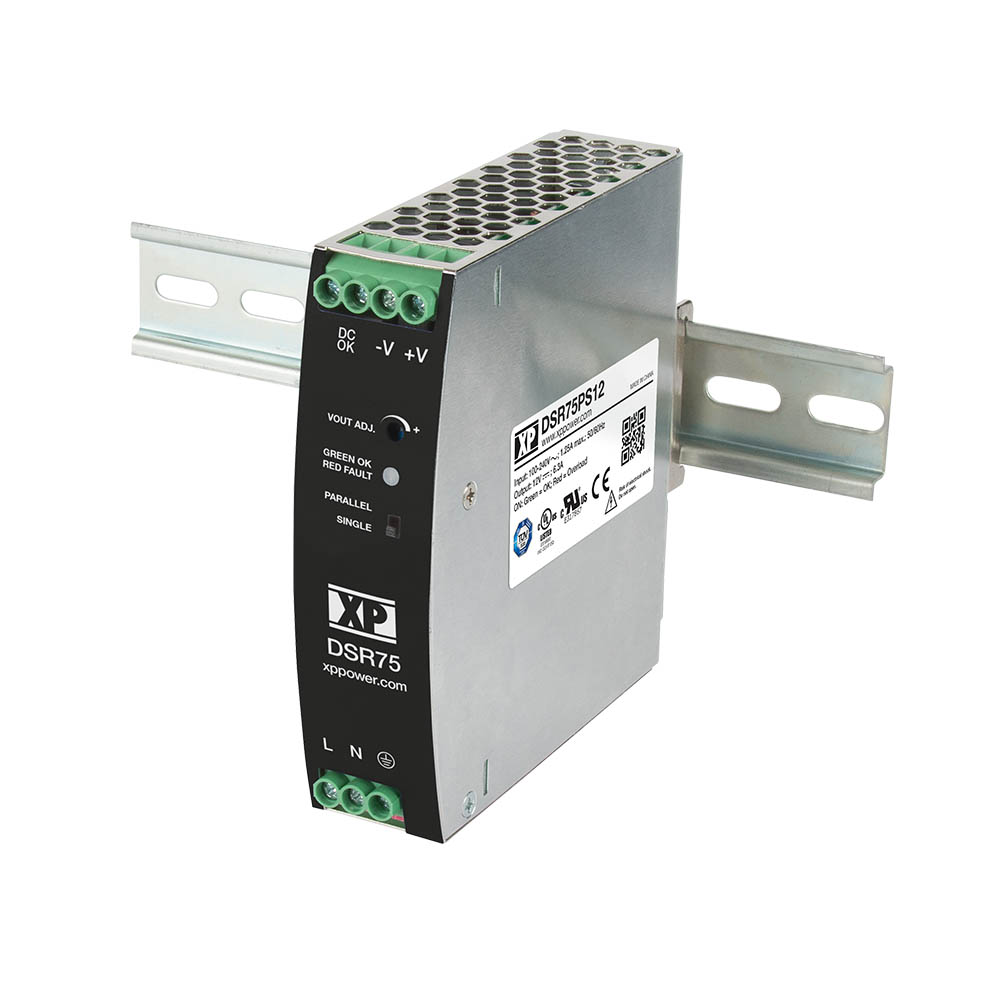

DSR75

75W

Ultra Slim Design - 32mm
150% Peak Load for 3 seconds
Ambient Operation from -25 °C to +70 °C
Full Load at 60 °C
High Efficiency - Up to 91%
Volt-Free Contact for DC OK
Selectable Parallel Operation
85 to 264 VAC Operation
3 Year Warranty

ECE80

80W

Ultra Compact Size
Single Outputs from 12 to 48 V
Encapsulated
PCB, Chassis Mount and DIN Rail Versions
<0.3 W No Load Input Powert
-40 to +70 °C Operation
Peak Load Capability
3 Year Warranty

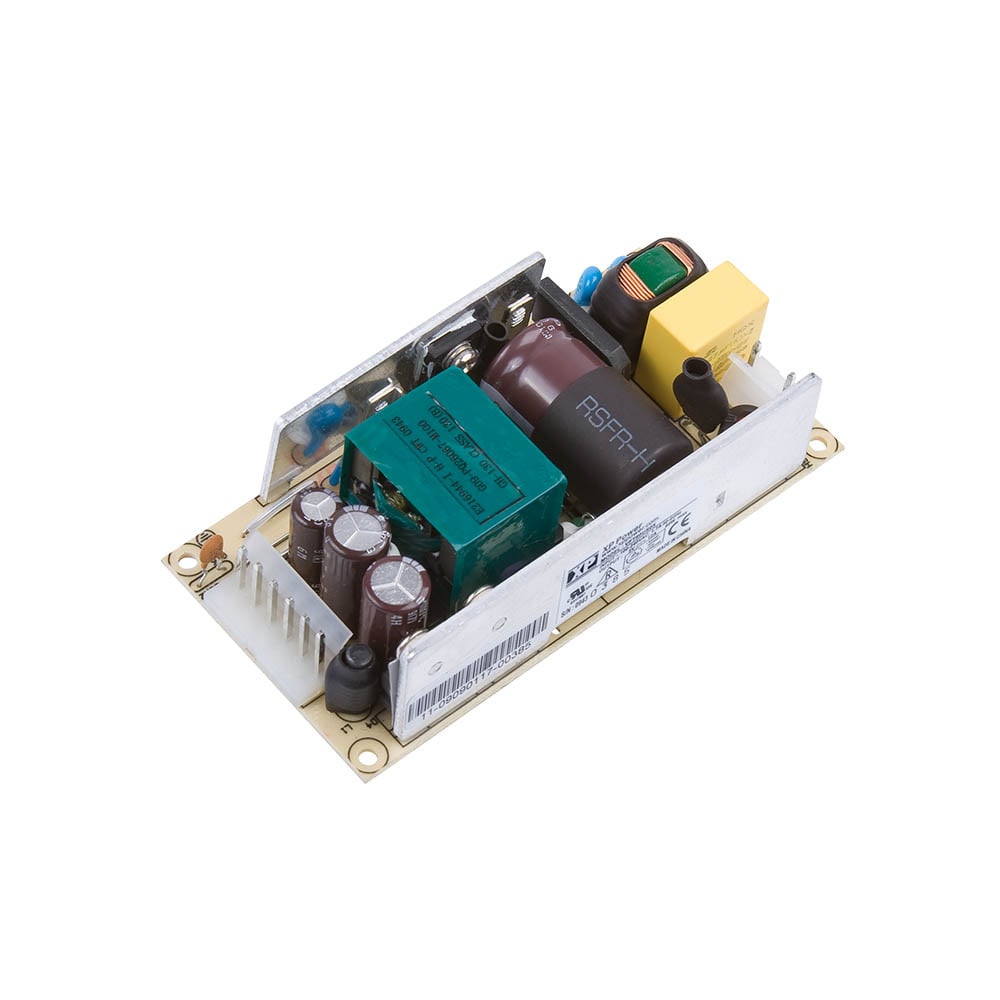

VFT80

80W

Low Cost
Single Outputs from 5 V to 24 V
Peak Load Capability
High Efficiency
<0.5 W No Load Input Power
2” x 4” Package
Fits 1U Applications

AHM85

85W

IT & Medical Approvals
Energy Efficiency Level V, CEC2008 & EISA 2007
<0.5 W No Load Input Power
Class I and Class II Models
Very High Efficiency
IP22 Environmental Rating
3 Year Warranty

ALM85

85W

Medical & IT Safety Approvals
Energy Efficiency Level VI & EU CoC Tier 2 Compliant
4th Edition Medical EMC
IP32 Environmental Rating
Class I and Class II Versions
<0.15 W Standby Power
0 °C to 60 °C Operation
Low Earth Leakage Current
3 Year Warrant

VES90

90W

Energy Efficiency Level VI
European CoC Tier 2
High Power Density
Single Outputs from 12 V to 48 V
<0.15 W Standby Power
China Compulsory Certification (CCC) Qualified
0 °C to 60 °C Operation
Optional Output Connector
Low Cost

AKM90

90W

Energy efficiency level VI
European Commission Regulation (EU) 2019/1782 & CoC tier 2 compliant
ITE & Medical (2 x MOPP) approvals
4th Edition Medical EMC
Class I as standard, class II optional
Input voltage range 90 to 264VAC
Output voltages from 12 to 48VDC
Low earth leakage current
<0.15W standby power
Optional AC cable restraint (class 1 versions with C14 inlet only)
0° to +60°C operating temperature
Full power to +40°C
MTBF >250 khrs (MIL-HDBK-217F, +25°C GB)
3 year warranty

AJM90

90W

Energy Efficiency Level VI
Medical and ITE Safety Approvals
4th Edition Medical EMC
Class II
<0.21 W Standby Power
0 °C to 60 °C Operation
Low Earth Leakage Current
3 Year Warranty

ECS100

100W

IT & Medical Safety Approvals
65/80/100 W Convection-cooled Ratings
Class I & Class II Construction
Industry Standard 2” x 4” Package
<0.5 W No Load Input Power
Low Leakage Current
3 Year Warranty

AHM100

100W

IT & Medical Approvals
Energy Efficiency Level V, CEC2008 & EISA 2007
<0.5 W No Load Input Power
Class I and Class II Models
Very High Efficiency
IP22 Environmental Rating
3 Year Warranty

DRC100

100W

100W convection cooled
Compact, low profile, DIN rail mount case
UL/EN62368-1 approvals
Class II operation
Class B conducted & radiated emissions
Input voltage range 85 to 264VAC, 120 to 370VDC
Output voltages from 5 to 48VDC
High efficiency, up to 90%
4kVAC input to output isolation
DC ‘ON’ LED indicator
-30°C to +70°C operating temperature
3 year warranty

AEJ100

100W

Energy Efficiency Level VI
European CoC Tier 2
Active Power Factor Correction
Single Outputs 12 V to 48 V
<0.15 W Standby Power
-30 °C to 65 °C Operation
Universal Input
3 Year Warranty

ECC100

100W

-40 °C to +75 °C Operation
100 W Baseplate-cooled
High Efficiency Resonant Topology
Screw Terminals Available
5V Standby Output
Remote On/Off & Power OK Signal
3 Year Warranty

« Previous
1
2
3
4
5
6
7
8
Next »

	Model Name	Power	Input Voltage	Output Voltage	Output Current	Datasheet	Stock Check	RFQ
	VCE03US12	3 W	Single Phase	12V	0.25A
	VCE03US15	3 W	Single Phase	15V	0.2A
	VCE03US24	3 W	Single Phase	24V	0.125A
	VCE03US48	3 W	Single Phase	48V	0.063A
	VCE03US03	3 W	Single Phase	3.3V	0.91A
	VCE03US05	3 W	Single Phase	5V	0.6A
	VCE03US09	3 W	Single Phase	9V	0.333A
	VCE05US03	5 W	Single Phase	3.3V	1.573A
	VCE05US05	5 W	Single Phase	5V	1.3A
	VCE05US09	5 W	Single Phase	9V	0.722A
	VCE05US12	5 W	Single Phase	12V	0.541A
	VCE05US15	5 W	Single Phase	15V	0.433A
	VCE05US24	5 W	Single Phase	24V	0.27A
	VCE05US48	5 W	Single Phase	48V	0.135A
	DNR05US05	5 W	Single Phase	5V	1A
	DNR05US12	5 W	Single Phase	12V	0.42A
	DNR05US15	5 W	Single Phase	15V	0.34A
	DNR05US24	5 W	Single Phase	24V	0.21A
	VEL05US050	5 W	Single Phase	5V	1A
	VEL05US060	5 W	Single Phase	6V	0.83A
