Not Recommended Not recommended for new designs.
This product is available for purchase, but there are newer products available that may better suit your needs.
Please contact us to discuss your requirements.

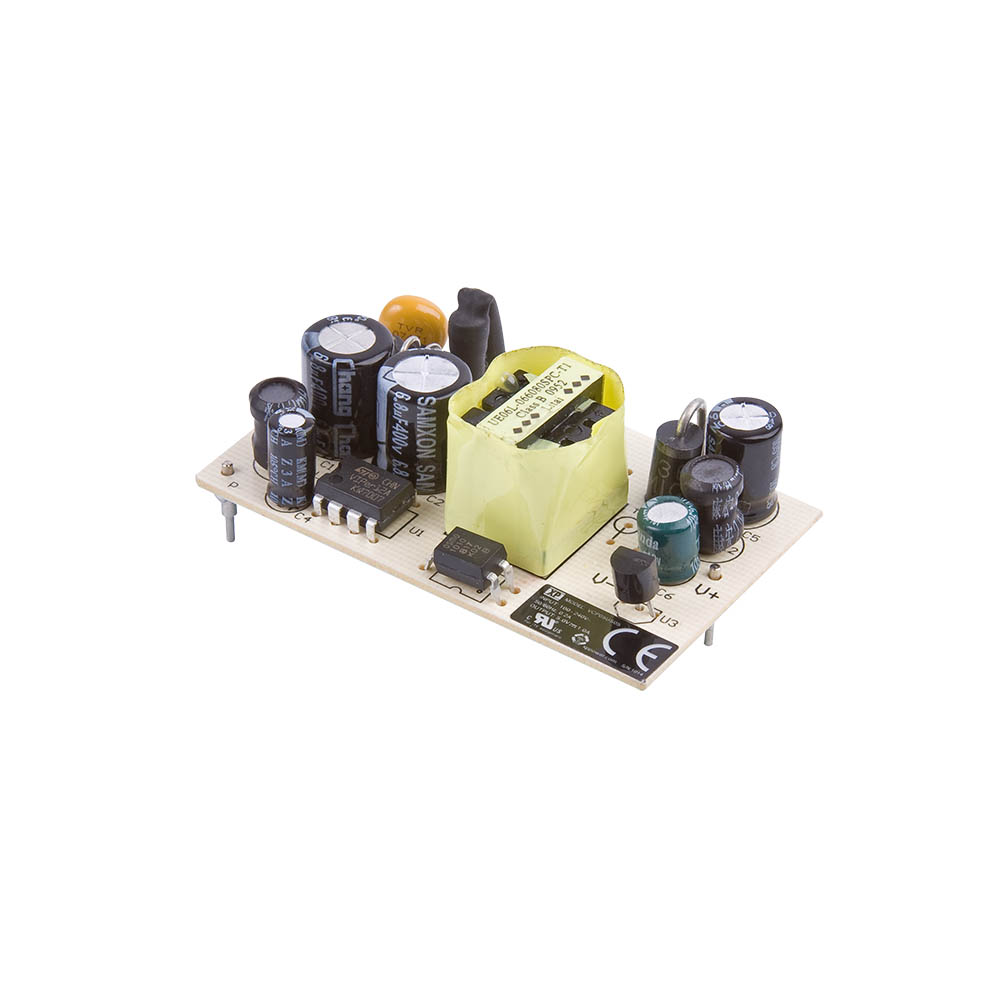

VCP05 Series

AC-DC Power Supplies

VCP05 Series

  • Low Cost
  • Universal AC Input
  • Output Voltage from 5 to 15 V
  • PCB Mount
  • Class II Construction
  • EN55022 Class B Emissions
  • No Load Input Power <0.3 W
Contact us
Model Name Power Input Voltage Output Voltage Output Current Datasheet Stock Check RFQ
VCP05 VCP05US15 5 W Single Phase 15V 0.3A
VCP05 VCP05US05 5 W Single Phase 5V 1A
VCP05 VCP05US12 5 W Single Phase 12V 0.4A

Specifications


Dimensions

VCP05: 2.30 x 1.40 x 0.91 in (58.5 x 35.5 x 23.1 mm)

Input Voltage

90-264 VAC

No Load Input Power

<0.3 W

Harmonic Currents

EN61000-3-2, class A

Efficiency

0.69

Operating Temperature

0 ?C to +70 ?C, derate from 100% load at 50 °C to 50% load at 70 °C

Isolation

3000 VAC Input to Output

Worldwide Safety Approvals

IEC60950-1

European Safety Approvals

EN60950-1

US Safety Approvals

cUL60950-1

EMC

EN55022, level B conducted & radiated
