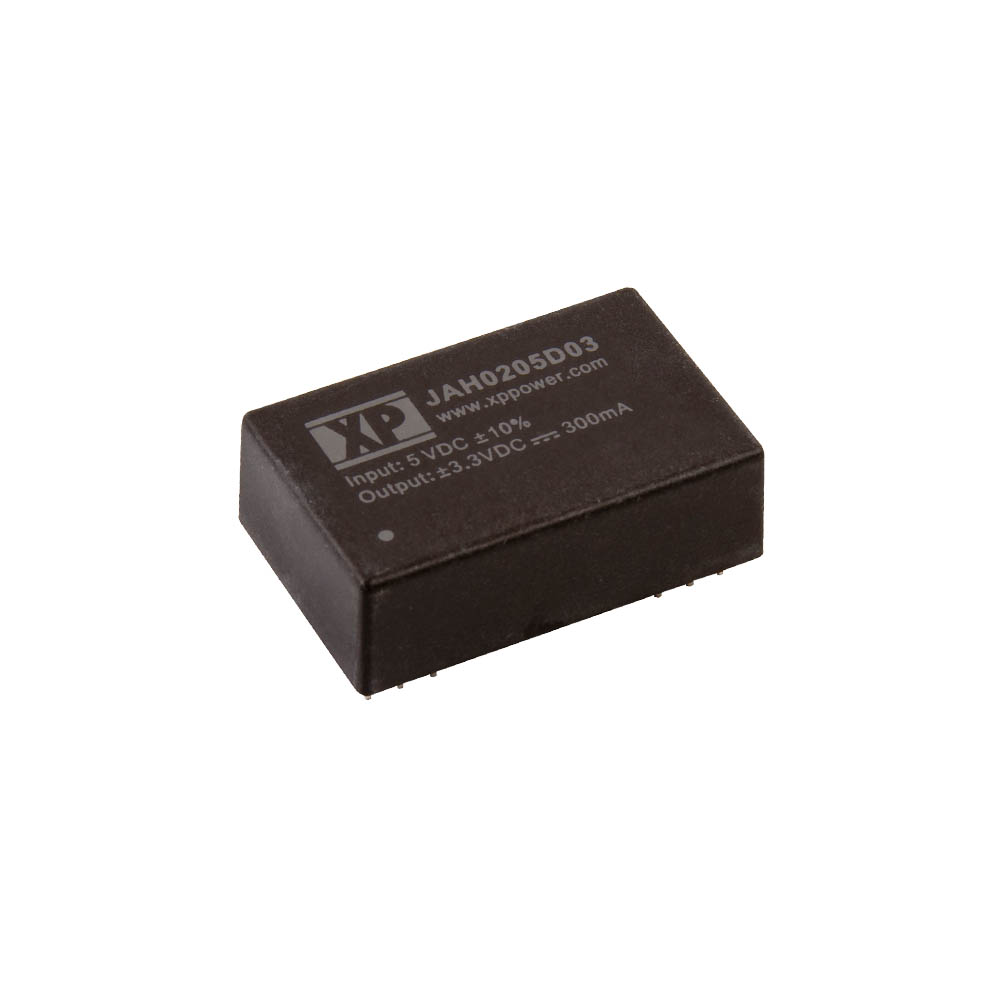

JAH02 Series

±10% input, 2W, regulated, DC-DC converters in a DIP24 PCB mount package

The JAH02 series is housed in a DIP24 plastic case for PCB mounting, a metal case can be specified as an option.

Featuring a ±10% input voltage range for 5. 12 & 24VDC nominal innputs, offering both single and dual outputs, singles have 3.3, 5, 9, 12, 15 or 24VDC with duals having ±3.3, ±5, ±9, ±12, ±15 or ±24VDC.

The 2W JAH02 provides 1.0kVDC isolation between input and output as standard, with 3, 4, 5, 6kVDC isolation versions also available as an option, the output has short circuit protection.

The operating temperature range is from -40°C to +100°C, with derating above +85°C.

datasheet Contact us

Features

Regulated single & dual outputs
±10% input range
Single outputs 3.3 to 24VDC
Dual outputs ±3.3 to ±24VDC
DIP24 package
1.0kVDC isolation, options up to 6.0kVDC
Metal case option
-40°C to +100°C operating temperature
Full power to +85°C
3 year warranty

Model Name	Power	Input Voltage	Output Voltage	Output Current	Datasheet	Stock Check	RFQ
JAH0205D03	2W	4.5 to 5.5VDC	3.3V, -3.3V	0.3A, -0.3A	Datasheet	Stock	RFQ
JAH0205D05	2W	4.5 to 5.5VDC	5V, -5V	0.2A, -0.2A	Datasheet	Stock	RFQ
JAH0205D09	2W	4.5 to 5.5VDC	9V, -9V	0.111A, -0.111A	Datasheet	Stock	RFQ
JAH0205D12	2W	4.5 to 5.5VDC	12V, -12V	0.083A, -0.083A	Datasheet	Stock	RFQ
JAH0205D15	2W	4.5 to 5.5VDC	15V, -15V	0.067A, -0.067A	Datasheet	Stock	RFQ
JAH0205D24	2W	4.5 to 5.5VDC	24V, -24V	0.042A, -0.042A	Datasheet	Stock	RFQ
JAH0205S05	2W	4.5 to 5.5VDC	5V	0.4A	Datasheet	Stock	RFQ
JAH0205S09	2W	4.5 to 5.5VDC	9V	0.222A	Datasheet	Stock	RFQ
JAH0205S12	2W	4.5 to 5.5VDC	12V	0.166A	Datasheet	Stock	RFQ
JAH0205S15	2W	4.5 to 5.5VDC	15V	0.133A	Datasheet	Stock	RFQ
JAH0205S24	2W	4.5 to 5.5VDC	24V	0.083A	Datasheet	Stock	RFQ
JAH0205S3V3	2W	4.5 to 5.5VDC	3.3V	0.5A	Datasheet	Stock	RFQ
JAH0212D03	2W	10.8 to 13.2VDC	3.3V, -3.3V	0.3A, -0.3A	Datasheet	Stock	RFQ
JAH0212D05	2W	10.8 to 13.2VDC	5V, -5V	0.2A, -0.2A	Datasheet	Stock	RFQ
JAH0212D09	2W	10.8 to 13.2VDC	9V, -9V	0.111A, -0.111A	Datasheet	Stock	RFQ
JAH0212D12	2W	10.8 to 13.2VDC	12V, -12V	0.083A, -0.083A	Datasheet	Stock	RFQ
JAH0212D15	2W	10.8 to 13.2VDC	15V, -15V	0.067A, -0.067A	Datasheet	Stock	RFQ
JAH0212D24	2W	10.8 to 13.2VDC	24V, -24V	0.042A, -0.042A	Datasheet	Stock	RFQ
JAH0212S05	2W	10.8 to 13.2VDC	5V	0.4A	Datasheet	Stock	RFQ
JAH0212S09	2W	10.8 to 13.2VDC	9V	0.222A	Datasheet	Stock	RFQ
JAH0212S12	2W	10.8 to 13.2VDC	12V	0.166A	Datasheet	Stock	RFQ
JAH0212S15	2W	10.8 to 13.2VDC	15V	0.133A	Datasheet	Stock	RFQ
JAH0212S24	2W	10.8 to 13.2VDC	24V	0.083A	Datasheet	Stock	RFQ
JAH0212S3V3	2W	10.8 to 13.2VDC	3.3V	0.5A	Datasheet	Stock	RFQ
JAH0224D03	2W	21.6 to 26.4VDC	3.3V, -3.3V	0.3A, -0.3A	Datasheet	Stock	RFQ
JAH0224D05	2W	21.6 to 26.4VDC	5V, -5V	0.2A, -0.2A	Datasheet	Stock	RFQ
JAH0224D09	2W	21.6 to 26.4VDC	9V, -9V	0.111A, -0.111A	Datasheet	Stock	RFQ
JAH0224D12	2W	21.6 to 26.4VDC	12V, -12V	0.083A, -0.083A	Datasheet	Stock	RFQ
JAH0224D15	2W	21.6 to 26.4VDC	15V, -15V	0.067A, -0.067A	Datasheet	Stock	RFQ
JAH0224D24	2W	21.6 to 26.4VDC	24V, -24V	0.042A, -0.042A	Datasheet	Stock	RFQ
JAH0224S05	2W	21.6 to 26.4VDC	5V	0.4A	Datasheet	Stock	RFQ
JAH0224S09	2W	21.6 to 26.4VDC	9V	0.222A	Datasheet	Stock	RFQ
JAH0224S12	2W	21.6 to 26.4VDC	12V	0.166A	Datasheet	Stock	RFQ
JAH0224S15	2W	21.6 to 26.4VDC	15V	0.133A	Datasheet	Stock	RFQ
JAH0224S24	2W	21.6 to 26.4VDC	24V	0.083A	Datasheet	Stock	RFQ
JAH0224S3V3	2W	21.6 to 26.4VDC	3.3V	0.5A	Datasheet	Stock	RFQ
