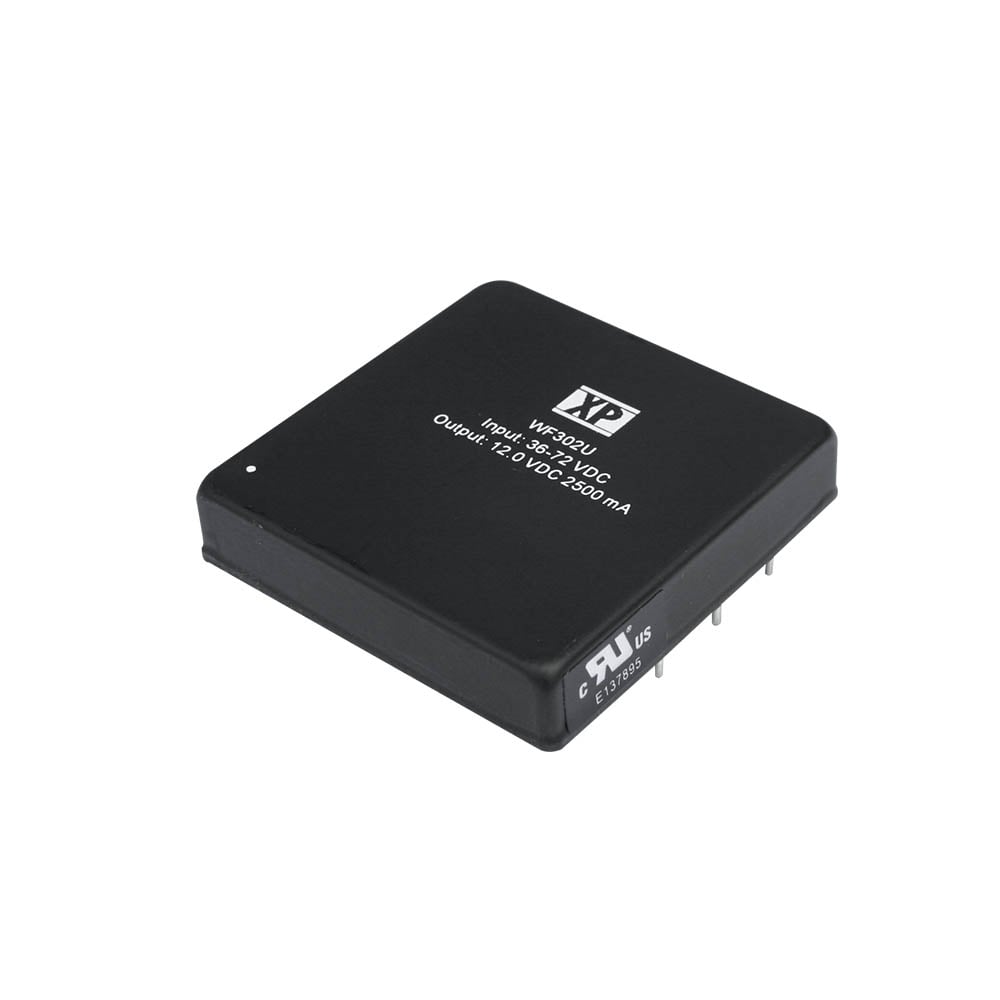

WF

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

16.5-30 Watts

  • 2:1 Input Range
  • Efficiency to 85%
  • Input Pi Filter
  • Single, Dual & Triple Outputs
  • Remote On/Off
  • Six- sided Metal Case
  • External Output Trim
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
WF100 9 to 18 Vdc 3.3 V / 5 A
16.5W Request Sample Stock Check
WF101 9 to 18 Vdc 5 V / 5 A
25W Request Sample Stock Check
WF102 9 to 18 Vdc 12 V / 2.5 A
30W Request Sample Stock Check
WF103 9 to 18 Vdc 15 V / 2 A
30W Request Sample Stock Check
WF104 9 to 18 Vdc 5 V / 2.5 A
-5 V / 2.5 A
25W Request Sample Stock Check
WF105 9 to 18 Vdc 12 V / 1.25 A
-12 V / -1.25 A
30W Request Sample Stock Check
WF106 9 to 18 Vdc 15 V / 1 A
-15 V / -1 A
30W Request Sample Stock Check
WF107 9 to 18 Vdc 5 V / 3.5 A
12 V / 0.31 A
-12 V / -0.31 A
30W Request Sample Stock Check
WF108 9 to 18 Vdc 5 V / 3.5 A
15 V / 0.25 A
-15 V / -0.25 A
30W Request Sample Stock Check
WF200 18 to 36 Vdc 3.3 V / 5 A
16.5W Request Sample Stock Check
WF201 18 to 36 Vdc 5 V / 5 A
25W Request Sample Stock Check
WF202 18 to 36 Vdc 12 V / 2.5 A
30W Request Sample Stock Check
WF203 18 to 36 Vdc 15 V / 2 A
30W Request Sample Stock Check
WF204 18 to 36 Vdc 5 V / 2.5 A
-5 V / 2.5 A
25W Request Sample Stock Check
WF205 18 to 36 Vdc 12 V / 1.25 A
-12 V / -1.25 A
30W Request Sample Stock Check
WF206 18 to 36 Vdc 15 V / 1 A
-15 V / -1 A
30W Request Sample Stock Check
WF207 18 to 36 Vdc 5 V / 3.5 A
12 V / 0.31 A
-12 V / -0.31 A
30W Request Sample Stock Check
WF208 18 to 36 Vdc 5 V / 3.5 A
15 V / 0.25 A
-15 V / -0.25 A
30W Request Sample Stock Check
WF300 36 to 72 Vdc 3.3 V / 5 A
16.5W Request Sample Stock Check
WF301 36 to 72 Vdc 5 V / 5 A
25W Request Sample Stock Check
WF302 36 to 72 Vdc 12 V / 2.5 A
30W Request Sample Stock Check
WF303 36 to 72 Vdc 15 V / 2 A
30W Request Sample Stock Check
WF304 36 to 72 Vdc 5 V / 2.5 A
-5 V / 2.5 A
25W Request Sample Stock Check
WF305 36 to 72 Vdc 12 V / 1.25 A
-12 V / -1.25 A
30W Request Sample Stock Check
WF306 36 to 72 Vdc 15 V / 1 A
-15 V / -1 A
30W Request Sample Stock Check
WF307 36 to 72 Vdc 5 V / 3.5 A
12 V / 0.31 A
-12 V / -0.31 A
30W Request Sample Stock Check
WF308 36 to 72 Vdc 5 V / 3.5 A
15 V / 0.25 A
-15 V / -0.25 A
30W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    WF: 2.00 x 2.00 x 0.40 in (50.8 x 50.8 x 10.2 mm)
  • Input Voltage:
    9-18 VDC
    18-36 VDC
    36-72 VDC
  • Efficiency:
    74-85%
  • Operating Temp:
    -25 ?C to +100 ?C
  • Isolation:
    500 VDC min (3000 VDC for ‘U’ version)
  • US Safety Approvals:
    UL60950-1 for ‘U’ versions only
  • EMC:
    EN55022, level A Conducted
    EN55022, level A Radiated

UL Certificate
