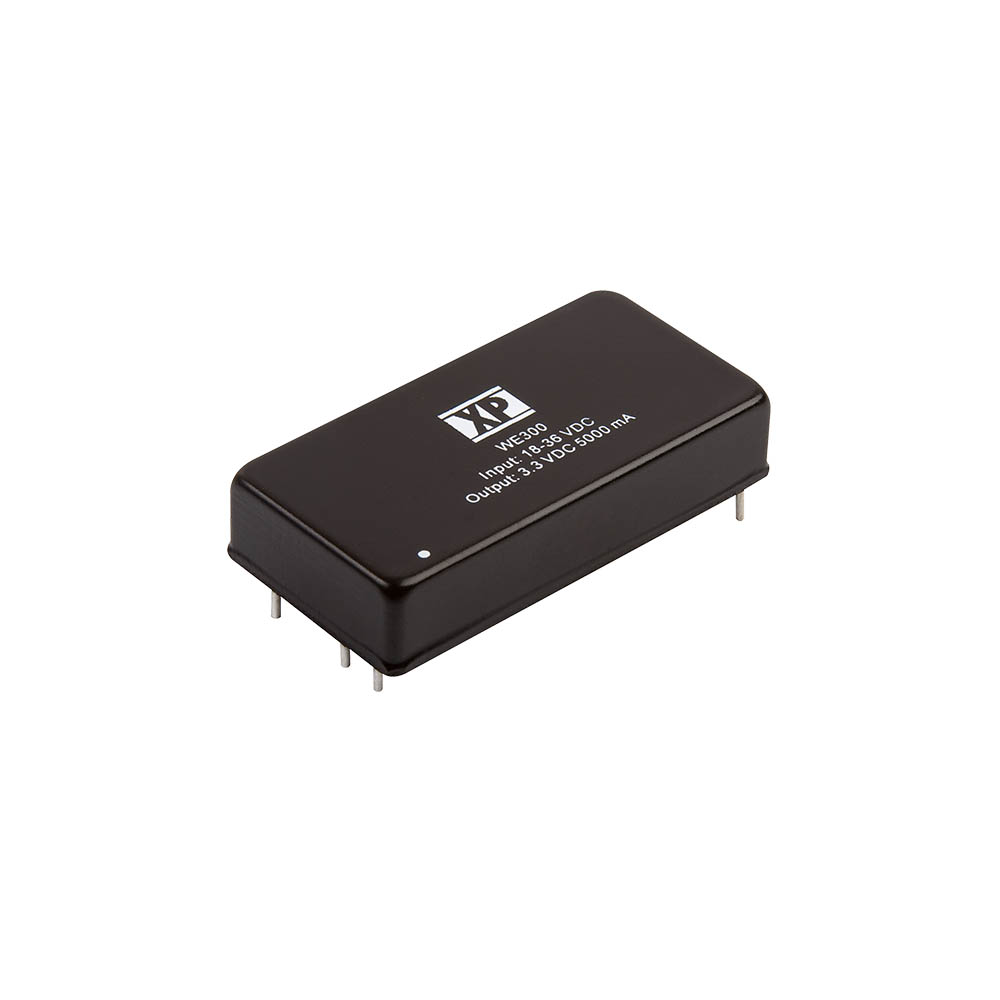

WE

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

20 Watts

  • High Power Density
  • Fully Regulated Outputs
  • Efficiency to 86%
  • Low Voltage Outputs
  • Remote On/Off
  • 2:1 Input Range
  • 2.5, 3.3 & 5 V Versions
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
WE320 18 to 36 Vdc 2.5 V / 5 A
20W Request Sample Stock Check
WE300 18 to 36 Vdc 3.3 V / 5 A
20W Request Sample Stock Check
WE301 18 to 36 Vdc 5 V / 4 A
20W Request Sample Stock Check
WE420 36 to 72 Vdc 2.5 V / 5 A
20W Request Sample Stock Check
WE400 36 to 72 Vdc 3.3 V / 5 A
20W Request Sample Stock Check
WE401 36 to 72 Vdc 5 V / 4 A
20W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    WE: 2.00 x 1.00 x 0.40 in (50.8 x 25.4 x 10.2 mm)
  • Input Voltage:
    24 V (18-36 VDC)
    48 V (36-72 VDC)
  • Efficiency:
    81-86%
  • Operating Temp:
    -40 ?C to +70 ?C
  • Isolation:
    500 VDC Input to Output
  • EMC:
    EN55022, level A Conducted
    EN55022, level A Radiated

Unfortunately there are no 3D models available for this product.
