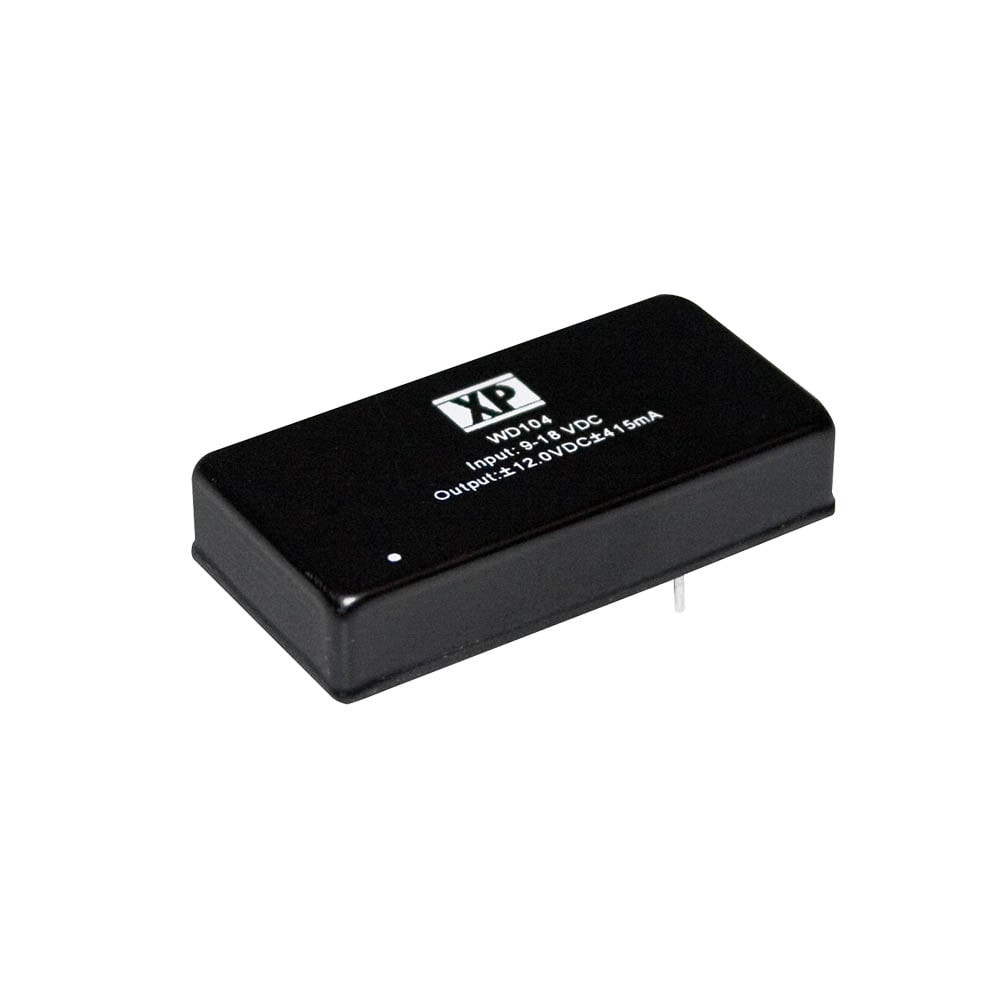

WD

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

8-15 Watts

  • 2:1 Input Range
  • Isolated Outputs
  • Efficiency to 82%
  • 200 kHz Switching Frequency
  • Input Pi Filter
  • Fully Regulated Outputs
  • Six-sided Shield
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
WD501 4.7 to 9 Vdc 5 V / 1.6 A
 8W Request Sample Stock Check
WD502 4.7 to 9 Vdc 12 V / 0.666 A
 8W Request Sample Stock Check
WD503 4.7 to 9 Vdc 15 V / 0.533 A
 8W Request Sample Stock Check
WD504 4.7 to 9 Vdc 12 V / 0.333 A
-12 V / -0.333 A
 8W Request Sample Stock Check
WD505 4.7 to 9 Vdc 15 V / 0.266 A
-15 V / -0.266 A
 8W Request Sample Stock Check
WD506 4.7 to 9 Vdc 5 V / 0.8 A
-5 V / -0.8 A
 8W Request Sample Stock Check
WD100 9 to 18 Vdc 3.3 V / 3 A
 10W Request Sample Stock Check
WD101 9 to 18 Vdc 5 V / 2 A
 10W Request Sample Stock Check
WD102 9 to 18 Vdc 12 V / 0.83 A
 10W Request Sample Stock Check
WD103 9 to 18 Vdc 15 V / 0.666 A
 10W Request Sample Stock Check
WD104 9 to 18 Vdc 12 V / 0.415 A
-12 V / -0.415 A
 10W Request Sample Stock Check
WD105 9 to 18 Vdc 15 V / 0.333 A
-15 V / -0.333 A
 10W Request Sample Stock Check
WD106 9 to 18 Vdc 5 V / 1 A
-5 V / -1 A
 10W Request Sample Stock Check
WD200 18 to 36 Vdc 3.3 V / 3 A
 15W Request Sample Stock Check
WD201 18 to 36 Vdc 5 V / 3 A
 15W Request Sample Stock Check
WD202 18 to 36 Vdc 12 V / 1.25 A
 15W Request Sample Stock Check
WD203 18 to 36 Vdc 15 V / 1 A
 15W Request Sample Stock Check
WD204 18 to 36 Vdc 12 V / 0.625 A
-12 V / -0.625 A
 15W Request Sample Stock Check
WD205 18 to 36 Vdc 15 V / 0.5 A
-15 V / -0.5 A
 15W Request Sample Stock Check
WD206 18 to 36 Vdc 5 V / 1.5 A
-5 V / -1.5 A
 15W Request Sample Stock Check
WD300 36 to 72 Vdc 3.3 V / 3 A
 15W Request Sample Stock Check
WD301 36 to 72 Vdc 5 V / 3 A
 15W Request Sample Stock Check
WD302 36 to 72 Vdc 12 V / 1.25 A
 15W Request Sample Stock Check
WD303 36 to 72 Vdc 15 V / 1 A
 15W Request Sample Stock Check
WD304 36 to 72 Vdc 12 V / 0.625 A
-12 V / -0.625 A
 15W Request Sample Stock Check
WD305 36 to 72 Vdc 15 V / 0.5 A
-15 V / -0.5 A
 15W Request Sample Stock Check
WD306 36 to 72 Vdc 5 V / 1.5 A
-5 V / -1.5 A
 15W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    WD: 2.00 x 1.00 x 0.40 in (50.8 x 25.4 x 10.2 mm)
  • Input Voltage:
    5 V (4.7-9.0 VDC)
    12 V (9-18 VDC)
    24 V (18-36 VDC)
    48 V (36-72 VDC)
  • Efficiency:
    75-82%
  • Operating Temp:
    -25 °C to +70 °C
  • Isolation:
    500 VDC Input to Output
  • US Safety Approvals:
    UL1950 for LU versions only

UL Certificate

Unfortunately there are no 3D models available for this product.
