WC

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

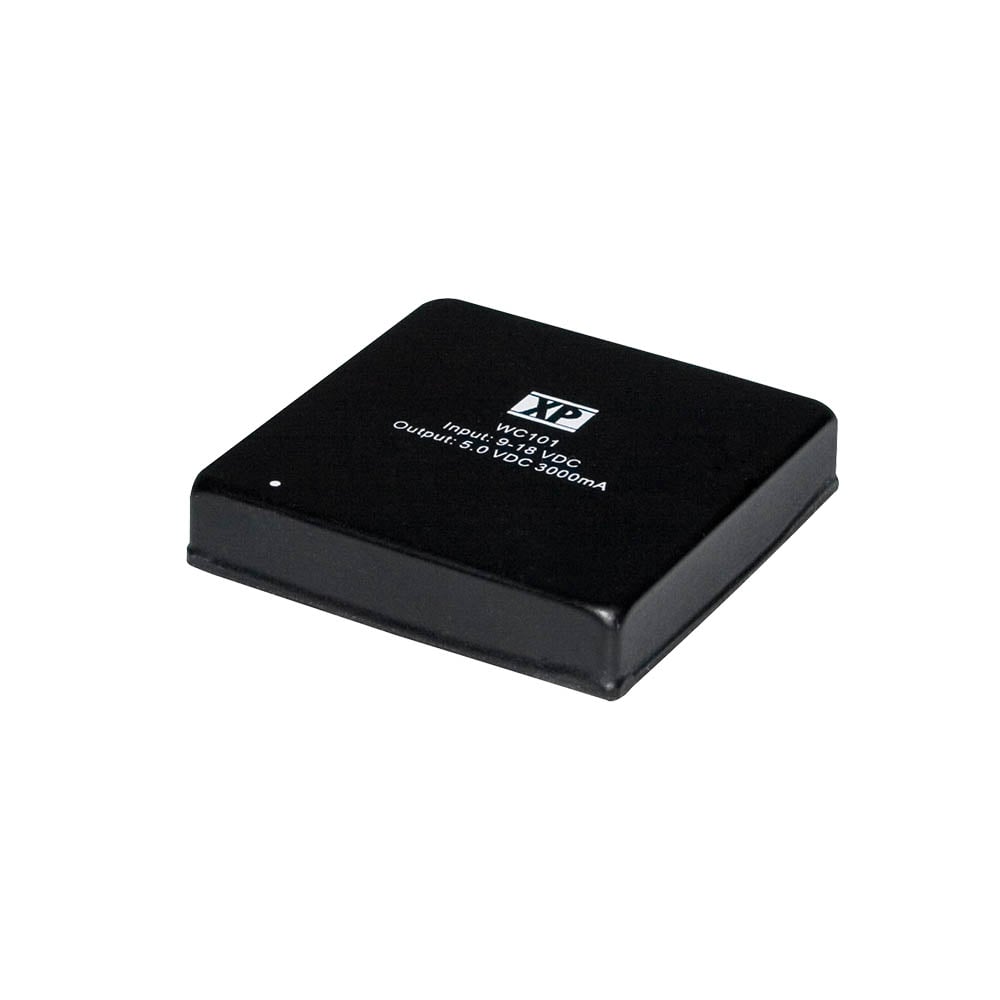

15 Watts

  • 2:1 Input Range
  • Isolated Outputs
  • Efficiency to 81%
  • Fully Regulated Outputs
  • Input Pi Filter
  • Six-sided Shield
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
WC101 9 to 18 Vdc 5 V / 3 A
15W Request Sample Stock Check
WC102 9 to 18 Vdc 12 V / 1.25 A
15W Request Sample Stock Check
WC103 9 to 18 Vdc 15 V / 1 A
15W Request Sample Stock Check
WC104 9 to 18 Vdc 5 V / 1.5 A
-5 V / -1.5 A
15W Request Sample Stock Check
WC105 9 to 18 Vdc 12 V / 0.625 A
-12 V / -0.625 A
15W Request Sample Stock Check
WC106 9 to 18 Vdc 15 V / 0.5 A
-15 V / -0.5 A
15W Request Sample Stock Check
WC201 18 to 36 Vdc 5 V / 3 A
15W Request Sample Stock Check
WC202 18 to 36 Vdc 12 V / 1.25 A
15W Request Sample Stock Check
WC203 18 to 36 Vdc 15 V / 1 A
15W Request Sample Stock Check
WC204 18 to 36 Vdc 5 V / 1.5 A
-5 V / -1.5 A
15W Request Sample Stock Check
WC205 18 to 36 Vdc 12 V / 0.625 A
-12 V / -0.625 A
15W Request Sample Stock Check
WC206 18 to 36 Vdc 15 V / 0.5 A
-15 V / -0.5 A
15W Request Sample Stock Check
WC301 36 to 72 Vdc 5 V / 3 A
15W Request Sample Stock Check
WC302 36 to 72 Vdc 12 V / 1.25 A
15W Request Sample Stock Check
WC303 36 to 72 Vdc 15 V / 1 A
15W Request Sample Stock Check
WC304 36 to 72 Vdc 5 V / 1.5 A
-5 V / -1.5 A
15W Request Sample Stock Check
WC305 36 to 72 Vdc 12 V / 0.625 A
-12 V / -0.625 A
15W Request Sample Stock Check
WC306 36 to 72 Vdc 15 V / 0.5 A
-15 V / -0.5 A
15W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    WC: 2.00 x 2.00 x 0.40 in (50.8 x 50.8 x 10.2 mm)
  • Input Voltage:
    12 V (9-18 VDC)
    24 V (18-36 VDC)
    48 V (36-72 VDC)
  • Efficiency:
    75-81%
  • Operating Temp:
    -25 °C to +70 °C
