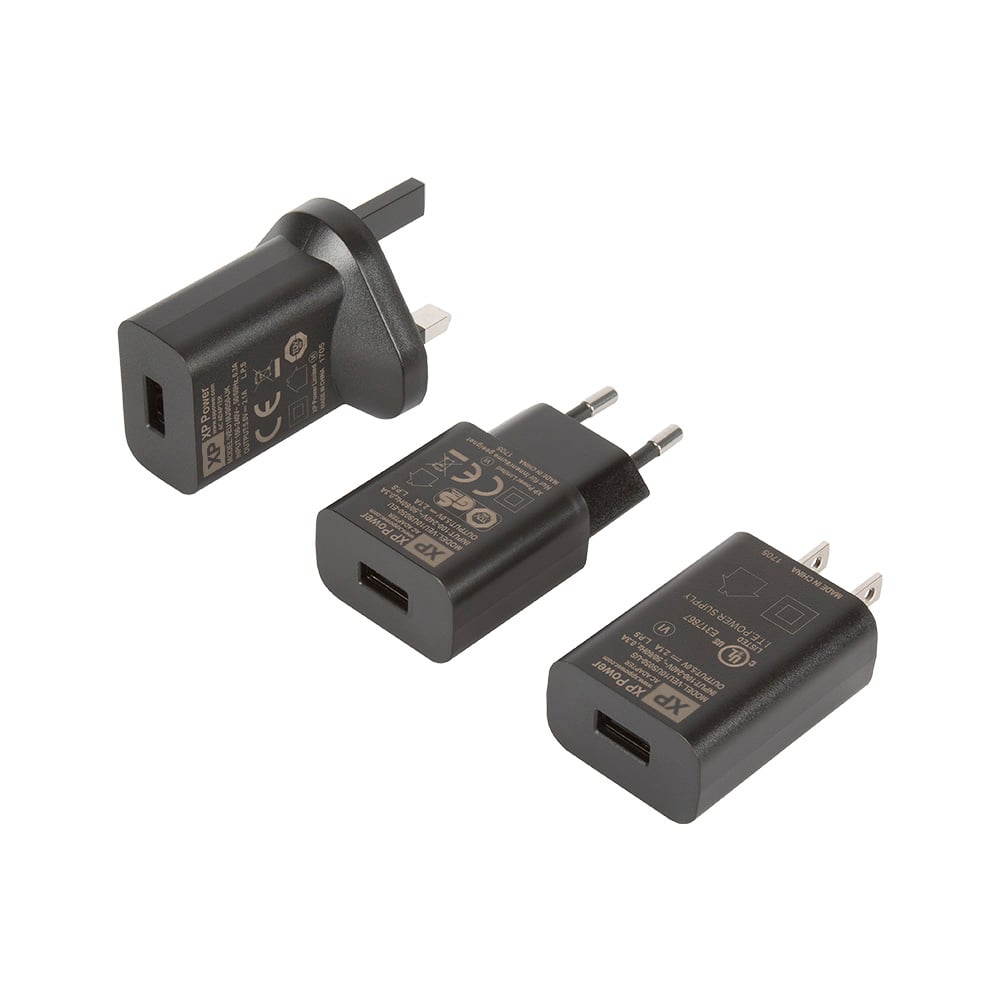

VEU10

+ Click To Enlarge

10 Watts

  • USB Power Adaptor
  • Energy Efficiency Level VI/li>
  • European CoC Tier 2
  • Fixed Mains Connectors
  • Universal Input
  • Output Voltage 5.0 V
  • Class II Construction
  • Low Cost
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
VEU10US050-UK 90 to 264 Vac 5 V / 2.1 A
10 W Request Sample Stock Check
VEU10US050-US 90 to 264 Vac 5 V / 2.1 A
10 W Request Sample Stock Check
VEU10US050-EU 90 to 264 Vac 5 V / 2.1 A
10 W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    VEU (Case Only):
    -US: 1.45 x 0.86 x 2.0” (37.0 x 22.0 x 50.8 mm)
    -EU: 1.45 x 0.86 x 2.2” (37.0 x 22.0 x 56.5 mm)
    -UK: 1.92 x 1.68 x 2.0” (48.8 x 42.8 x 50.8 mm)
  • Input Voltage:
    90 to 264 Vac
  • No Load Input Power:
    <0.075 W
  • Harmonic Currents:
    EN61000-3-2, Class A
  • Efficiency:
    Energy Efficiency Level VI and CoC Tier 2
  • Operating Temp:
    0 to +60 °C, Derate from 100% load at 40 °C to 50% load at 60 °C
  • Isolation:
    Input to Output 3000 VAC
  • Worldwide Safety Approvals:
    IEC60950-1
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL/cUL60950-1, approved as limited power source (LPS)
  • Other Safety Approvals:
    China Compulsory Certification
  • EMC:
    Conducted & Radiated EN55032, Level B
