Product
Product

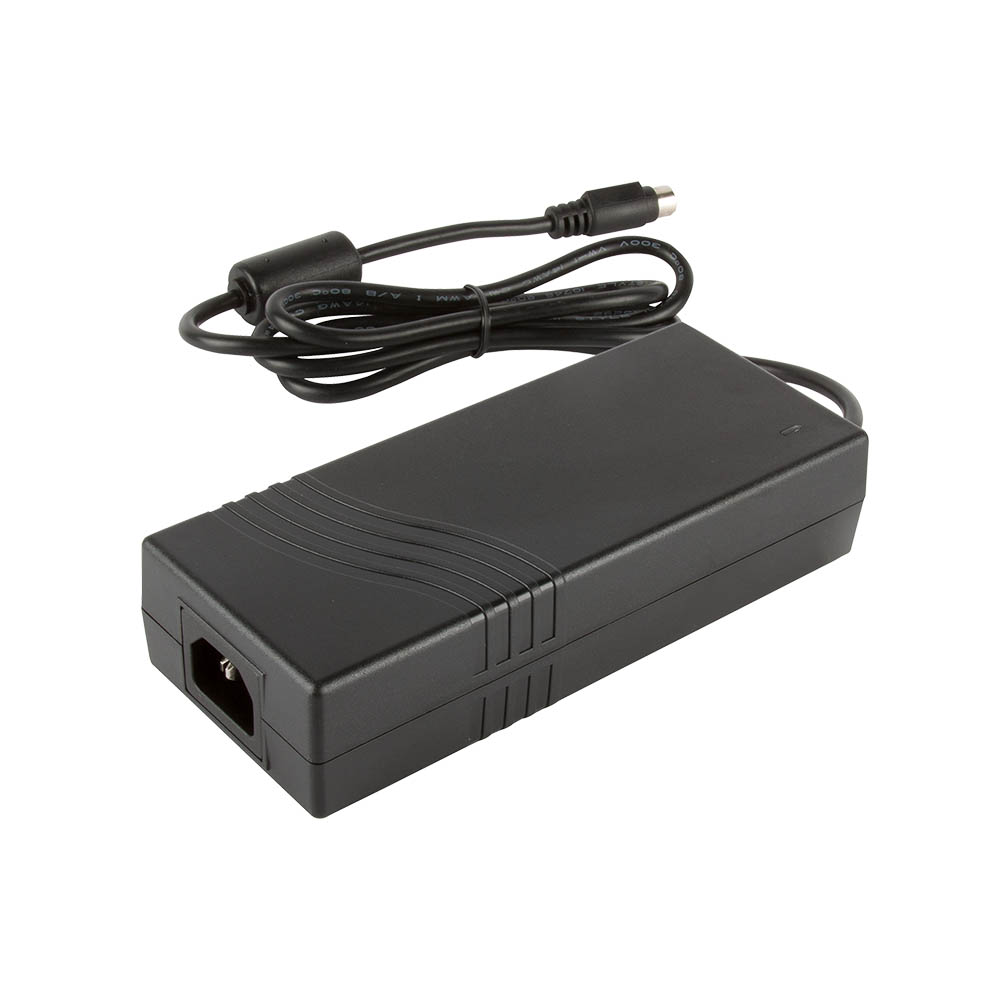

VES120
+ Click To Enlarge
Tweet
120 Watts
Energy Efficiency Level VI
European CoC Tier 2
High Power Density
Single Outputs from 12 V to 24 V
<0.15 W Standby Power
China Compulsory Certification (CCC) Qualified
0 °C to 60 °C Operation
Optional Output Connector
Low Cost
Models
Datasheets
Specifications
Approval Documents
3D Models
Model Name
Input
Output
Power
VES120PS12
90 to 264 Vac
12 V / 10 A
120W
Request Sample
Stock Check
VES120PS19
90 to 264 Vac
19 V / 6.32 A
120W
Request Sample
Stock Check
VES120PS24
90 to 964 Vac
24 V / 5 A
120W
Request Sample
Stock Check
Short Form Datasheet
Short Form Datasheet
Dimensions:
VES120: 6.61 x 2.80 x 1.48” (168.0 x 71.0 x 37.5 mm)
Input Voltage:
90 to 264 VAC
No Load Input Power:
0.15 W max
Harmonic Currents:
EN61000-3-2 Class A
Efficiency:
89% typical
Operating Temp:
0 °C to +60 °C. Derate from 100% load at 40 °C to 50% load at 60 °C
Isolation:
3000 VAC Input to Output
1500 VAC Input to Ground
Output return is connected to input ground
Worldwide Safety Approvals:
IEC60950-1
European Safety Approvals:
EN60950-1
US Safety Approvals:
UL60950-1
Other Safety Approvals:
China Compulsory Certification, GB4943
EMC:
EN55032 Level B conducted & radiated
Declaration of Conformity
Declaration of Conformity
TUV Certificate
TUV Certificate
UL Report
UL Report
CB Certificate
CB Certificate
Unfortunately there are no 3D models available for this product.
