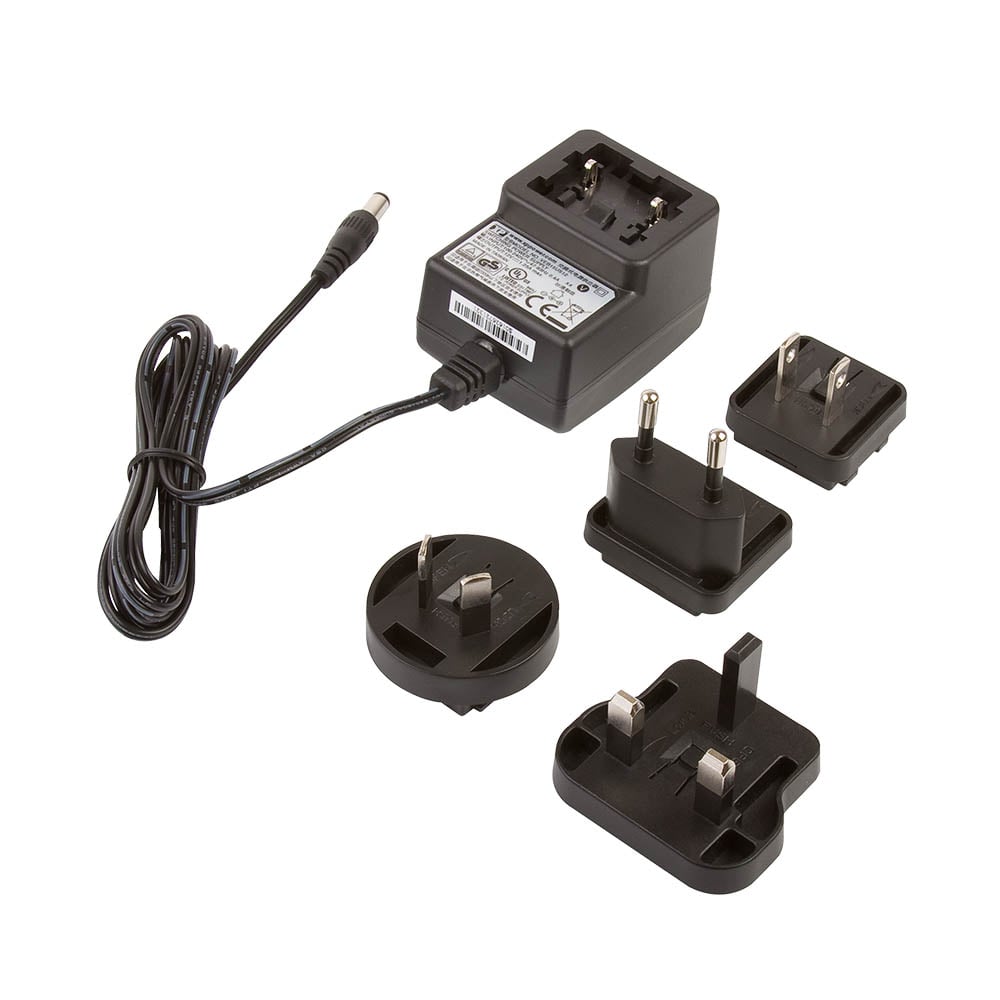

VEB15

+ Click To Enlarge

12-15 Watts

  • Energy Efficiency Level VI for -L6 version
  • CEC2008, EISA2007 & ErP Compliant
  • Interchangeable Connectors
  • Universal Input
  • Output Voltages from 5.0 V to 48.0 V
  • Class II Construction
  • Low Cost
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
VEB15US05 90 to 264 Vac 5 V / 2.4 A
15W Request Sample Stock Check
VEB15US09 90 to 264 Vac 9 V / 1.5 A
15W Request Sample Stock Check
VEB15US12 90 to 264 Vac 12 V / 1.25 A
15W Request Sample Stock Check
VEB15US15 90 to 264 Vac 15 V / 1 A
15W Request Sample Stock Check
VEB15US24 90 to 264 Vac 24 V / 0.63 A
15W Request Sample Stock Check
VEB15US48 90 to 264 Vac 48 V / 0.32 A
15W Request Sample Stock Check
VEB15US05-US-L6 90 to 264 Vac 5 V / 2.4 A
12 W Request Sample Stock Check
VEB15US09-US-L6 90 to 264 Vac 9 V / 1.5 A
13.5 W Request Sample Stock Check
VEB15US12-US-L6 90 to 264 Vac 12 V / 1.25 A
15 W Request Sample Stock Check
VEB15US15-US-L6 90 to 264 Vac 15 V / 1 A
15 W Request Sample Stock Check
VEB15US24-US-L6 90 to 264 Vac 24 V / 0.63 A
15 W Request Sample Stock Check
VEB15US48-US-L6 90 to 264 Vac 48 V / 0.32 A
15 W Request Sample Stock Check
VEB15US05-UK-L6 90 to 264 Vac 5 V / 2.4 A
12 W Request Sample Stock Check
VEB15US09-UK-L6 90 to 264 Vac 9 V / 1.5 A
13.5 Request Sample Stock Check
VEB15US12-UK-L6 90 to 264 Vac 12 V / 1.25 A
15 W Request Sample Stock Check
VEB15US15-UK-L6 90 to 264 Vac 15 V / 1 A
15 W Request Sample Stock Check
VEB15US24-UK-L6 90 to 264 Vac 24 V / 0.63 A
15 W Request Sample Stock Check
VEB15US48-UK-L6 90 to 264 Vac 48 V / 0.32 A
15 W Request Sample Stock Check
VEB15US05-EU-L6 90 to 264 Vac 5 V / 2.4 A
12 W Request Sample Stock Check
VEB15US09-EU-L6 90 to 264 Vac 9 V / 1.5 A
13.5 W Request Sample Stock Check
VEB15US12-EU-L6 90 to 264 Vac 12 V / 1.25 A
15 W Request Sample Stock Check
VEB15US15-EU-L6 90 to 264 Vac 15 V / 1 A
15 W Request Sample Stock Check
VEB15US24-EU-L6 90 to 264 Vac 24 V / 0.63 A
15 W Request Sample Stock Check
VEB15US48-EU-L6 90 to 264 Vac 48 V / 0.32 A
15 W Request Sample Stock Check

Short Form Datasheet

Short Form Datasheet -L6 Version

  • Dimensions:
    VEB15: 2.36 x 1.71 x 1.58 in (60.0 x 43.5 x 40.2 mm)
  • Input Voltage:
    90-264 VAC
  • No Load Input Power:
    <0.2 W
  • Harmonic Currents:
    EN61000-3-2 class A
  • Efficiency:
    78-86%
  • Operating Temp:
    0 °C to +60 °C, derate linearly from 100% load at 40 °C to 50% load at 60 °C
  • Isolation:
    3000 VAC Input to Output
  • Worldwide Safety Approvals:
    IEC60950-1
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL/cUL60950-1
  • Other Safety Approvals:
    China Compulsory Certification (CCC) qualified
    Approved as Limited Power Source
  • EMC:
    EN55022, level B conducted & radiated

UL Certificate

CB Report

Declaration of Conformity

TUV Certificate

Unfortunately there are no 3D models available for this product.
