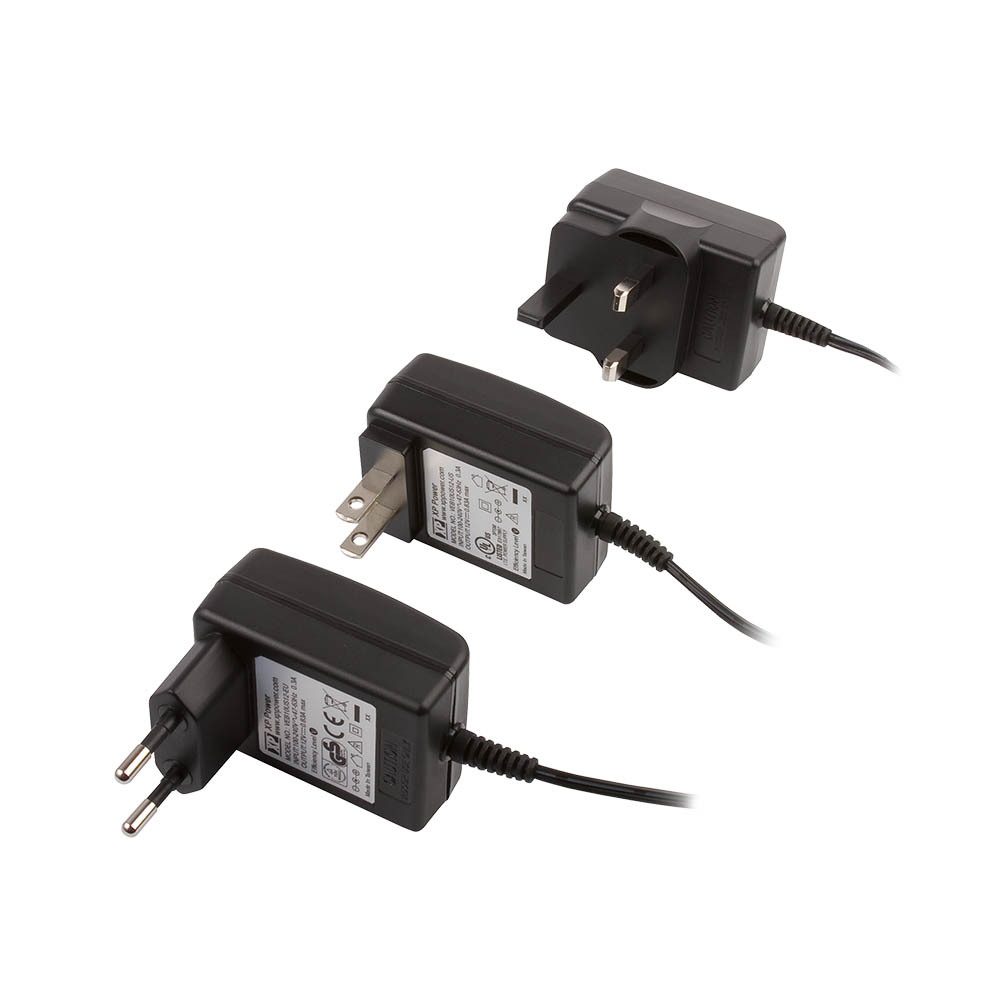

VEB10

+ Click To Enlarge

8-10 Watts

  • Energy Efficiency Level VI for -L6 version
  • CEC2008, EISA2007 & ErP Compliant
  • +70 °C Operating Temperature
  • Universal Input
  • Output Voltages from 5.0 V to 48.0 V
  • Class II Construction
  • Low Cost
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
VEB10US05 90 to 264 Vac 5 V / 1.6 A
10W Request Sample Stock Check
VEB10US09 90 to 264 Vac 9 V / 1.11 A
10W Request Sample Stock Check
VEB10US12 90 to 264 Vac 12 V / 0.83 A
10W Request Sample Stock Check
VEB10US15 90 to 264 Vac 15 V / 0.66 A
10W Request Sample Stock Check
VEB10US24 90 to 264 Vac 24 V / 0.42 A
10W Request Sample Stock Check
VEB10US48 90 to 264 Vac 48 V / 0.21 A
10W Request Sample Stock Check
VEB10US05-UK-L6 90 to 264 Vac 5 V / 1.6 A
8 W Request Sample Stock Check
VEB10US09-UK-L6 90 to 264 Vac 9 V / 1.11 A
10 W Request Sample Stock Check
VEB10US12-UK-L6 90 to 264 Vac 12 V / 0.83 A
10 W Request Sample Stock Check
VEB10US15-UK-L6 90 to 264 Vac 15 V / 0.66 A
10 W Request Sample Stock Check
VEB10US24-UK-L6 90 to 264 Vac 24 V / 0.42 A
10 W Request Sample Stock Check
VEB10US48-UK-L6 90 to 264 Vac 48 V / 0.21 A
10 W Request Sample Stock Check
VEB10US05-US-L6 90 to 264 Vac 5 V / 1.6 A
8 W Request Sample Stock Check
VEB10US09-US-L6 90 to 264 Vac 9 V / 1.11 A
10 W Request Sample Stock Check
VEB10US12-US-L6 90 to 264 Vac 12 V / 0.83 A
10 W Request Sample Stock Check
VEB10US15-US-L6 90 to 264 Vac 15 V / 0.66 A
10 W Request Sample Stock Check
VEB10US24-US-L6 90 to 264 Vac 24 V / 0.42 A
10 W Request Sample Stock Check
VEB10US48-US-L6 90 to 264 Vac 48 V / 0.21 A
10 W Request Sample Stock Check
VEB10US05-EU-L6 90 to 264 Vac 5 V / 1.6 A
8 W Request Sample Stock Check
VEB10US09-EU-L6 90 to 264 Vac 12 V / 0.83 A
10 W Request Sample Stock Check
VEB10US12-EU-L6 90 to 264 Vac 12 V / 0.83 A
10 W Request Sample Stock Check
VEB10US15-EU-L6 90 to 264 Vac 15 V / 0.66 A
10 W Request Sample Stock Check
VEB10US24-EU-L6 90 to 264 Vac 24 V / 0.42 A
10 W Request Sample Stock Check
VEB10US48-EU-L6 90 to 264 Vac 48 V / 0.21 A
10 W Request Sample Stock Check

Short Form Datasheet

Short Form Datasheet -L6 Version

  • Dimensions:
    VEB-US: 2.32 x 1.73 x 1.14 in (59.0 x 44.0 x 30.0 mm)
    VEB-EU: 2.32 x 1.73 x 2.10 in (59.0 x 44.0 x 53.3 mm)
    VEB-UK: 2.32 x 1.90 x 1.36 in (59.0 x 49.4 x 34.7 mm))
  • Input Voltage:
    90-264 VAC
  • No Load Input Power:
    <0.3 W
  • Harmonic Currents:
    EN61000-3-2 class A
  • Efficiency:
    73-80%
  • Operating Temp:
    0 °C to +70 °C, derate linearly from 100% load at 40 °C to 50% load at 70 °C
  • Isolation:
    3000 VAC Input to Output
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL60950-1
  • EMC:
    EN55022, level B conducted & radiated

TUV Certificate

UL Certificate

Declaration of Conformity - VEB10-EU

Declaration of Conformity - VEB10-UK

Declaration of Conformity - VEB10

TUV Certificate - VEB10-EU

Unfortunately there are no 3D models available for this product.
