Product
Product

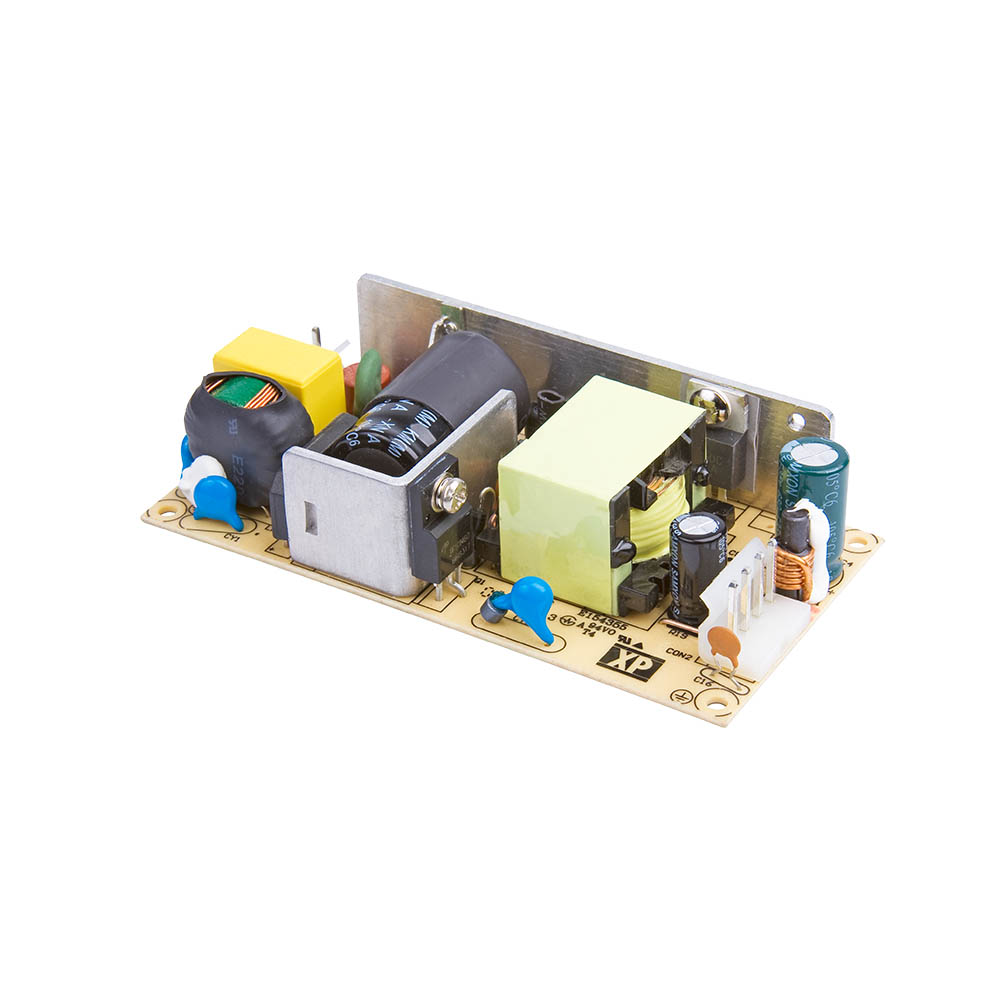

VCT60
+ Click To Enlarge
Tweet
60 Watts
Low Cost
Single Outputs from 5 V to 30 V
Peak Load Capability
Convection-cooled
<0.5 W No Load Input Power
2” x 4” Package
Fits 1U Applications
Models
Datasheets
Specifications
Approval Documents
3D Models
Model Name
Input
Output
Power
VCT40US05
85 to 264 Vac
5 V / 8 A
60W
Request Sample
Stock Check
VCT60US12
85 to 264 Vac
12 V / 5 A
60W
Request Sample
Stock Check
VCT60US15
85 to 264 Vac
15 V / 4 A
60W
Request Sample
Stock Check
VCT60US24
85 to 264 Vac
24 V / 2.5 A
60W
Request Sample
Stock Check
Short Form Datasheet
Short Form Datasheet
Dimensions:
VCT60: 4.00 x 2.00 x 0.94 in (101.6 x 50.8 x 24.1 mm)
Input Voltage:
85-264 VAC
No Load Input Power:
<0.5 W
Harmonic Currents:
EN61000-3-2 class A
Efficiency:
82-88%
Operating Temp:
-10 ?C to +70 ?C derate from 100% load at 50 ?C to 50% load at 70 ?C
Isolation:
3000 VAC Input to Output
1500 VAC Input to Ground
500 VDC Output to Ground
Worldwide Safety Approvals:
IEC60950-1
European Safety Approvals:
EN60950-1
US Safety Approvals:
UL60950-1
EMC:
EN55022, level B conducted & radiated
UL Certificate
UL Certificate
Declaration of Conformity
Declaration of Conformity
TUV Certificate
TUV Certificate
CB Certificate
CB Certificate
3D Models
VCT60 STEP Model
