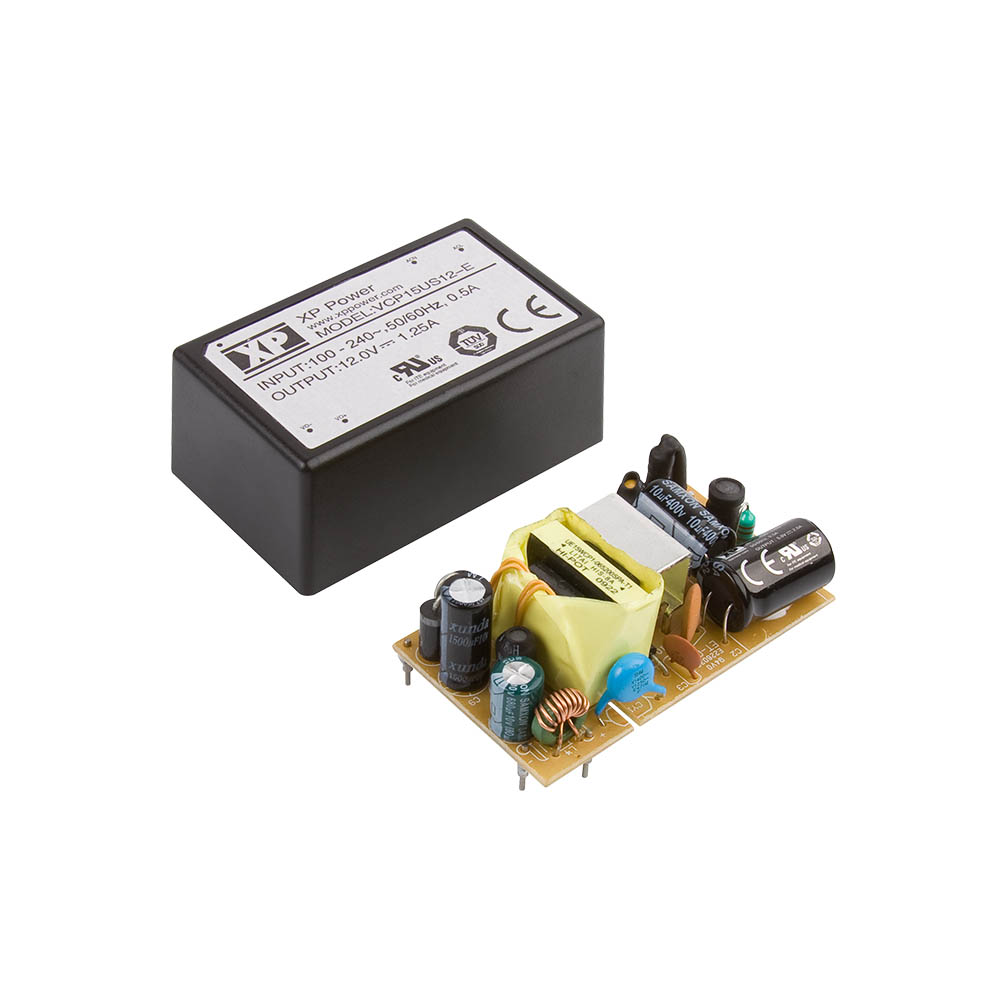

VCP15

+ Click To Enlarge

15 Watts

  • Low Cost
  • Output Voltages from 5 to 24 V
  • PCB Mounting
  • Open Frame & Encapsulated Versions
  • IT & Medical Approvals
  • Class II Construction
  • No Load Input Power <0.3 W
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
VCP15US05 90 to 264 Vac 5 V / 2 A
15W Request Sample Stock Check
VCP15US05-E 90 to 264 Vac 5 V / 2 A
15W Request Sample Stock Check
VCP15US12 90 to 264 Vac 12 V / 1.25 A
15W Request Sample Stock Check
VCP15US12-E 90 to 264 Vac 12 V / 1.25 A
15W Request Sample Stock Check
VCP15US15 90 to 264 Vac 15 V / 0.9 A
15W Request Sample Stock Check
VCP15US15-E 90 to 264 Vac 15 V / 0.9 A
15W Request Sample Stock Check
VCP15US24 90 to 264 Vac 24 V / 0.63 A
15W Request Sample Stock Check
VCP15US24-E 90 to 264 Vac 24 V / 0.63 A
15W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    VCP15: 2.55 x 1.49 x 1.09 in (65.0 x 38.0 x 27.7 mm)
    VCP15-E: 2.72 x 1.65 x 1.11 in (69.0 x 42.0 x 28.2 mm)
  • Input Voltage:
    90-264 VAC
  • No Load Input Power:
    <0.3 W
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    74-84%
  • Operating Temp:
    0 °C to +70 °C, derate from 100% load at 50 °C to 50% load at 70 °C
  • Isolation:
    4000 VAC Input to Output
  • Worldwide Safety Approvals:
    IEC60950-1, IEC60601-1
  • European Safety Approvals:
    EN60950-1, EN60601-1
  • US Safety Approvals:
    cUL60950-1, cUL60601-1
  • EMC:
    EN55011/22, level B conducted & radiated
