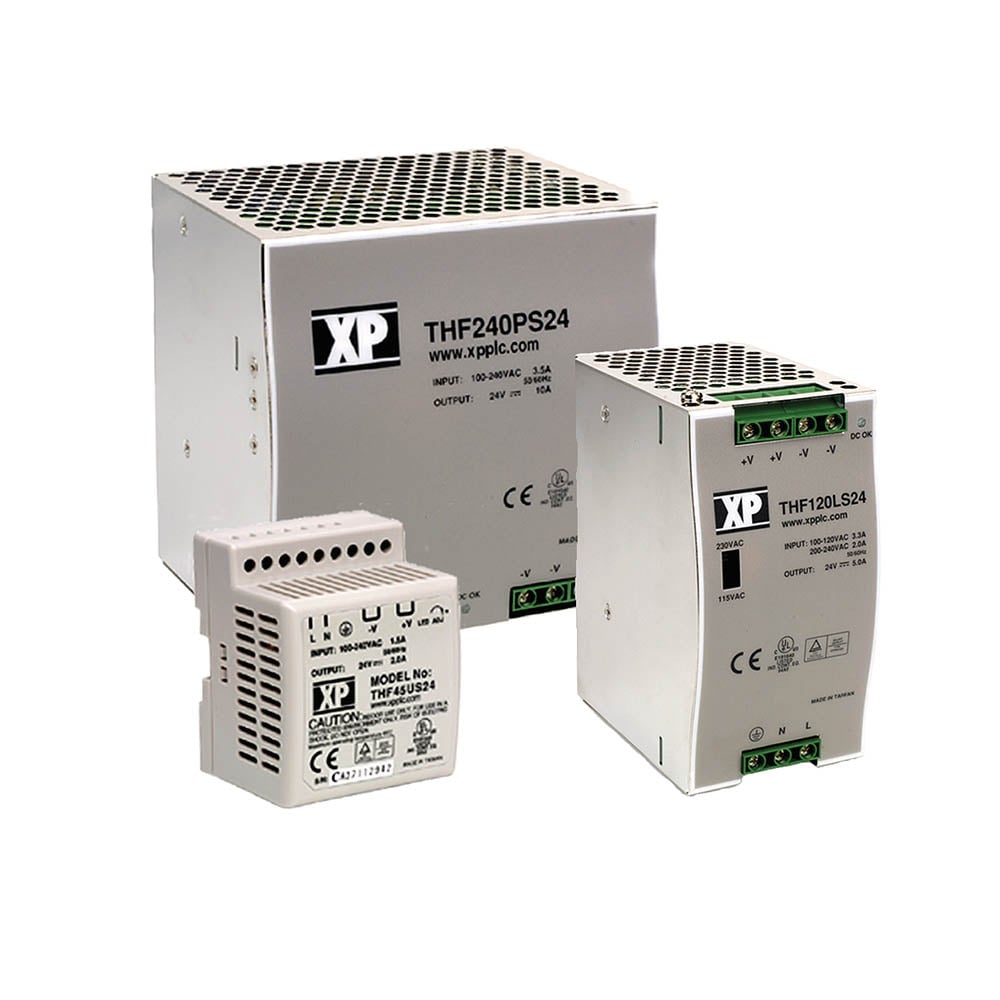

THF

THF

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

25-480 Watts

  • Wide Adjustment Range
  • Rugged for Industrial Use
  • High Efficiency
  • Overvoltage Protection
  • Overcurrent Protection
  • Overtemperature Protection
  • Lightweight Design
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
THF45US05 90 to 264 Vac 5 V / 5 A
25W Request Sample Stock Check
THF45US12 90 to 264 Vac 12 V / 3.5 A
42W Request Sample Stock Check
THF45US15 90 to 264 Vac 15 V / 2.8 A
42W Request Sample Stock Check
THF45US24 90 to 264 Vac 24 V / 2 A
48W Request Sample Stock Check
THF75US12 90 to 264 Vac 12 V / 6.3 A
76W Request Sample Stock Check
THF75US24 90 to 264 Vac 24 V / 3.2 A
77W Request Sample Stock Check
THF75US48 90 to 264 Vac 48 V / 1.6 A
77W Request Sample Stock Check
THF120LS12 90 to 264 Vac 12 V / 10 A
120W Request Sample Stock Check
THF120US24 90 to 264 Vac 24 V / 5 A
120W Request Sample Stock Check
THF120US48 90 to 264 Vac 48 V / 2.5 A
120W Request Sample Stock Check
THF240PS24 90 to 264 Vac 24 V / 10 A
240W Request Sample Stock Check
THF240PS48 90 to 264 Vac 48 V / 5 A
240W Request Sample Stock Check
THF480LS24 90 to 264 Vac 24 V / 20 A
480W Request Sample Stock Check
THF480LS48 90 to 264 Vac 48 V / 10 A
480W Request Sample Stock Check
THF480PS24 90 to 264 Vac 24 V / 20 A
480W Request Sample Stock Check
THF480PS48 90 to 264 Vac 48 V / 10 A
480W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    THF45: 3.66 x 3.07 x 2.63 in (93.0 x 78.0 x 66.8 mm)
    THF75: 3.94 x 4.93 x 2.19 in (100.0 x 125.2 x 55.5 mm)
    THF120: 3.94 x 4.93 x 2.58 in (100.0 x 125.2 x 65.5 mm)
    THF240: 4.94 x 4.93 x 3.94 in (125.5 x 125.2 x 100.0 mm)
    THF480: 8.94 x 4.93 x 3.94 in (227.0 x 125.2 x 100.0 mm)
  • Input Voltage:
    90-264 VAC except:
    90-132/176-264 VAC switch-selectable (THF120 and THF480LSxx models) and 180-264 VAC (THF480PS models)
  • Efficiency:
    72-89% (see datasheet)
  • Operating Temp:
    See datasheet
  • Isolation:
    3000 VAC Input to Output
    1500 VAC Input to Ground
    500 VAC Output to Ground
  • European Safety Approvals:
    EN60950
  • US Safety Approvals:
    UL508, (UL60950 on 120, 240 & 480 W models)
  • EMC:
    EN55022/55011, Class B conducted and radiated, EN61000-3-2, 3

Declaration of Conformity

TUV Certificate

UL Certificate

Unfortunately there are no 3D models available for this product.
