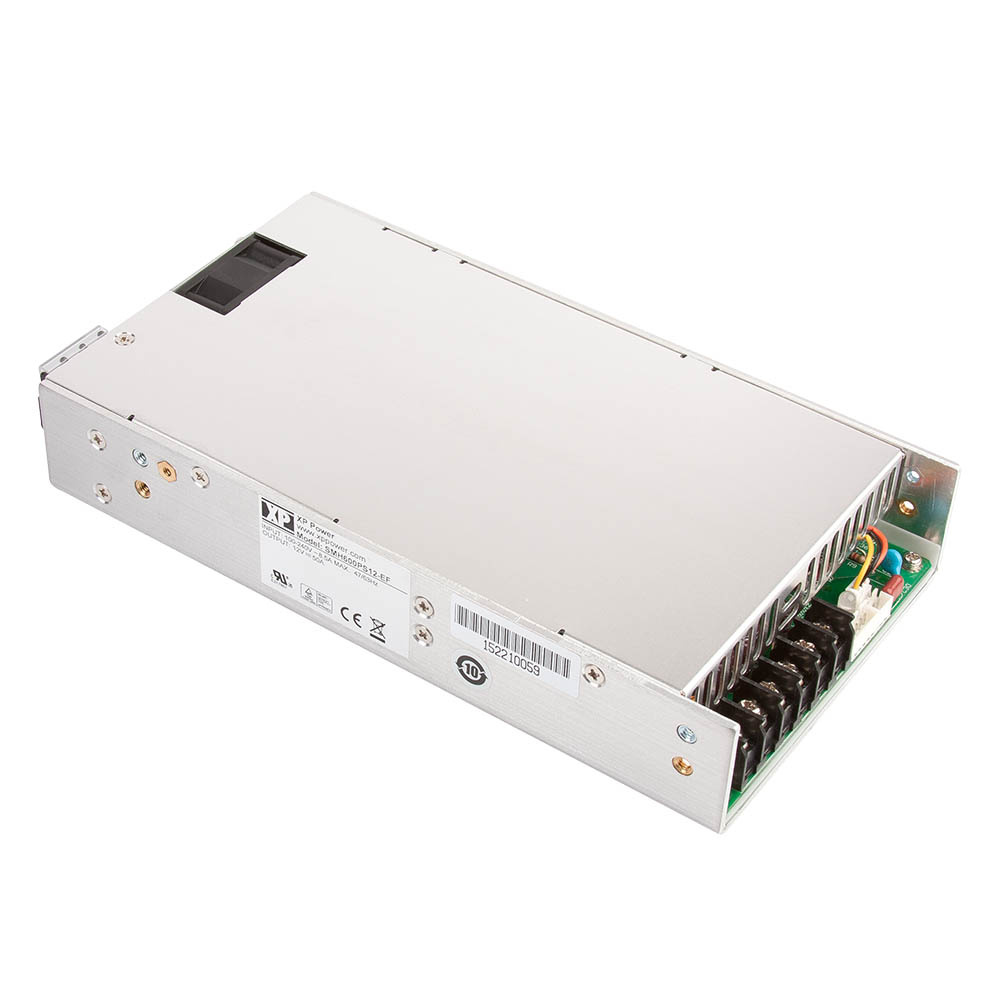

SMH600

+ Click To Enlarge

600 Watts

  • Single and Dual Outputs
  • Up to 900 W Peak Power on Single Output Versions
  • Power Good, Remote On/Off and Remote Sense
  • Connector Options
  • Forced-cooled
  • U-Channel & End-Fan Versions Fit 1U Applications
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
SMH600PD0512 90 to 264 Vac 5 V / 50 A
12 V / 33 A
600W Request Sample Stock Check
SMH600PD0524 90 to 264 Vac 5 V / 50 A
24 V / 17 A
600W Request Sample Stock Check
SMH600PD1224 90 to 264 Vac 12 V / 33.33 A
24 V / 17 A
600W Request Sample Stock Check
SMH600PS03 90 to 264 Vac 3.3 V / 100 A
600W Request Sample Stock Check
SMH600PS05 90 to 264 Vac 5 V / 100 A
600W Request Sample Stock Check
SMH600PS12 90 to 264 Vac 12 V / 50 A
600W Request Sample Stock Check
SMH600PS15 90 to 264 Vac 15 V / 40 A
600W Request Sample Stock Check
SMH600PS18 90 to 264 Vac 18 V / 33.33 A
600W Request Sample Stock Check
SMH600PS24 90 to 264 Vac 24 V / 25 A
600W Request Sample Stock Check
SMH600PS36 90 to 264 Vac 36 V / 16.6 A
600W Request Sample Stock Check
SMH600PS48 90 to 264 Vac 48 V / 12.5 A
600W Request Sample Stock Check
SMH600PS54 90 to 264 Vac 54 V / 11.1 A
600W Request Sample Stock Check
SMH600PS60 90 to 264 Vac 60 V / 10 A
600W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    SMH: 8.00 x 5.00 x 1.60 in (203.0 x 127.0 x 40.6 mm)
    SMH-EF: 9.10 x 5.00 x 1.60 in (231.1 x 127.0 x 40.6 mm)
    SMH-TF: 8.00 x 5.00 x 2.20 in (203.0 x 127.0 x 55.8 mm)
  • Input Voltage:
    90-264 VAC
  • Harmonic Currents:
    EN61000-3-2, class A,
    EN61000-3-2, class C for loads ?70%
  • Efficiency:
    Single output: 90% typical
    Dual output: 89% typical
  • Operating Temp:
    0 °C to +70 °C, derate at 2.5%/ °C from +50 °C to +70 °C
  • Isolation:
    3000 VAC Input to Output
    1500 VAC Input to Ground
    500 VDC Output to Ground
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL60950-1 (2007), CSA 22.2 No.60950-1-1:08, C22.2 No.60950-1
  • EMC:
    EN55022, level B conducted & radiated

CB Report

TUV Certificate

UL Certificate

Declaration of Conformity
