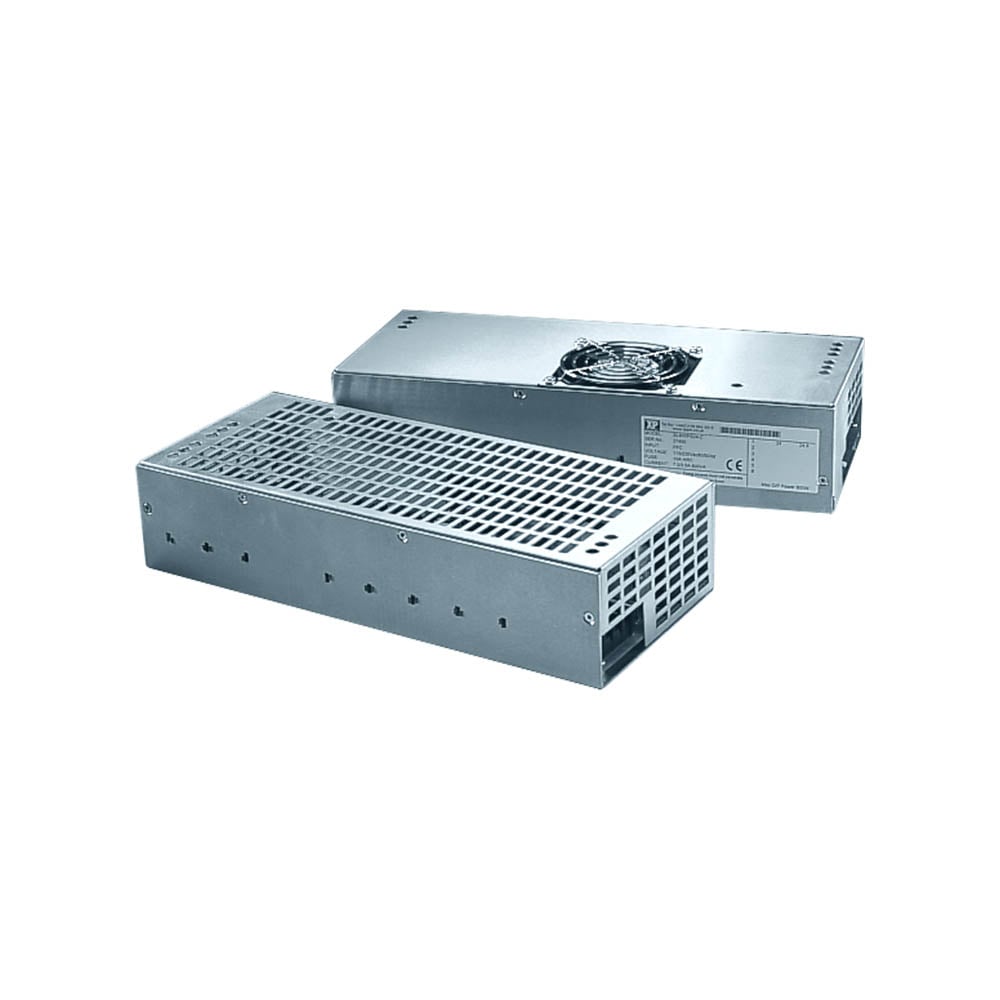

SL-SLM

+ Click To Enlarge

No longer manufactured

×

No longer manufactured

This series is no longer available, however there are now alternative products available that may suit your requirements.

  • Industrial (SL) & Medical (SLM) Versions
  • Output Voltages from 12 V to 96 V
  • Power Factor Corrected
  • Remote On/Off
  • Current Share
  • Power Fail Signal
  • Overtemperature Protection
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power

Short Form Datasheet

  • Dimensions:
    300 W: 11.70 x 4.95 x 2.61 in (300.0 x 127.0 x 67.0 mm)
    600 W: 11.70 x 4.95 x 2.77 in (300.0 x 127.0 x 71.0 mm)
  • Input Voltage:
    90-264 VAC (125-360 VDC)
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    85% typical
  • Operating Temp:
    -20 °C to +70 °C, derate from +40 °C to 50% power at +70 °C
  • Isolation:
    6000 VDC Input to Output (Y caps disconnected)
    2200 VDC Input to Ground
    2200 VDC Output to Chassis
  • US Safety Approvals:
    UL60950, CSA22.2 No.60950, UL2601-1, CSA C22.2 No.60601-1
  • EMC:
    EN55022, level B conducted
    EN55022, level A radiated

Unfortunately there are no 3D models available for this product.
