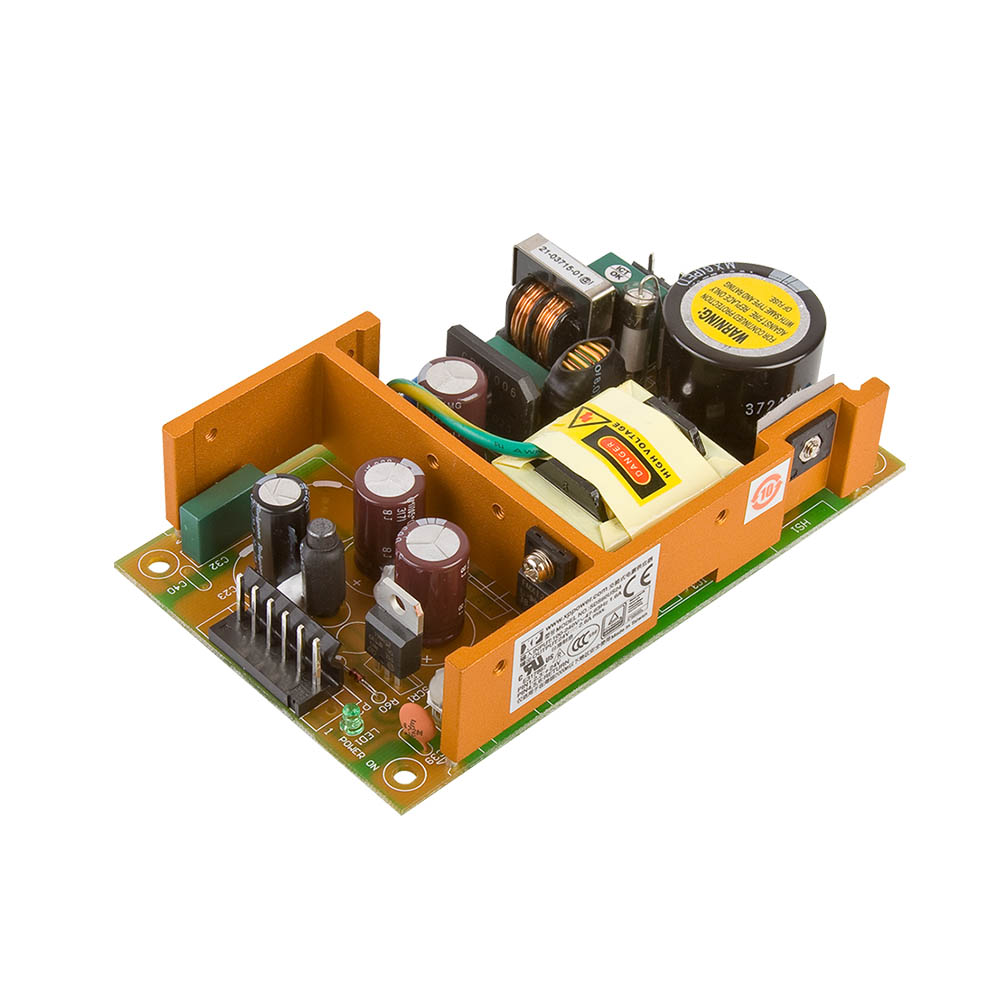

SDS60

SDS60

+ Click To Enlarge

60 Watts

  • Single, Dual, Triple & Quad Outputs
  • Output Voltages from 3.3 V to 48 V
  • Non -standard Outputs Available
  • Industry Standard 3” x 5” Package
  • Fits 1U Applications
  • Open Frame, U-Channel & Covered Versions
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
SDS60UD01 90 to 264 Vac 5 V / 7 A
12 V / 3 A
60W Request Sample Stock Check
SDS60UD04 90 to 264 Vac 3.3 V / 7 A
5 V / 5 A
60W Request Sample Stock Check
SDS60UQ00 90 to 264 Vac 3.3 V / 6 A
12 V / 3 A
-12 V / 0.8 A
-5 V / 0.8 A
60W Request Sample Stock Check
SDS60UQ01 90 to 264 Vac 3.3 V / 6 A
12 V / 3 A
-12 V / 0.8 A
5 V / 0.8 A
60W Request Sample Stock Check
SDS60UQ02 90 to 264 Vac 5 V / 6 A
12 V / 3 A
-12 V / 0.8 A
-5 V / 0.8 A
60W Request Sample Stock Check
SDS60UQ03 90 to 264 Vac 5 V / 6 A
12 V / 3 A
-12 V / 0.8 A
24 V / 0.8 A
60W Request Sample Stock Check
SDS60UQ04 90 to 264 Vac 5 V / 6 A
12 V / 3 A
-12 V / 0.8 A
-24 V / 0.8 A
60W Request Sample Stock Check
SDS60UQ05 90 to 264 Vac 5 V / 6 A
15 V / 3 A
-15 V / 0.8 A
-5 V / 0.8 A
60W Request Sample Stock Check
SDS60UQ06 90 to 264 Vac 5 V / 6 A
24 V / 1.8 A
-15 V / 0.1 A
12 V / 0.8 A
60W Request Sample Stock Check
SDS60US03 90 to 264 Vac 3.3 V / 15.1 A
60W Request Sample Stock Check
SDS60US05 90 to 264 Vac 5 V / 11 A
60W Request Sample Stock Check
SDS60US07 90 to 264 Vac 7 V / 8.6 A
60W Request Sample Stock Check
SDS60US09 90 to 264 Vac 9 V / 7 A
60W Request Sample Stock Check
SDS60US12 90 to 264 Vac 12 V / 5 A
60W Request Sample Stock Check
SDS60US15 90 to 264 Vac 15 V / 4.2 A
60W Request Sample Stock Check
SDS60US19 90 to 264 Vac 19 V / 3.3 A
60W Request Sample Stock Check
SDS60US24 90 to 264 Vac 24 V / 2.6 A
60W Request Sample Stock Check
SDS60US30 90 to 264 Vac 30 V / 2.1 A
60W Request Sample Stock Check
SDS60US36 90 to 264 Vac 36 V / 1.8 A
60W Request Sample Stock Check
SDS60US48 90 to 264 Vac 48 V / 1.3 A
60W Request Sample Stock Check
SDS60UT00 90 to 264 Vac 3.3 V / 6 A
12 V / 3 A
-12 V / 0.8 A
60W Request Sample Stock Check
SDS60UT01 90 to 264 Vac 3.3 V / 6 A
12 V / 3 A
-5 V / 0.8 A
60W Request Sample Stock Check
SDS60UT02 90 to 264 Vac 3.3 V / 6 A
12 V / 3 A
5 V / 0.8 A
60W Request Sample Stock Check
SDS60UT03 90 to 264 Vac 3.3 V / 5 A
5 V / 5 A
12 V / 1 A
60W Request Sample Stock Check
SDS60UT04 90 to 264 Vac 3.3 V / 5 A
5 V / 5 A
-12 V / 1 A
60W Request Sample Stock Check
SDS60UT05 90 to 264 Vac 5 V / 6 A
12 V / 3 A
-12 V / 0.8 A
60W Request Sample Stock Check
SDS60UT06 90 to 264 Vac 5 V / 6 A
12 V / 3 A
-5 V / 0.8 A
60W Request Sample Stock Check
SDS60UT07 90 to 264 Vac 5 V / 6 A
15 V / 3 A
-15 V / 0.8 A
60W Request Sample Stock Check
SDS60UT08 90 to 264 Vac 5 V / 6 A
24 V / 2 A
-24 V / 0.5 A
60W Request Sample Stock Check
SDS60UT09 90 to 264 Vac 5 V / 6 A
24 V / 2 A
-12 V / 0.8 A
60W Request Sample Stock Check
SDS60UT10 90 to 264 Vac 5 V / 6 A
24 V / 2 A
12 V / 0.8 A
60W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    SDS60: 5.00 x 3.00 x 1.20 in (127.0 x 76.2 x 30.5 mm)
  • Input Voltage:
    90-264 VAC (120-370 VDC)
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    80% typical, 230 VAC full load
  • Operating Temp:
    0 °C to +70 °C derate linearly from 100% load at +50 °C to 50% load at +70 °C
  • Isolation:
    3000 VAC Input to Output
    1500 VAC Input to Ground
    500 VDC Output to Ground
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL60950-1, CSA60950-1 per cUL
  • EMC:
    EN55022, level B conducted and radiated

TUV Certificate

UL Certificate

Declaration of Conformity

CB Certificate

Unfortunately there are no 3D models available for this product.
