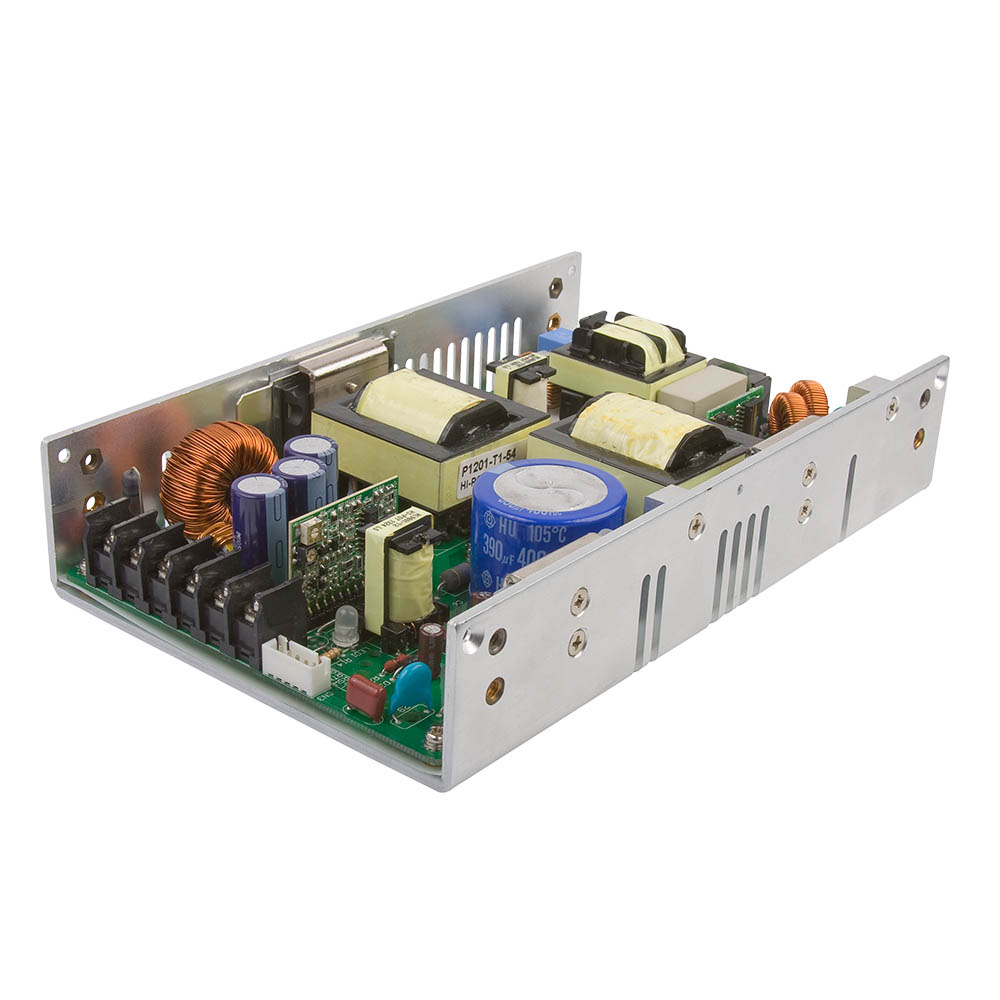

SDH400

+ Click To Enlarge

400 Watts

  • Convection-cooled
  • Single and Dual Outputs
  • Up to 700 W Peak Power on Single Output Versions
  • Power Good and Remote On/Off
  • Optional Connectors
  • Fits 1U Applications
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
SDH400PD0512 90 to 264 Vac 5 V / 35 A
12 V / 16.67 A
400W Request Sample Stock Check
SDH400PD0524 90 to 264 Vac 5 V / 35 A
24 V / 8.33 A
400W Request Sample Stock Check
SDH400PD1224 90 to 264 Vac 12 V / 25 A
24 V / 12.5 A
400W Request Sample Stock Check
SDH400PS03 90 to 264 Vac 3.3 V / 60 A
400W Request Sample Stock Check
SDH400PS05 90 to 264 Vac 5 V / 60 A
400W Request Sample Stock Check
SDH400PS12 90 to 264 Vac 12 V / 33.33 A
400W Request Sample Stock Check
SDH400PS15 90 to 264 Vac 15 V / 26.66 A
400W Request Sample Stock Check
SDH400PS18 90 to 264 Vac 18 V / 22.22 A
400W Request Sample Stock Check
SDH400PS24 90 to 264 Vac 24 V / 16.66 A
400W Request Sample Stock Check
SDH400PS36 90 to 264 Vac 36 V / 11.11 A
400W Request Sample Stock Check
SDH400PS48 90 to 264 Vac 48 V / 8.33 A
400W Request Sample Stock Check
SDH400PS54 90 to 264 Vac 54 V / 7.4 A
400W Request Sample Stock Check
SDH400PS60 90 to 264 Vac 60 V / 6.66 A
400W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    SDH: 8.00 x 5.00 x 1.60 in (203.0 x 127.0 x 40.6 mm)
  • Input Voltage:
    90-264 VAC
  • Harmonic Currents:
    EN61000-3-2 class A
    EN61000-3-2 class C for loads ?70%
  • Efficiency:
    Single output: 88% typical
    Dual output: 85% typical
  • Operating Temp:
    0 °C to +70 °C, derate at 2.5%/ °C from +50 °C to +70 °C
  • Isolation:
    3000 VAC Input to Output
    1500 VAC Input to Ground
    250 VDC Output to Ground
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL60950-1 (2007), CSA 22.2 No.60950-1-1:08, C22.2 No.60950-1
  • EMC:
    EN55022 Level B conducted & radiated
