JPS130

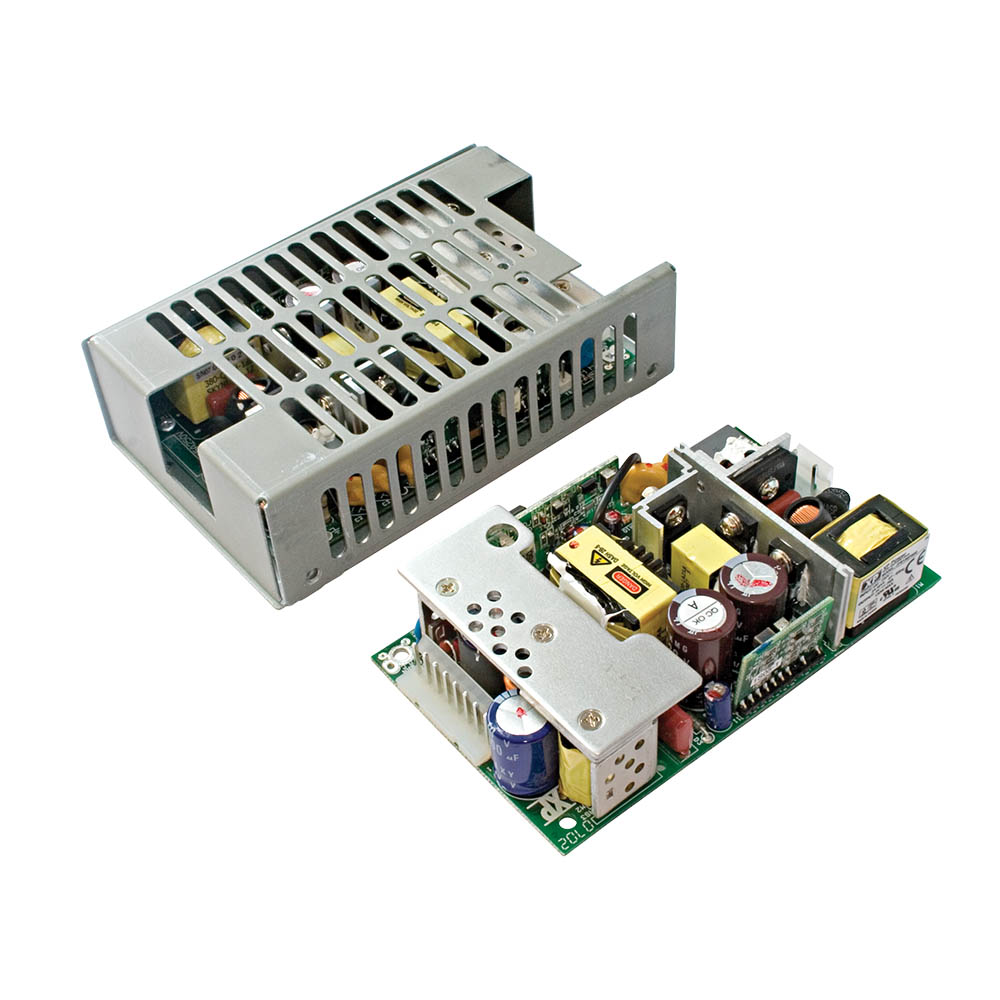

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

130 Watts

  • High Efficiency - up to 90%
  • Medical Approval (JPS130-M Versions)
  • 3" x 5" Footprint
  • 100 W Convection-cooled
  • 130 W Forced-cooled
  • Single & Multi Outputs
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
JPS130PS03 90 to 264 Vac, 130 to 370 Vdc 3.3 V / 30 A
130W Request Sample Stock Check
JPS130PS05 90 to 264 Vac, 130 to 370 Vdc 5 V / 26 A
130W Request Sample Stock Check
JPS130PS05-M 90 to 264 Vac, 130 to 370 Vdc 5 V / 26 A
130W Request Sample Stock Check
JPS130PT30 90 to 264 Vac, 130 to 370 Vdc 3.3 V / 15 A
5 V / 15 A
12 V / 0.5 A
130W Request Sample Stock Check
JPS130PT31 90 to 264 Vac, 130 to 370 Vdc 5 V / 15 A
12 V / 5 A
-12 V / 0.5 A
130W Request Sample Stock Check
JPS130PT31-M 90 to 264 Vac, 130 to 370 Vdc 5 V / 15 A
12 V / 4.1 A
-12 V / 1.1 A
130W Request Sample Stock Check
JPS130PT32-M 90 to 264 Vac, 130 to 370 Vdc 5 V / 15 A
15 V / 4.1 A
-15 V / 1.1 A
130W Request Sample Stock Check
JPS130PT34-M 90 to 264 Vac, 130 to 370 Vdc 5 V / 4 A
24 V / 4 A
12 V / 1 A
130W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    JPS130: 5.00 x 3.00 x 1.28 in (127.0 x 76.2 x 32.5 mm)
  • Input Voltage:
    90-264 VAC (130-370 VDC)
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    Up to 90% nominal line, full load
  • Operating Temp:
    0 °C to +70 °C, see datasheet
  • Isolation:
    3000 VAC Input to Output (JPS130),
    4000 VAC Input to Output (JPS130-M 2 x MOPP),
    1500 VAC Input to Ground (JPS130-M 1 x MOPP),
    500 VAC Output to Ground
  • European Safety Approvals:
    EN60950-1, EN60601-1, CE Mark LVD
  • US Safety Approvals:
    UL60950-1, CSA C22.2 No. 60950-1, UL60601-1, EN60601-1, CSA C22.2 No. 601.1
  • EMC:
    EN55022, Class B conducted
    FCC 20780, level B conducted
    EN60601-1-2, (JPS130-M)

Declaration of Conformity

UL Certificate

CB Report

TUV Certificate - JPS130 ITE

CB Certificate - JPS130 ITE

TUV Certificate - JPS130 Medical

TUV Certificate
