Product
Product

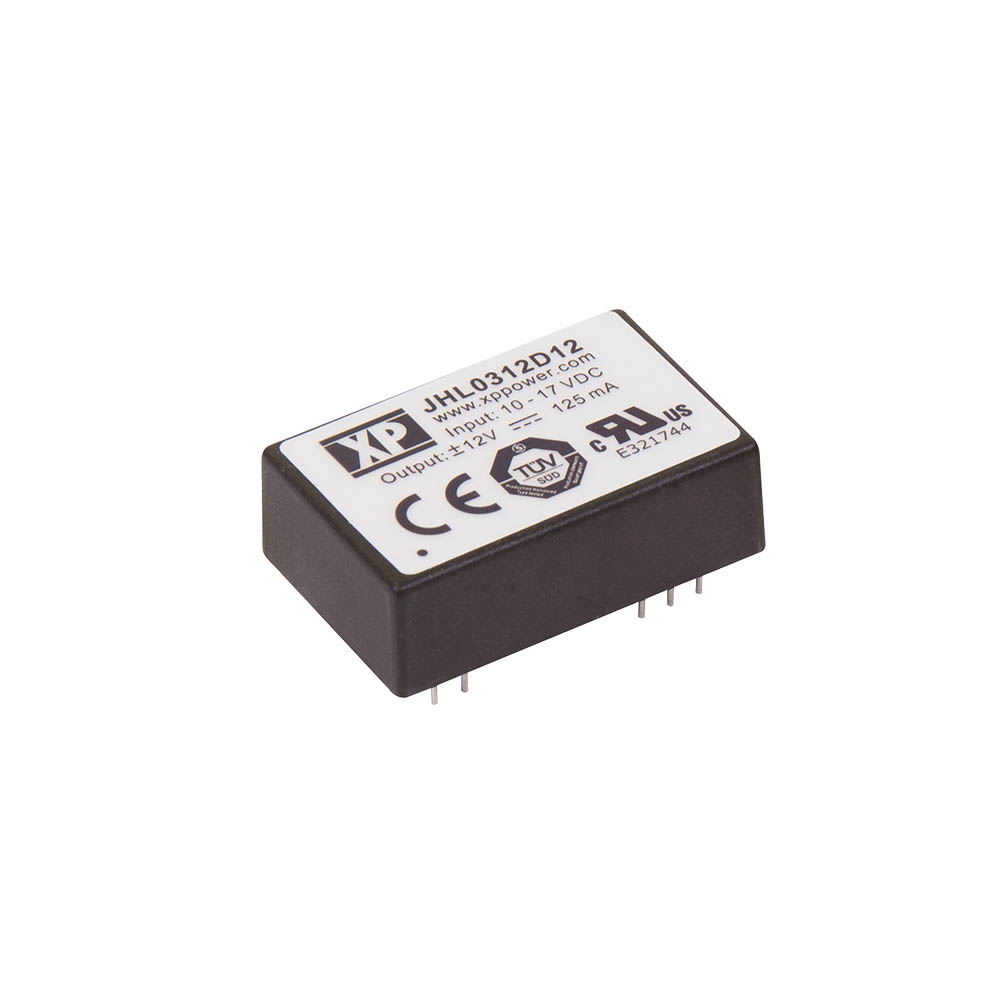

JHL03
+ Click To Enlarge
Tweet
3 Watts
International Medical Approvals
4000 VAC Reinforced Insulation
Meets IEC60601-1, 3rd Edition
2 MOPP Isolation at 250 VAC
2 μA Patient Leakage Current
DIP24 Package
EN55011 Level A With No External Components
3 Year Warranty
Models
Datasheets
Specifications
Approval Documents
3D Models
Model Name
Input
Output
Power
JHL0312S05
10 to 17 Vdc
5 V / 0.6 A
3W
Request Sample
Stock Check
JHL0312S12
10 to 17 Vdc
12 V / 0.25 A
3W
Request Sample
Stock Check
JHL0312S15
10 to 17 Vdc
15 V / 0.2 A
3W
Request Sample
Stock Check
JHL0312D12
10 to 17 Vdc
12 V / 0.125 A
-12 V / -0.125 A
3W
Request Sample
Stock Check
JHL0312D15
10 to 17 Vdc
15 V / 0.1 A
-15 V / -0.1 A
3W
Request Sample
Stock Check
JHL0324S05
20 to 30 Vdc
5 V / 0.6 A
3W
Request Sample
Stock Check
JHL0324S12
20 to 30 Vdc
12 V / 0.25 A
3W
Request Sample
Stock Check
JHL0324S15
20 to 30 Vdc
15 V / 0.2 A
3W
Request Sample
Stock Check
JHL0324D12
20 to 30 Vdc
12 V / 0.125 A
-12 V / -0.125 A
3W
Request Sample
Stock Check
JHL0324D15
20 to 30 Vdc
15 V / 0.1 A
-15 V / -0.1 A
3W
Request Sample
Stock Check
Short Form Datasheet
Short Form Datasheet
Dimensions:
JHL03: 1.25 x 0.80 x 0.40” (31.15 x 20.32 x 10.20 mm)
Input Voltage:
10 to 17 V (12 V nominal)
20 to 30 V (24 V nominal)
Efficiency:
80% typical
Operating Temp:
-20°C to +80 °C
Isolation:
4000 VAC for 1 min. Double/reinforced with a working voltage of 250
VAC. Meets 2 x MOPP per 3rd edition of IEC60601-1 5000
VAC for 10 ms in accordance with IEC60664-1
Worldwide Safety Approvals:
IEC60601-1 Including Risk Management
US Safety Approvals:
ANSI/AAMI ES60601-1 3rd Ed. & CSA C22.2, No.60601-1:2008
EMC:
EN55011 Level A conducted & radiated
CB Certificate
CB Certificate
TUV Certificate
TUV Certificate
UL Report
UL Report
3D Models
JHL03 STEP Model
JHM03-06 IGES Model
