JCP

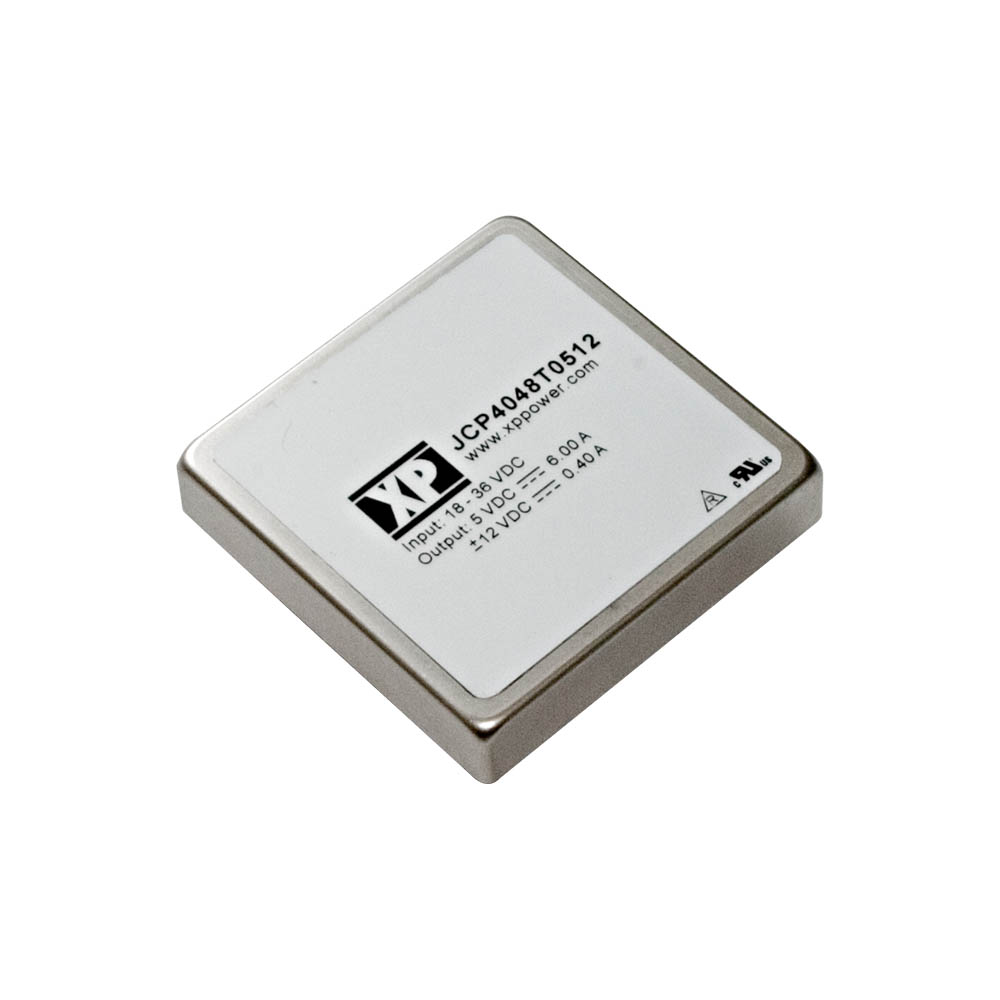

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

40 Watts

  • 2:1 Input Range
  • Single, Dual & Triple Outputs
  • -40 °C to +100 °C Operating Temperature
  • High Efficiency up to 92%
  • Six-sided Metal Case
  • Fixed 350 kHz Switching Frequency
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
JCP4012S2V5 9 to 18 Vdc 2.5 V / 10 A
40W Request Sample Stock Check
JCP4012S3V3 9 to 18 Vdc 3.3 V / 10 A
40W Request Sample Stock Check
JCP4012S05 9 to 18 Vdc 5 V / 8.8 A
40W Request Sample Stock Check
JCP4012S12 9 to 18 Vdc 12 V / 3.33 A
40W Request Sample Stock Check
JCP4012S15 9 to 18 Vdc 15 V / 2.66 A
40W Request Sample Stock Check
JCP4012D12 9 to 18 Vdc 12 V / 1.8 A
-12 V / -1.8 A
40W Request Sample Stock Check
JCP4012D15 9 to 18 Vdc 15 V / 1.4 A
-15 V / -1.4 A
40W Request Sample Stock Check
JCP4012T0312 9 to 18 Vdc 3.3 V / 6 A
12 V / 0.4 A
-12 V / -0.4 A
40W Request Sample Stock Check
JCP4012T0315 9 to 18 Vdc 3.3 V / 6 A
15 V / 0.3 A
-15 V / -0.3 A
40W Request Sample Stock Check
JCP4012T0512 9 to 18 Vdc 5 V / 6 A
12 V / 0.4 A
-12 V / -0.4 A
40W Request Sample Stock Check
JCP4012T0515 9 to 18 Vdc 5 V / 6 A
15 V / 0.3 A
-15 V / -0.3 A
40W Request Sample Stock Check
JCP4024S2V5 18 to 36 Vdc 2.5 V / 10 A
40W Request Sample Stock Check
JCP4024S3V3 18 to 36 Vdc 3.3 V / 10 A
40W Request Sample Stock Check
JCP4024S05 18 to 36 Vdc 5 V / 8.8 A
40W Request Sample Stock Check
JCP4024S12 18 to 36 Vdc 12 V / 3.33 A
40W Request Sample Stock Check
JCP4024S15 18 to 36 Vdc 15 V / 2.66 A
40W Request Sample Stock Check
JCP4024D12 18 to 36 Vdc 12 V / 1.8 A
-12 V / -1.8 A
40W Request Sample Stock Check
JCP4024D15 18 to 36 Vdc 15 V / 1.4 A
-15 V / -1.4 A
40W Request Sample Stock Check
JCP4024T0312 18 to 36 Vdc 3.3 V / 6 A
12 V / 0.4 A
-12 V / -0.4 A
40W Request Sample Stock Check
JCP4024T0315 18 to 36 Vdc 3.3 V / 6 A
15 V / 0.3 A
-15 V / -0.3 A
40W Request Sample Stock Check
JCP4024T0512 18 to 36 Vdc 5 V / 6 A
12 V / 0.4 A
-12 V / -0.4 A
40W Request Sample Stock Check
JCP4024T0515 18 to 36 Vdc 5 V / 6 A
15 V / 0.3 A
-15 V / -0.3 A
40W Request Sample Stock Check
JCP4048S2V5 36 to 75 Vdc 2.5 V / 10 A
40W Request Sample Stock Check
JCP4048S3V3 36 to 75 Vdc 3.3 V / 10 A
40W Request Sample Stock Check
JCP4048S05 36 to 75 Vdc 5 V / 8.8 A
40W Request Sample Stock Check
JCP4048S12 36 to 75 Vdc 12 V / 3.33 A
40W Request Sample Stock Check
JCP4048S15 36 to 75 Vdc 15 V / 2.66 A
40W Request Sample Stock Check
JCP4048D12 36 to 75 Vdc 12 V / 1.8 A
-12 V / -1.8 A
40W Request Sample Stock Check
JCP4048D15 36 to 75 Vdc 15 V / 1.4 A
-15 V / -1.4 A
40W Request Sample Stock Check
JCP4048T0312 36 to 75 Vdc 3.3 V / 6 A
12 V / 0.4 A
-12 V / -0.4 A
40W Request Sample Stock Check
JCP4048T0315 36 to 75 Vdc 3.3 V / 6 A
15 V / 0.3 A
-15 V / -0.3 A
40W Request Sample Stock Check
JCP4048T0512 36 to 75 Vdc 5 V / 6 A
12 V / 0.4 A
-12 V / -0.4 A
40W Request Sample Stock Check
JCP4048T0515 36 to 75 Vdc 5 V / 6 A
15 V / 0.3 A
-15 V / -0.3 A
40W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    JCP: 2.00 x 2.00 x 0.40 in (50.8 x 50.8 x 10.2 mm)
  • Input Voltage:
    12 VDC (9-18 VDC)
    24 VDC (18-36 VDC)
    48 VDC (36-75 VDC)
  • Efficiency:
    87-92%
  • Operating Temp:
    -40 °C to +100 °C, derate from 100% load at +60 °C to 0% load at +100 °C
  • Isolation:
    1500 VDC Input to Output
    1500 VDC Input to Case
    Output return connected to case
  • EMC:
    EN55022 Level A conducted & radiated with external components
