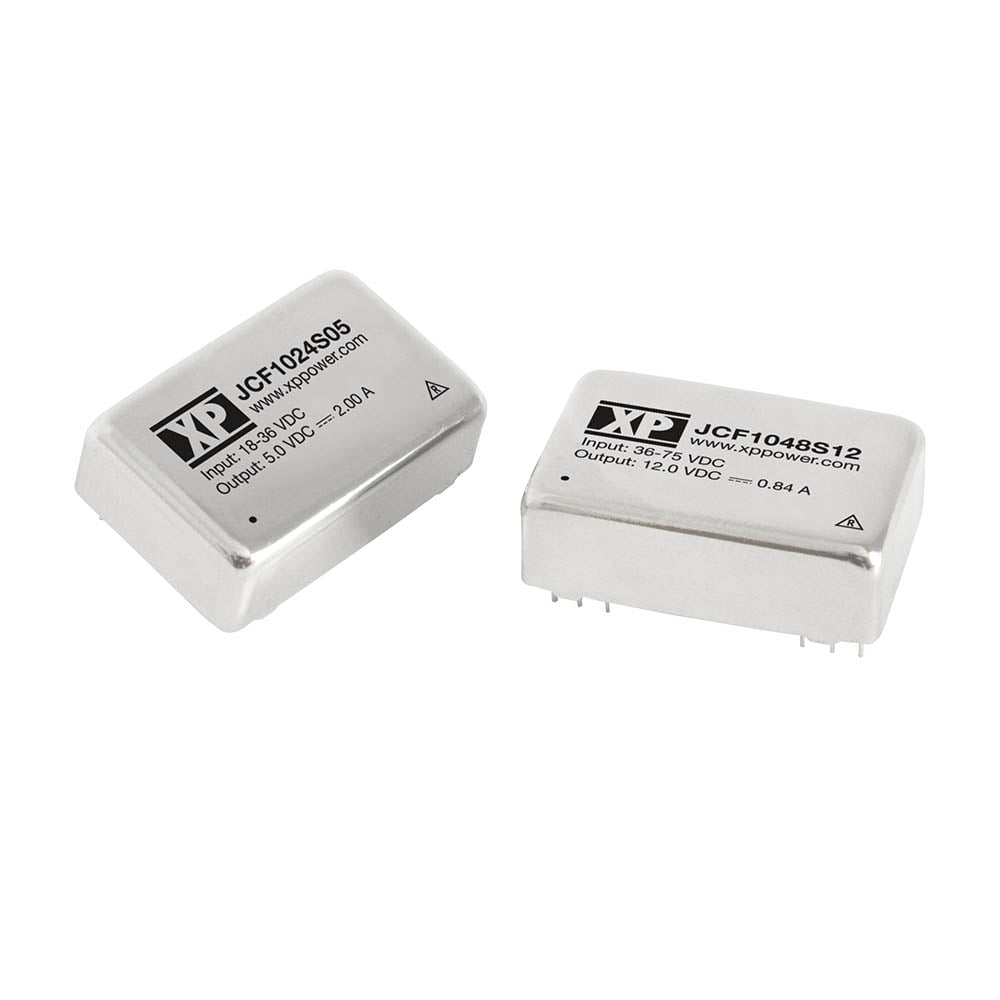

JCF

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

10 Watts

  • 2:1 Input Range
  • DIP 24 Package
  • Operating Temperature -40 °C to +100 °C
  • 1500 VDC Isolation
  • Input Pi Filter
  • Continuous Short Circuit Protection
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
JCF1024S2V5 18 to 36 Vdc 2.5 V / 3 A
10W Request Sample Stock Check
JCF1024S3V3 18 to 36 Vdc 3.3 V / 3 A
10W Request Sample Stock Check
JCF1024S05 18 to 36 Vdc 5 V / 2 A
10W Request Sample Stock Check
JCF1024S12 18 to 36 Vdc 12 V / 0.84 A
10W Request Sample Stock Check
JCF1048S2V5 36 to 75 Vdc 2.5 V / 3 A
10W Request Sample Stock Check
JCF1048S3V3 36 to 75 Vdc 3.3 V / 3 A
10W Request Sample Stock Check
JCF1048S05 36 to 75 Vdc 5 V / 2 A
10W Request Sample Stock Check
JCF1048S12 36 to 75 Vdc 12 V / 0.84 A
10W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    JCF: 1.25 x 0.80 x 0.40 in (31.8 x 20.3 x 10.2 mm)
  • Input Voltage:
    24 V (18-36 VDC)
    48 V (36-75 VDC)
  • Efficiency:
    85-89%
  • Operating Temp:
    -40 °C to +100 °C
  • Isolation:
    1500 VDC min
  • EMC:
    EN55022, Level A conducted & radiated with external components

Declaration of Conformity
