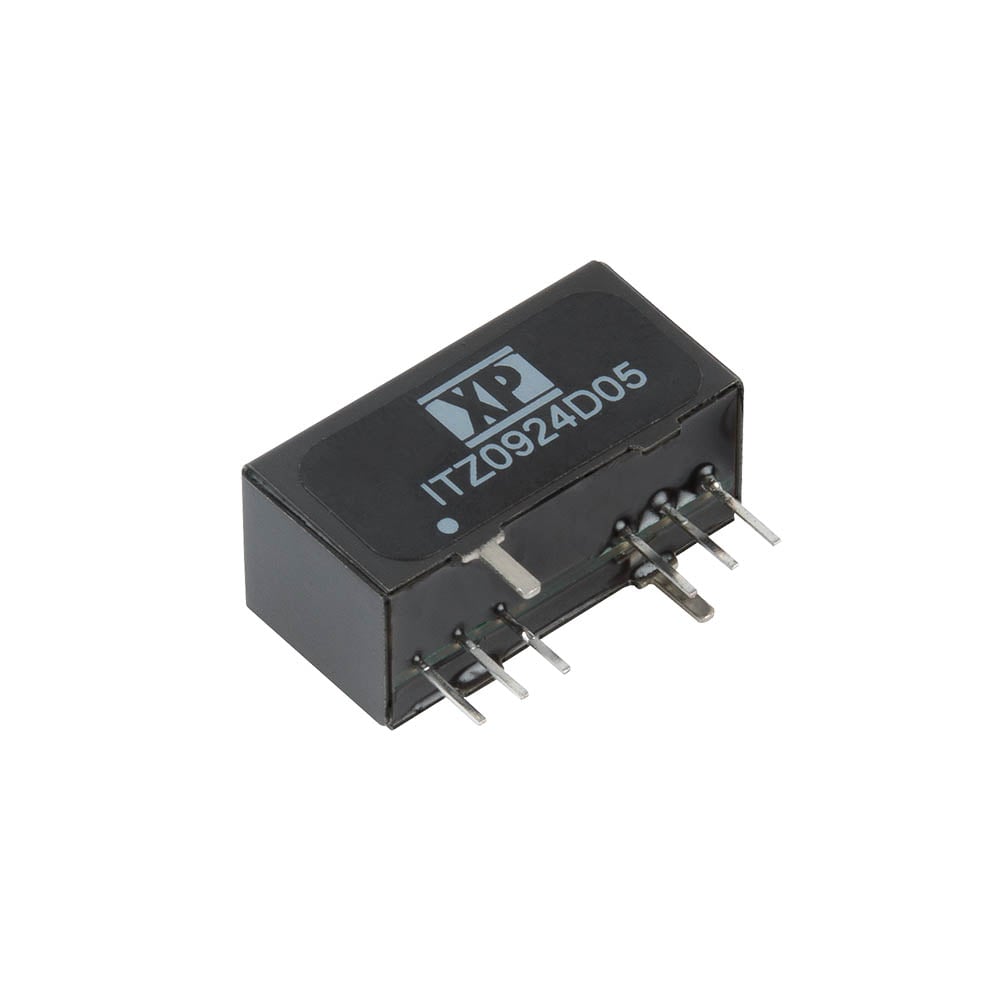

ITZ

+ Click To Enlarge

9 Watts

  • Ultra Compact SIP-8 Package
  • Smallest Footprint 9 W Converter
  • Single & Dual Outputs
  • 4:1 Input Range
  • Operating Temperature -40 °C to +85 °C
  • 1500 VDC Isolation
  • Fully Regulated Output
  • No Minimum Load Required
  • Remote On/Off
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ITZ0924S3V3 9 to 36 V 3.3 V / 2 A
 9 W Request Sample Stock Check
ITZ0924S05 9 to 36 V 5 V / 1.6 A
 9 W Request Sample Stock Check
ITZ0924S09 9 to 36 V 9 V / 1 A
 9 W Request Sample Stock Check
ITZ0924S12 9 to 36 V 12 V / 0.75 A
 9 W Request Sample Stock Check
ITZ0924S15 9 to 36 V 15 V / 0.6 A
 9 W Request Sample Stock Check
ITZ0924S24 9 to 36 V 24 V / 0.375 A
 9 W Request Sample Stock Check
ITZ0924D05 9 to 36 V 5 V / 0.6 A
-5 V / -0.6 A
 9 W Request Sample Stock Check
ITZ0924D12 9 to 36 V 12 V / 0.25 A
-12 V / -0.25 A
 9 W Request Sample Stock Check
ITZ0924D15 9 to 36 V 15 V / 0.2 A
-15 V / -0.2 A
 9 W Request Sample Stock Check
ITZ0948S3V3 18 to 75 V 3.3 V / 2 A
 9 W Request Sample Stock Check
ITZ0948S05 18 to 75 V 5 V / 1.6 A
 9 W Request Sample Stock Check
ITZ0948S09 18 to 75 V 9 V / 1 A
 9 W Request Sample Stock Check
ITZ0948S12 18 to 75 V 12 V / 0.75 A
 9 W Request Sample Stock Check
ITZ0948S15 18 to 75 V 15 V / 0.6 A
 9 W Request Sample Stock Check
ITZ0948S24 18 to 75 V 24 V / 0.375 A
 9 W Request Sample Stock Check
ITZ0948D05 18 to 75 V 5 V / 0.6 A
-5 V / -0.6 A
 9 W Request Sample Stock Check
ITZ0948D12 18 to 75 V 12 V / 0.25 A
-12 V / -0.25 A
 9 W Request Sample Stock Check
ITZ0948D15 18 to 75 V 15 V / 2 A
-15 V / -2 A
 9 W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    ITZ: 0.86 x 0.38 x 0.44” (21.9 x 9.6 x 11.2 mm)
  • Input Voltage:
    9-36 VDC
    18-75 VDC
  • Efficiency:
    88% (see datasheet)
  • Operating Temp:
    -40 °C to +85 °C
    Derate from 100% load at +50 °C to no load at +85 °C for 3V3 output, and 100% load at 60 °C to no load at 85 °C for other models
  • Isolation:
    1500 VDC (3000 VDC option. Add ‘-H’ to model number)
  • EMC:
    Conducted: EN55032, Class A
    Radiated: EN55032, Class A

Declaration of Conformity
