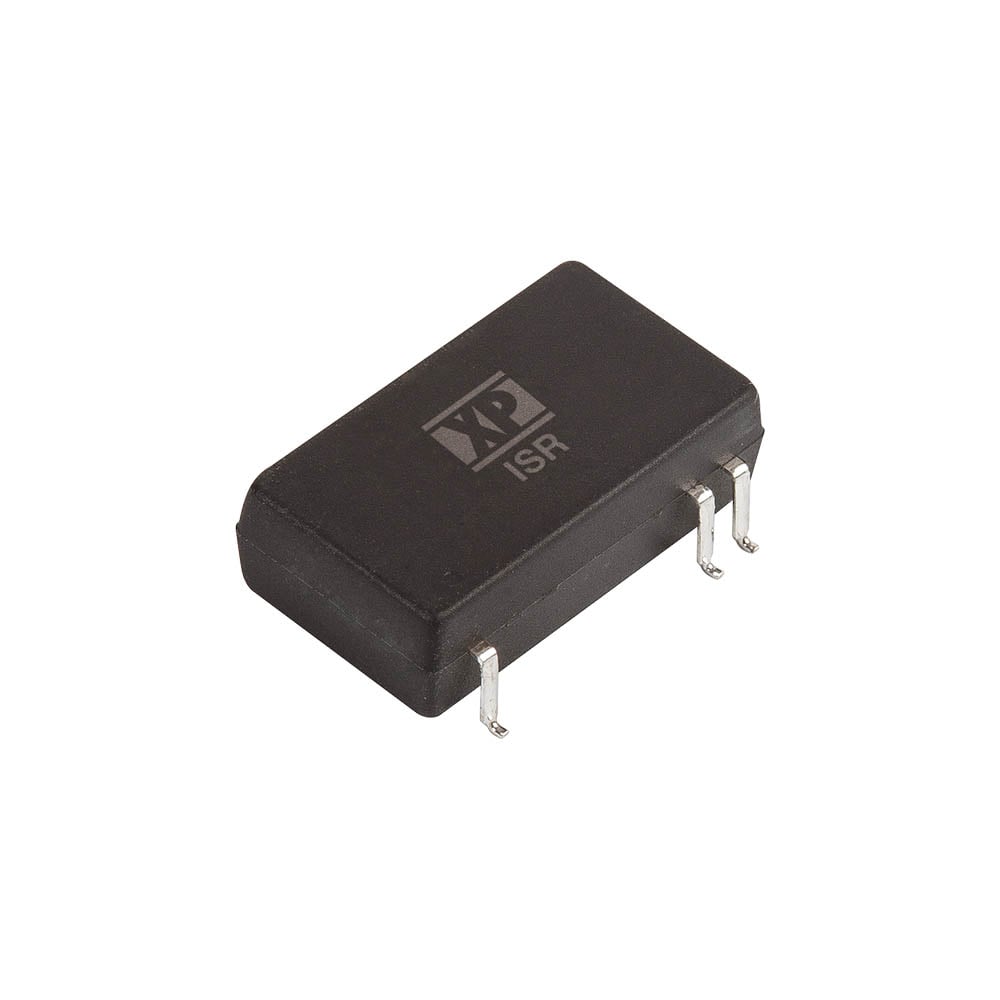

ISR

+ Click To Enlarge

3 Watts

  • Single Output
  • Wide Range 2:1 Input
  • SMD Package
  • Industry Standard Pinout
  • Regulated Output
  • Operating Temperature -40 °C to +95 °C
  • 1500 VDC Isolation, 3000 VDC Option
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ISR1205A 9.0 to 18.0 Vdc 5 V / 0.6 A
 3W Request Sample Stock Check
ISR1212A 9.0 to 18.0 Vdc 12 V / 0.25 A
 3W Request Sample Stock Check
ISR1215A 9.0 to 18.0 Vdc 15 V / 0.2 A
 3W Request Sample Stock Check
ISR2405A 18.0 to 36.0 Vdc 5 V / 0.6 A
 3W Request Sample Stock Check
ISR2412A 18.0 to 36.0 Vdc 12 V / 0.25 A
 3W Request Sample Stock Check
ISR2415A 18.0 to 36.0 Vdc 15 V / 0.2 A
 3W Request Sample Stock Check
ISR4805A 36.0 to 75 Vdc 5 V / 0.6 A
 3W Request Sample Stock Check
ISR4812A 36.0 to 75 Vdc 12 V / 0.25 A
 3W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    ISR: 0.94 x 0.54 x 0.29 in (23.86 x 15.24 x 7.50 mm)
  • Input Voltage:
    9.0-18.0 VDC
    18.0-36.0 VDC
    36.0-75.0 VDC
  • Efficiency:
    75-80%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    1500 VDC minimum

Declaration of Conformity - ISR
