IN

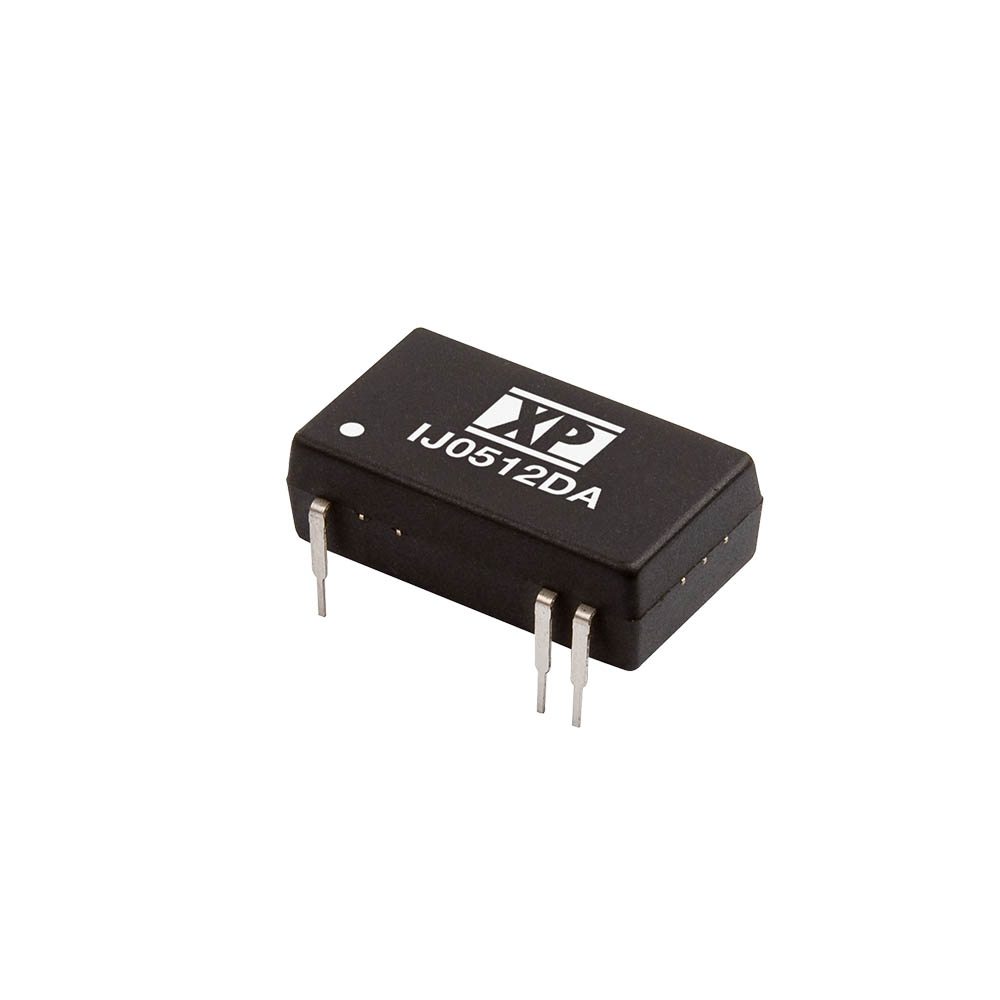

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

1.5 Watts

  • Regulated Dual Output
  • DIP 24 Package
  • 1000 VDC Isolation
  • Optional Isolation Up To 6000 VDC
  • Continuous Short Circuit Protection
  • MTBF >3 MHrs
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
IN0505D 5 Vdc 5 V / 0.15 A
-5 V / -0.15 A
1.5W Request Sample Stock Check
IN0509D 5 Vdc 9 V / 0.084 A
-9 V / -0.084 A
1.5W Request Sample Stock Check
IN0512D 5 Vdc 12 V / 0.063 A
-12 V / -0.063 A
1.5W Request Sample Stock Check
IN0515D 5 Vdc 15 V / 0.05 A
-15 V / -0.05 A
1.5W Request Sample Stock Check
IN0524D 5 Vdc 24 V / 0.032 A
-24 V / -0.032 A
1.5W Request Sample Stock Check
IN1205D 12 Vdc 5 V / 0.15 A
-5 V / -0.15 A
1.5W Request Sample Stock Check
IN1209D 12 Vdc 9 V / 0.084 A
-9 V / -0.084 A
1.5W Request Sample Stock Check
IN1212D 12 Vdc 12 V / 0.063 A
-12 V / -0.063 A
1.5W Request Sample Stock Check
IN1215D 12 Vdc 15 V / 0.05 A
-15 V / -0.05 A
1.5W Request Sample Stock Check
IN1224D 12 Vdc 24 V / 0.032 A
-24 V / -0.032 A
1.5W Request Sample Stock Check
IN2405D 24 Vdc 5 V / 0.15 A
-5 V / -0.15 A
1.5W Request Sample Stock Check
IN2409D 24 Vdc 9 V / 0.084 A
-9 V / -0.084 A
1.5W Request Sample Stock Check
IN2412D 24 Vdc 12 V / 0.063 A
-12 V / -0.063 A
1.5W Request Sample Stock Check
IN2415D 24 Vdc 15 V / 0.05 A
-15 V / -0.05 A
1.5W Request Sample Stock Check
IN2424D 24 Vdc 24 V / 0.032 A
-24 V / -0.032 A
1.5W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    IN: 1.25 x 0.80 x 0.40 in (31.8 x 20.3 x 10.2 mm)
  • Input Voltage:
    Nominal ±10%
  • Efficiency:
    65-78%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    1000 VDC (6000 VDC max)

Declaration of Conformity

Unfortunately there are no 3D models available for this product.
