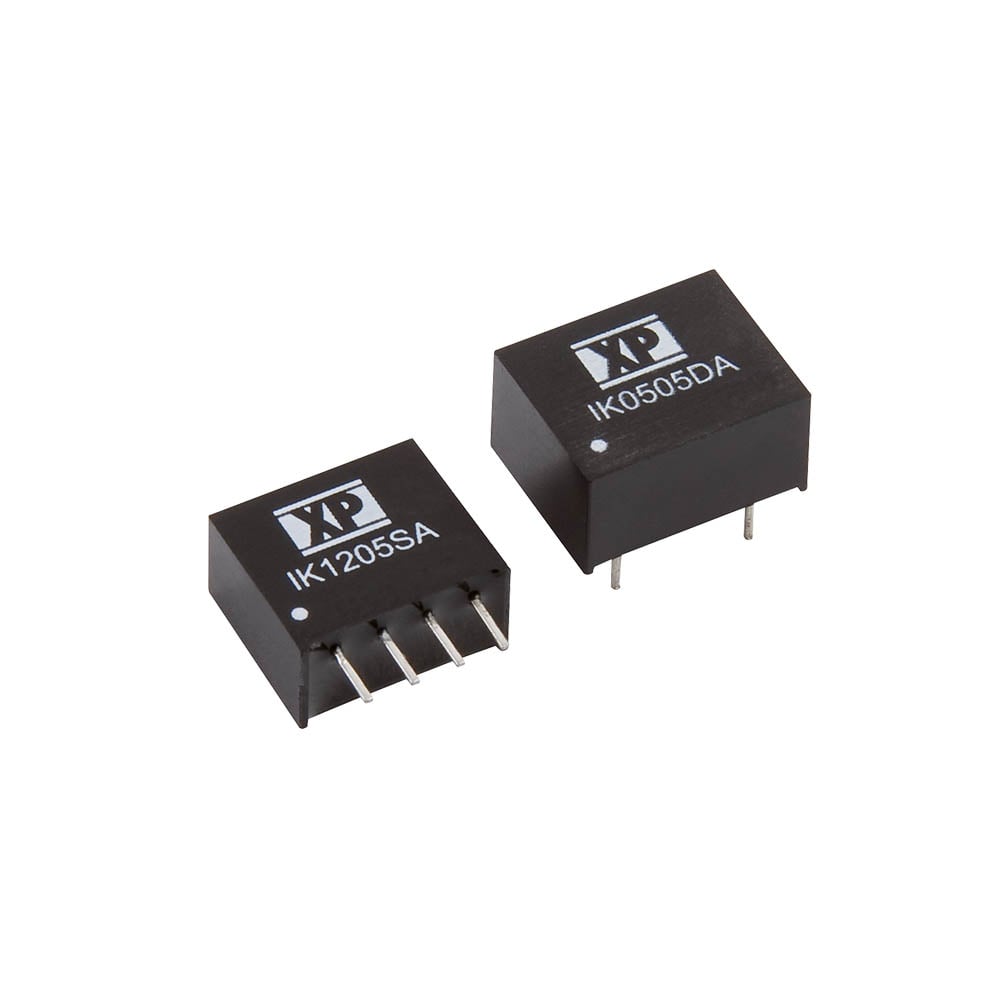

IK

+ Click To Enlarge

0.25 Watts

  • Single Output
  • SIP or DIP Package
  • 1000 VDC Isolation
  • Optional 3000 VDC Isolation
  • Small Package Sizes
  • -40 °C to +85 °C Operation
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
IK0503SA 4.5 to 5.5 Vdc 3.3 V / 0.0757 A
0.25W Request Sample Stock Check
IK0505SA 4.5 to 5.5 Vdc 5 V / 0.05 A
0.25W Request Sample Stock Check
IK0507SA 4.5 to 5.5 Vdc 7.2 V / 0.0347 A
0.25W Request Sample Stock Check
IK0509SA 4.5 to 5.5 Vdc 9 V / 0.0277 A
0.25W Request Sample Stock Check
IK0512SA 4.5 to 5.5 Vdc 12 V / 0.0208 A
0.25W Request Sample Stock Check
IK0515SA 4.5 to 5.5 Vdc 15 V / 0.0166 A
0.25W Request Sample Stock Check
IK0518SA 4.5 to 5.5 Vdc 18 V / 0.0138 A
0.25W Request Sample Stock Check
IK0524SA 4.5 to 5.5 Vdc 24 V / 0.0104 A
0.25W Request Sample Stock Check
IK1203SA 10.8 to 13.2 Vdc 3.3 V / 0.0757 A
0.25W Request Sample Stock Check
IK1205SA 10.8 to 13.2 Vdc 5 V / 0.05 A
0.25W Request Sample Stock Check
IK1207SA 10.8 to 13.2 Vdc 7.2 V / 0.0347 A
0.25W Request Sample Stock Check
IK1209SA 10.8 to 13.2 Vdc 9 V / 0.0277 A
0.25W Request Sample Stock Check
IK1212SA 10.8 to 13.2 Vdc 12 V / 0.0208 A
0.25W Request Sample Stock Check
IK1215SA 10.8 to 13.2 Vdc 15 V / 0.0166 A
0.25W Request Sample Stock Check
IK1218SA 10.8 to 13.2 Vdc 18 V / 0.0138 A
0.25W Request Sample Stock Check
IK1224SA 10.8 to 13.2 Vdc 24 V / 0.0104 A
0.25W Request Sample Stock Check
IK2403SA 21.6 to 26.4 Vdc 3.3 V / 0.0757 A
0.25W Request Sample Stock Check
IK2405SA 21.6 to 26.4 Vdc 5 V / 0.05 A
0.25W Request Sample Stock Check
IK2407SA 21.6 to 26.4 Vdc 7.2 V / 0.0347 A
0.25W Request Sample Stock Check
IK2409SA 21.6 to 26.4 Vdc 9 V / 0.0277 A
0.25W Request Sample Stock Check
IK2412SA 21.6 to 26.4 Vdc 12 V / 0.0208 A
0.25W Request Sample Stock Check
IK2415SA 21.6 to 26.4 Vdc 15 V / 0.0166 A
0.25W Request Sample Stock Check
IK2418SA 21.6 to 26.4 Vdc 18 V / 0.0138 A
0.25W Request Sample Stock Check
IK2424SA 21.6 to 26.4 Vdc 24 V / 0.0104 A
0.25W Request Sample Stock Check
IK4803SA 43.2 to 52.8 Vdc 3.3 V / 0.0757 A
0.25W Request Sample Stock Check
IK4805SA 43.2 to 52.8 Vdc 5 V / 0.05 A
0.25W Request Sample Stock Check
IK4807SA 43.2 to 52.8 Vdc 7.2 V / 0.0347 A
0.25W Request Sample Stock Check
IK4809SA 43.2 to 52.8 Vdc 9 V / 0.0277 A
0.25W Request Sample Stock Check
IK4812SA 43.2 to 52.8 Vdc 12 V / 0.0208 A
0.25W Request Sample Stock Check
IK4815SA 43.2 to 52.8 Vdc 15 V / 0.0166 A
0.25W Request Sample Stock Check
IK4818SA 43.2 to 52.8 Vdc 18 V / 0.0138 A
0.25W Request Sample Stock Check
IK4824SA 43.2 to 52.8 Vdc 24 V / 0.0104 A
0.25W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    IK SIP: 0.46 x 0.4 x 0.24 in (11.68 x 10.15 x 6.0 mm)
    IK DIP: 0.50 x 0.4 x 0.27 in (12.7 x 10.14 x 6.86 mm)
  • Input Voltage:
    Nominal ±10%
  • Efficiency:
    54-70%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    1000 VDC minimum
