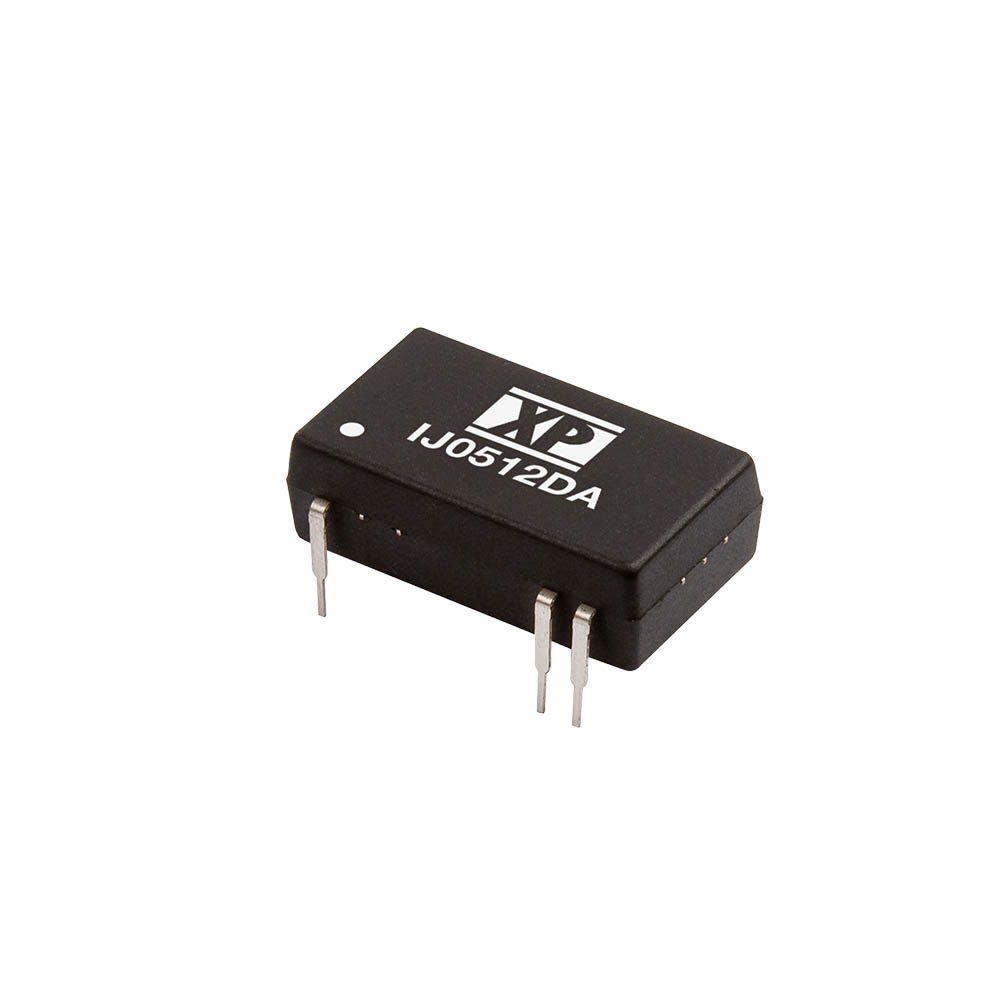

IJ

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

2 Watts

  • Single Output
  • DIP 16 Package
  • Industry Standard Pinout
  • 6000 VDC Isolation
  • -40 °C to +85 °C Operation
  • MTBF >3.5 MHrs
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
IJ0505DA 5 Vdc 5 V / 0.4 A
2W Request Sample Stock Check
IJ0512DA 5 Vdc 12 V / 0.167 A
2W Request Sample Stock Check
IJ1205DA 12 Vdc 5 V / 0.4 A
2W Request Sample Stock Check
IJ1212DA 12 Vdc 12 V / 0.167 A
2W Request Sample Stock Check
IJ1215DA 12 Vdc 15 V / 0.133 A
2W Request Sample Stock Check
IJ2412DA 24 Vdc 12 V / 0.167 A
2W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    IJ: 0.94 x 0.54 x 0.32 in (23.9 x 13.7 x 8.0 mm)
  • Input Voltage:
    Nominal ±10%
  • Efficiency:
    76-80%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    6000 VDC (tested for 1 min)

Declaration of Conformity

Unfortunately there are no 3D models available for this product.
