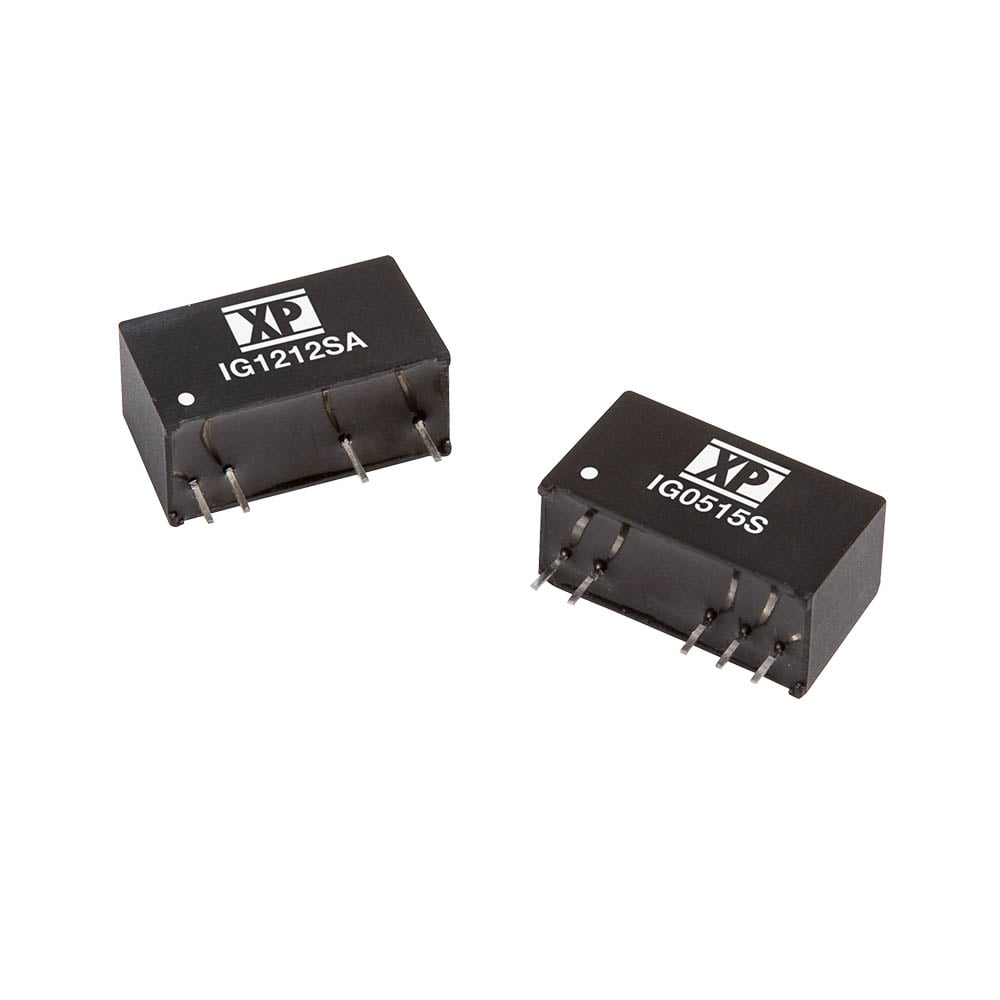

IG

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

2 Watts

  • Single & Dual Output
  • SIP Package
  • Industry Standard Pinout
  • 6000 VDC Isolation
  • -40 °C to +85 °C Operation
  • MTBF >3.5 MHrs
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
IG0505SA 5 Vdc 5 V / 0.4 A
2W Request Sample Stock Check
IG0509SA 5 Vdc 9 V / 0.222 A
2W Request Sample Stock Check
IG0512SA 5 Vdc 12 V / 0.167 A
2W Request Sample Stock Check
IG0515SA 5 Vdc 15 V / 0.133 A
2W Request Sample Stock Check
IG1205SA 12 Vdc 5 V / 0.4 A
2W Request Sample Stock Check
IG1209SA 12 Vdc 9 V / 0.222 A
2W Request Sample Stock Check
IG1212SA 12 Vdc 12 V / 0.167 A
2W Request Sample Stock Check
IG1215SA 12 Vdc 15 V / 0.133 A
2W Request Sample Stock Check
IG2405SA 24 Vdc 5 V / 0.4 A
2W Request Sample Stock Check
IG2409SA 24 Vdc 9 V / 0.222 A
2W Request Sample Stock Check
IG2412SA 24 Vdc 12 V / 0.167 A
2W Request Sample Stock Check
IG2415SA 24 Vdc 15 V / 0.133 A
2W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    IG: 0.77 x 0.49 x 0.38 in (19.5 x 12.5 x 9.8 mm)
  • Input Voltage:
    Nominal ±10%
  • Efficiency:
    74-80%
  • Operating Temp:
    -40 °C to +85 °C
  • Isolation:
    6000 VDC (tested for 1 min)

Declaration of Conformity

Unfortunately there are no 3D models available for this product.
