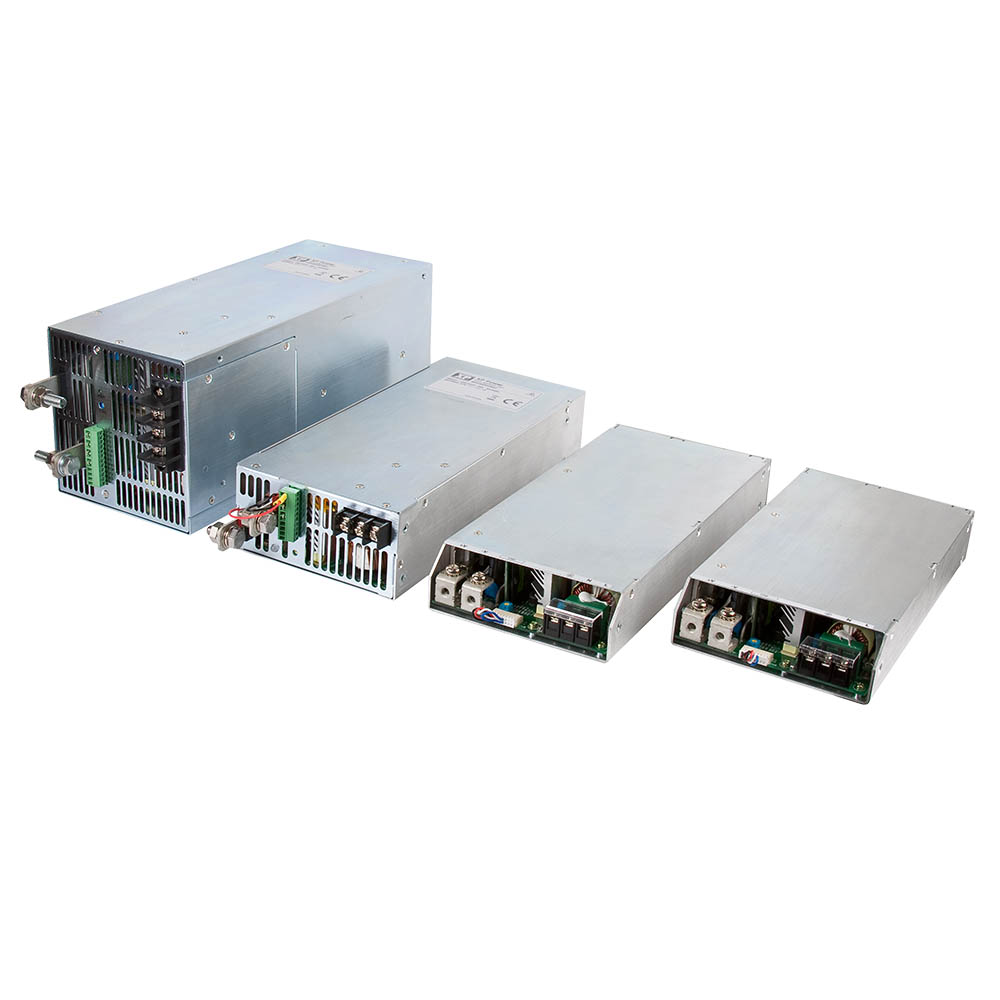

HCP

+ Click To Enlarge

650-3000 Watts

  • High Efficiency up to 91%
  • High Power Density
  • Programmable Output Voltage (30%-105%)
  • Programmable Output Current (40%-105%)
  • Parallel Operation
  • Fully Featured Signals & Controls
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
HCP1000PS12 90 to 264 Vac 12 V / 62 A
1000W Request Sample Stock Check
HCP1000PS15 90 to 264 Vac 15 V / 50 A
1000W Request Sample Stock Check
HCP1000PS24 90 to 264 Vac 24 V / 40 A
1000W Request Sample Stock Check
HCP1000PS27 90 to 264 Vac 27 V / 37 A
1000W Request Sample Stock Check
HCP1000PS48 90 to 264 Vac 48 V / 21 A
1000W Request Sample Stock Check
HCP1500PS12 90 to 264 Vac 12 V / 125 A
1500W Request Sample Stock Check
HCP1500PS15 90 to 264 Vac 15 V / 100 A
1500W Request Sample Stock Check
HCP1500PS24 90 to 264 Vac 24 V / 62.5 A
1500W Request Sample Stock Check
HCP1500PS27 90 to 264 Vac 27 V / 55.5 A
1500W Request Sample Stock Check
HCP1500PS48 90 to 264 Vac 48 V / 31.3 A
1500W Request Sample Stock Check
HCP3000PS12 90 to 264 Vac 12 V / 250 A
3000W Request Sample Stock Check
HCP3000PS15 90 to 264 Vac 15 V / 200 A
3000W Request Sample Stock Check
HCP3000PS24 90 to 264 Vac 24 V / 125 A
3000W Request Sample Stock Check
HCP3000PS27 90 to 264 Vac 27 V / 111.1 A
3000W Request Sample Stock Check
HCP3000PS48 90 to 264 Vac 48 V / 62.5 A
3000W Request Sample Stock Check
HCP650PS05 90 to 264 Vac 5 V / 100 A
650W Request Sample Stock Check
HCP650PS12 90 to 264 Vac 12 V / 50 A
650W Request Sample Stock Check
HCP650PS15 90 to 264 Vac 15 V / 40 A
650W Request Sample Stock Check
HCP650PS24 90 to 264 Vac 24 V / 27 A
650W Request Sample Stock Check
HCP650PS27 90 to 264 Vac 27 V / 24 A
650W Request Sample Stock Check
HCP650PS48 90 to 264 Vac 48 V / 13.6 A
650W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    HCP650: 9.80 x 5.00 x 1.61 in (249.0 x 127.0 x 40.9 mm)
    HCP1000: 11.14 x 5.00 x 1.61 in (283.0 x 127.0 x 40.9 mm)
    HCP1500: 12.31 x 5.00 x 2.50 in (312.7 x 127.0 x 63.5 mm)
    HCP1500: 13.39 x 5.00 x 5.00 in (340.0 x 127.0 x 127.0 mm)
  • Input Voltage:
    90-264 VAC (127-370 VDC)
  • Harmonic Currents:
    EN61000-3-2 class A
    650 & 1000 W: EN61000-3-2 class C for loads ?10%
    1500 W: EN61000-3-2 class C for loads ?40%
    3000 W: EN61000-3-2 class C for loads ?30%
  • Efficiency:
    83-91%
  • Operating Temp:
    -25 ?C to 60 ?C, see datasheet
  • Isolation:
    3000 VAC Input to Output
    1500 VAC Input to Ground
    500 VDC Output to Ground
  • European Safety Approvals:
    EN60950-1
  • US Safety Approvals:
    UL60950-1, CSA C22.2 No. 60950-1 (650 W/1000 W only)
  • EMC:
    EN55022 class B conducted & radiated

UL Certificate

Declaration of Conformity - HCP650

Declaration of Conformity - HCP1000

Declaration of Conformity - HCP1500

Declaration of Conformity - HCP650 -1500

TUV Certificate

TUV Certificate - HCP650

TUV Certificate - HCP1000

TUV Certificate - HCP1500-3000

CB Certificate

CB Certificate - HCP650

CB Certificate - HCP1000

CB Certificate - HCP1500-3000
