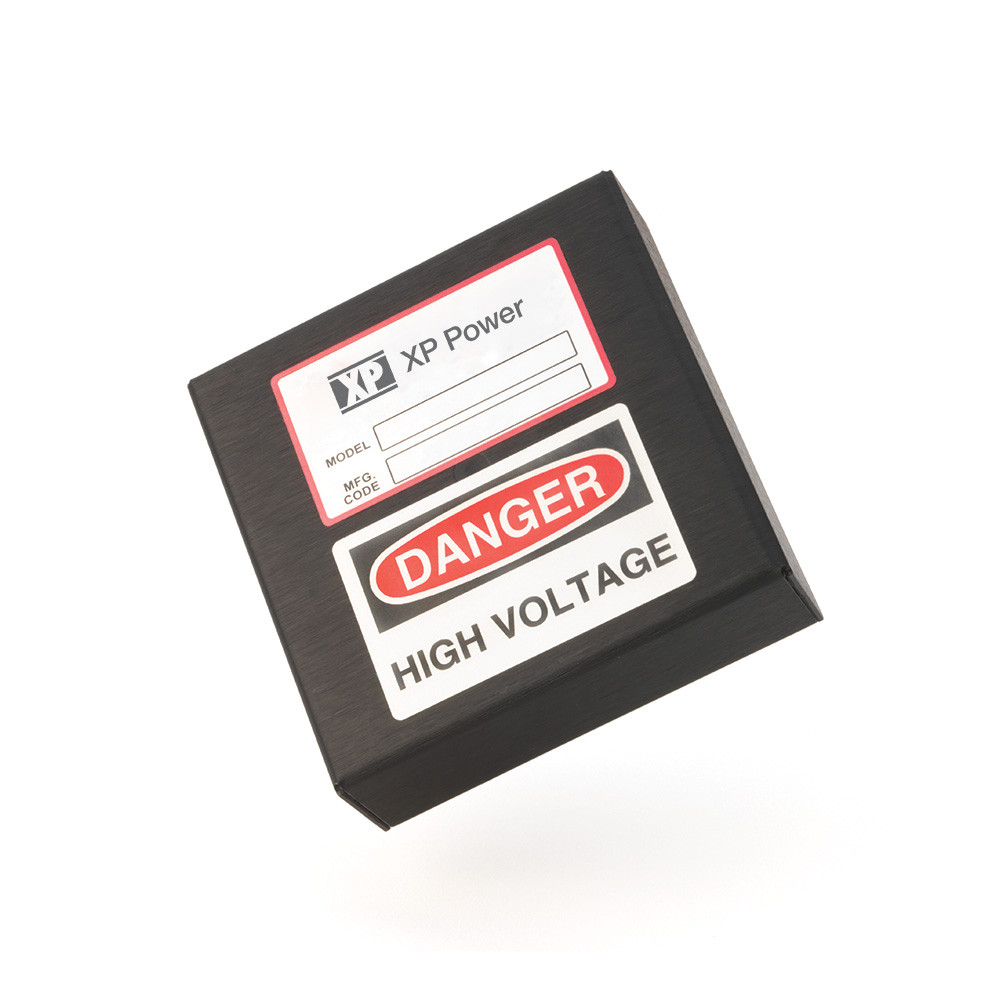

H

+ Click To Enlarge

Not recommended for new design-in

×

Not recommended for new design-in

This series is still available for purchase, however there are now alternative products that may better suit your requirements.

15 Watts

  • High Voltage DC - DC Converter
  • 0 to 100% Programmability
  • Output Voltage Monitor
  • Reverse Polarity Protection
  • Arc Protection
  • Low EMI / RFI
  • MTBF:>790K hours per Bellcore TR-332
  • UL Certified Encapsulant, Meets 94V-0 Flammability
  • • RoHS Compliant
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
H03P 24 Vdc 0 to +300 V / 0.05 A
15W Request Sample Stock Check
H03N 24 Vdc 0 to -300 V / 0.05 A
15W Request Sample Stock Check
H05P 24 Vdc 0 to +500 V / 0.03 A
15W Request Sample Stock Check
H05N 24 Vdc 0 to -500 V / 0.03 A
15W Request Sample Stock Check
H10P 24 Vdc 0 to +1000 V / 0.015 A
15W Request Sample Stock Check
H10N 24 Vdc 0 to -1000 V / 0.015 A
15W Request Sample Stock Check
H15P 24 Vdc 0 to +1500 V / 0.01 A
15W Request Sample Stock Check
H15N 24 Vdc 0 to -1500 V / 0.01 A
15W Request Sample Stock Check
H20P 24 Vdc 0 to +2000 V / 0.0075 A
15W Request Sample Stock Check
H20N 24 Vdc 0 to -2000 V / 0.0075 A
15W Request Sample Stock Check
H30P 24 Vdc 0 to +3000 V / 0.005 A
15W Request Sample Stock Check
H30N 24 Vdc 0 to -3000 V / 0.005 A
15W Request Sample Stock Check
H40P 24 Vdc 0 to +4000 V / 0.00375 A
15W Request Sample Stock Check
H40N 24 Vdc 0 to -4000 V / 0.00375 A
15W Request Sample Stock Check
H50P 24 Vdc 0 to +5000 V / 0.003 A
15W Request Sample Stock Check
H50N 24 Vdc 0 to -5000 V / 0.003 A
15W Request Sample Stock Check
H60P 24 Vdc 0 to +6000 V / 0.0025 A
15W Request Sample Stock Check
H60N 24 Vdc 0 to -6000 V / 0.0025 A
15W Request Sample Stock Check
H101P 24 Vdc 0 to +10000 V / 0.0015 A
15W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    H Series: 3.0 x 3.0 x 0.9 " (76.2 x 76.2 x 22.9 mm)
