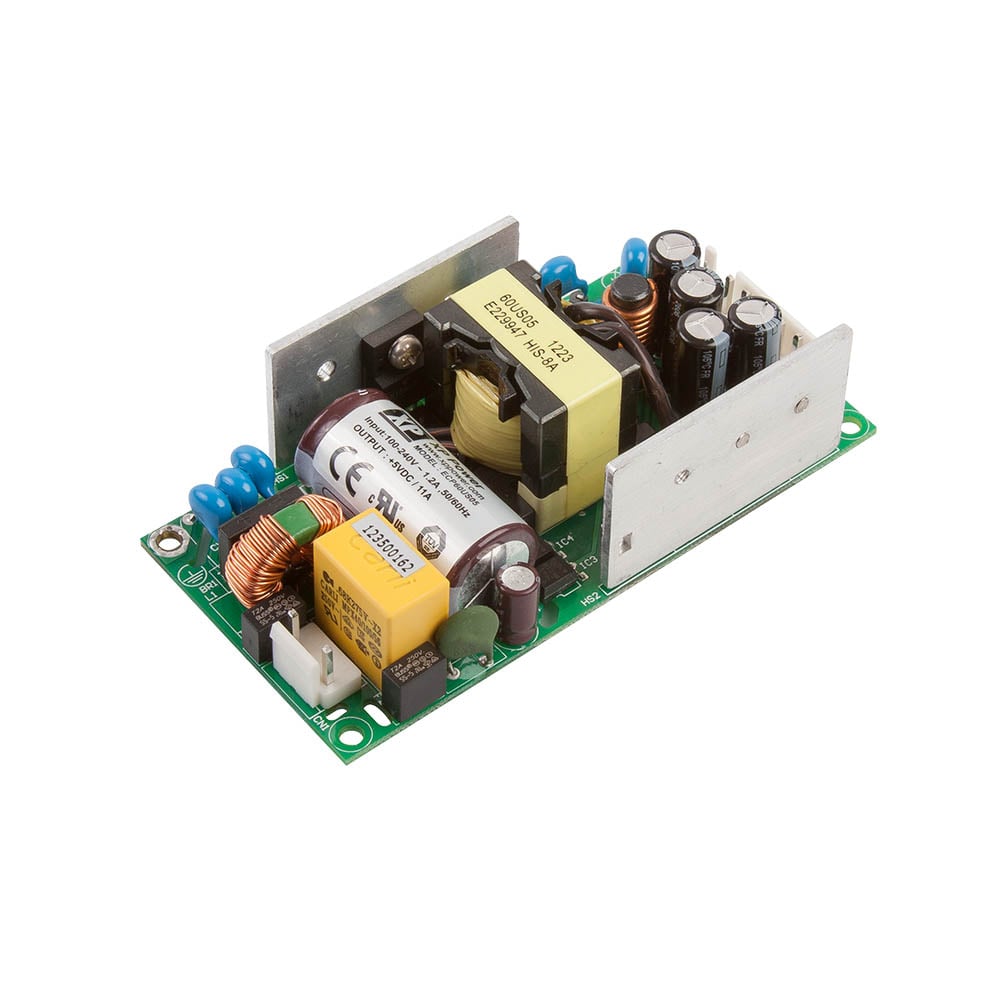

ECP60

+ Click To Enlarge

60 Watts

  • Low Profile Design
  • Compact Size, 4”x 2”
  • IT & Medical Approvals
  • Single, Dual and Triple Output
  • <0.5 W No Load Input Power
  • Peak Load Capability
  • 3 Year Warranty
  • Models
  • Datasheets
  • Specifications
  • Approval Documents
  • 3D Models
Model Name Input Output Power
ECP60UD01 85 to 264 Vac 5 V / 7 A
12 V / 3 A
60W Request Sample Stock Check
ECP60UD02 85 to 264 Vac 5 V / 7 A
15 V / 2 A
60W Request Sample Stock Check
ECP60UD03 85 to 264 Vac 5 V / 7 A
24 V / 1.5 A
60W Request Sample Stock Check
ECP60US05 85 to 264 Vac 5 V / 11 A
60W Request Sample Stock Check
ECP60UT01 85 to 264 Vac 5 V / 7 A
12 V / 3 A
-12 V / 0.3 A
60W Request Sample Stock Check
ECP60UT02 85 to 264 Vac 5 V / 7 A
15 V / 2 A
-15 V / 0.3 A
60W Request Sample Stock Check
ECP60UT03 85 to 264 Vac 5 V / 7 A
24 V / 1.5 A
12 V / 0.3 A
60W Request Sample Stock Check
ECP65UT04 85 to 264 Vac 5 V / 7 A
24 V / 1.5 A
-12 V / 0.3 A
60W Request Sample Stock Check

Short Form Datasheet

  • Dimensions:
    ECP60: 4.00 x 2.00 x 1.20 in (101.6 x 50.8 x 30.4 mm)
  • Input Voltage:
    85-264 VAC, derate from 100% load at 90 VAC to 90% load at 85 VAC
  • No Load Input Power:
    <0.5 W
  • Harmonic Currents:
    EN61000-3-2, class A
  • Efficiency:
    88% typical
  • Operating Temp:
    -20 °C to +70 °C, derate from 100% load at 50 °C to 50% load at 70 °C
  • Isolation:
    4000 VAC Input to Output
    1500 VAC Input to Ground
    500 VDC Output to Ground
  • Worldwide Safety Approvals:
    IEC60950-1, IEC60601-1
  • European Safety Approvals:
    EN60950-1, EN60601-1
  • US Safety Approvals:
    cUL60950-1, ANSI/AAMI ES60601-1, CSA22.2 No.60601-1 Including Risk Management
  • EMC:
    EN55011/22, level B conducted & level A radiated
